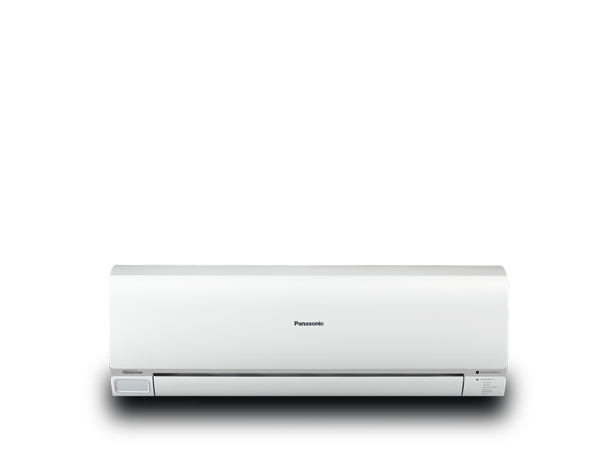

4.4kW ECONAVI Reverse Cycle Inverter Air Conditioner
| General | Indoor Unit | CS-E15PKR |
|---|---|---|
| Outdoor Unit | CU-E15PKR | |
| Function | Cooling + Heating | |
| PERFORMANCE | Cooling Capacity Rated Conditions (kW) | 4.40 |
| Cooling Capacity Range - Min ~ Max (kW) | 0.90 ~ 5.00 | |
| EER (w/w) | 3.67 | |
| Heating Capacity Rated Conditions (kW) | 5.5 | |
| Heating Capacity Range - Min ~ Max (kW) | 0.90 ~ 7.10 | |
| COP (w/w) | 3.74 | |
| Star Rating - Cool / Heat | 2.5 / 2.5 | |
| SPECIFICATIONS | Electrical Voltage (V) | 240 |
| Running Current - Cool / Heat (A) | 5.4 / 6.5 | |
| Power Input - Cool / Heat (kW) | 1.20 / 1.47 | |
| Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)) | 47 / 30 / 23 | |
| Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)) | 45 / 31 / 27 | |
| Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)) | 46 / 41 | |
| Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)) | 46 / 41 | |
| Sound Power Outdoor - Cool - Hi / S-Lo (dB) | 62 / 57 | |
| Sound Power Outdoor - Heat - Hi / S-Lo (dB) | 62 / 57 | |
| Quiet Mode - Indoor (dB) | 23 | |
| Quiet Mode - Outdoor (dB) | 41 | |
| Dehumidify (L/h) | 2.4 | |
| Air Flow - Cool / Heat (L/s) | 247 / 243 | |
| Indoor Dimensions - H x W x D (mm) | 290 x 870 x 214 | |
| Outdoor Dimensions - H x W x D (mm) | 795 x 875 x 320 | |
| Weight - Indoor (kg) | 9 | |
| Weight - Outdoor (kg) | 51 | |
| Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm) | 6.35 / 12.70 | |
| Piping Extension Length Min ~ Max (m) | 3 ~ 20 | |
| Pipe Length for Additional Gas (m) | 7.5 | |
| Additional Refrigerant (R410A) (g/m) | 20 | |
| Power Supply | Outdoor | |
| Operating Temperature Range - Outdoor - Cooling (˚C) | 5 ~ 46 | |
| Operating Temperature Range - Outdoor - Heating (˚C) | -15 ~ 24 | |
| Warranty - Residential | 5 Years Manufacturer's Warranty | |
| FEATURES - Healthier Air | Nonoe-g Air Purifying System | Yes |
| Anti Bacterial Air Filter | - | |
| Odour Removing Function | Yes | |
| Removable, Washable Panel | Yes | |
| FEATURES - Comfort | ECONAVI | Yes |
| AUTOCOMFORT | Yes | |
| Inverter Control | Yes | |
| Mild Dry Cooling | Yes | |
| Powerful Mode | Yes | |
| Economy Mode | - | |
| Heating Operation Lower Limit (o C) | -15 | |
| Cooling Operation Higher Limit (o C) | 46 | |
| Soft Dry Operation Mode | Yes | |
| Fan Mode | Yes | |
| Remote Airflow Control (All directions) | Yes | |
| Remote Airflow control (Up & Down) | - | |
| Manual Horizontal Airflow Direction Control | - | |
| Auto Changeover - Inverter | Yes | |
| Automatic Operation Mode | - | |
| Hot Start Control | Yes | |
| FEATURES - Convenience | 24-hour Dual On / Off Real Setting Timer | Yes |
| 12-hour On / Off Timer | - | |
| Demand Response Compatible | Yes | |
| 3rd Party Connectivity | Yes | |
| LCD Wireless Remote Controller | Large | |
| Wired Remote Controller | Optional | |
| FEATURES - Reliability | Blue Fin Condenser | Yes |
| Random Auto Restart | Yes | |
| Long Piping (m) | 20 | |
| Top-panel Maintenance Access | Yes | |
| Self Diagnostic Function | Yes |
