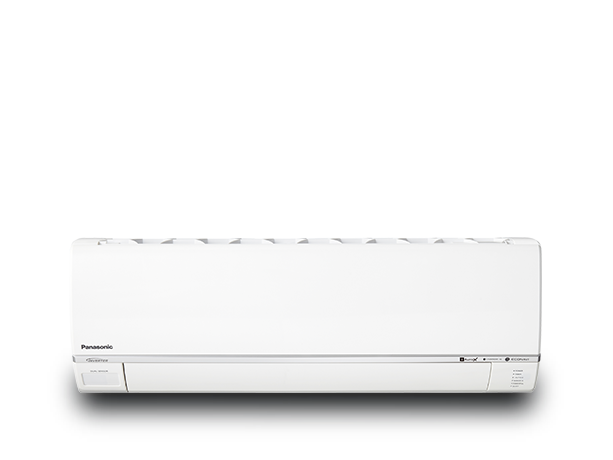

Photo of 4.2kW ECONAVI Reverse Cycle Inverter Air Conditioner CS/CU-Z15RKR

4.2kW ECONAVI Reverse Cycle Inverter Air Conditioner CS/CU-Z15RKR

Indoor Unit CS-Z15RKR
Outdoor Unit CU-Z15RKR
Function Cooling + Heating
PERFORMANCE Cooling Capacity Rated Conditions (kW) 4.20
Cooling Capacity Range - Min ~ Max (kW) 0.90 ~ 5.00
EER 3.93
AEER 3.88
Heating Capacity Rated Conditions (kW) 5.50
Heating Capacity Range - Min ~ Max (kW) 0.90 ~ 5.60
COP 3.74
ACOP 3.71
Star Rating - Cool / Heat 3.0 / 2.5
SPECIFICATIONS Electrical Voltage (V) 240
Running Current - Cool / Heat (A) 4.6 / 6.3
Power Input - Cool / Heat (kW) 1.07 / 1.47
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)) 47 / 30 / 23
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)) 45 / 31 / 27
Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)) 47 / 42
Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)) 47 / 42
Sound Power Outdoor - Cool - Hi / S-Lo (dB) 62 / 57
Sound Power Outdoor - Heat - Hi / S-Lo (dB) 62 / 57
Quiet Mode - Indoor (dB) 23
Quiet Mode - Outdoor (dB) 42
Dehumidify (L/h) 2.4
Air Flow - Cool / Heat (L/s) 248 / 245
Indoor Dimensions - H x W x D (mm) 296 x 870 x 236
Outdoor Dimensions - H x W x D (mm) 695 x 875 x 320
Weight - Indoor (kg) 9
Weight - Outdoor (kg) 46
Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm) 6.35 / 12.70
Piping Extension Length Min ~ Max (m) 3 ~ 30
Pipe Length for Additional Gas (m) 7.5
Additional Refrigerant (R32) (g/m) 20
Power Supply Outdoor
Operating Temperature Range - Outdoor - Cooling (˚C) 5 ~ 46
Operating Temperature Range - Outdoor - Heating (˚C) -15 ~ 24
Refrigerant Type R32
Warranty - Residential 5 Years Manufacturer's Warranty
FEATURES - ENERGY SAVINGS ECONAVI Yes
Economy Mode -
Inverter Control Yes
P-TECh Compressor Yes
FEATURES - CLEANER AIR nanoe-G Air Purifying System Yes
Anti Bacterial Air Filter -
Odour Removing Function Yes
Removable, Washable Panel Yes
FEATURES - COMFORT iAUTO-X Yes
Aerowings Yes
Mild Dry Cooling Yes
Powerful Mode Yes
Quiet Mode Yes
Soft Dry Operation Mode Yes
Fan Mode Yes
Remote Airflow Control (All Directions) Yes
Remote Airflow control (Up & Down) -
Auto Changeover Yes
Hot Start Control Yes
Cooling Operation Higher Limit (˚C) 46
Heating Operation Lower Limit (˚C) -15
FEATURES - CONVENIENCE 24-hour Dual On / Off Real Setting Timer Yes
Demand Response Enabling Device (DRED) Yes
3rd Party Connectivity Yes
LCD Wireless Remote Controller Large
Wired Remote Controller Optional
FEATURES - RELIABILITY Blue Fin Condenser Yes
Random Auto Restart Yes
Long Piping (m) 30
Top-panel Maintenance Access Yes
Self Diagnostic Function Yes
