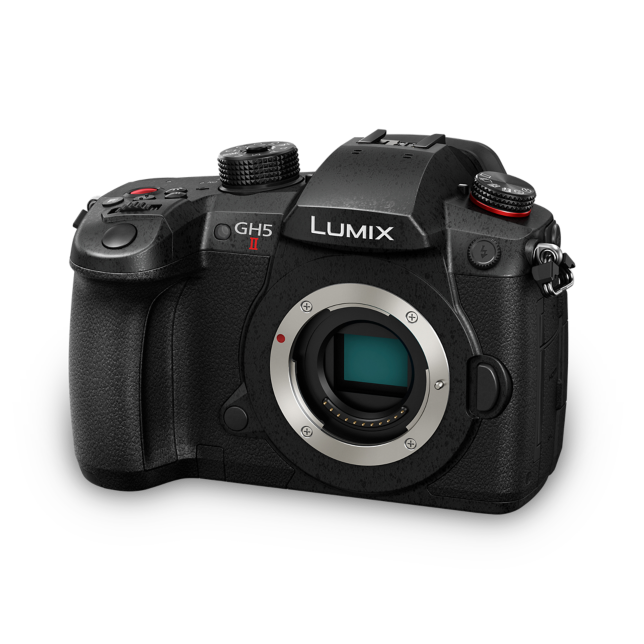

LUMIX GH5M2 kaamera DC-GH5M2

DC-GH5M2

Vabastage oma loovus. Minge otse-eetrisse.

Otsevoogesituse ja C4K 60p/50p 10-bitise video jäädvustamise võimekusega hübriidkaamera.

DC-GH5M2

Funktsioonid

Ideaalne tööriist videote loomiseks

LUMIX GH5M2 on hübriidkaamera, mis vastab kõigi loojate vajadustele. Voogesitusest kättetoimetamisvalmis jäädvustamise ja täiustatud järeltöötlemiseks sobiva 12 stopiga dünaamilise vahemiku V-Log L-salvestamiseni. C4K/4K 60p/50p 4:2:0 10-bitise ja C4K/4K 30p/25p/24p 4:2:2 10-bitise ALL-Intra 400 Mbps salvestamisega pakutakse piiramatut salvestusaega kõigis seadistustes.

* Seade toetab samaaegset sisemist salvestamist ja HDMI reaalajas väljutamist ning mõlemat seejuures 10-bitisena.
* Tingimusel, et kaamera on keskkonnas, kus seadme töö on garanteeritud. Salvestusaeg oleneb aku ja SD-mälukaardi mahutavusest. Kaamera kaitsmiseks võib salvestamine C4K/4K 60p/50p 10-bitises ja anamorfrežiimis ootamatult seiskuda.

Eelinstallitud V-Log L

Mudelil LUMIX GH5M2 on lai 12 stopiga dünaamiline ulatus koos eelinstallitud V-Log L-iga, samas kui värvigradeerijad saavad kasutada samu LUT-e, mida nad kasutasid V-Logiga.

V-Logi/V-Gamuti ja LUTid
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html

USB-toide / USB-laadimine

Pikkade võtete ajal nii stuudios kui ka mujal käepärane lahendus võimaldab teil varustada kaamerat vooluga. Kui seda kasutatakse koos eraldi müüdava akulaadijaga DMW-BTC15 (ühildub USB vooluvarustuse standardiga), saab seda laadida ja tagada samas toide.

*Funktsiooni toimimiseks peab aku olema kaamerasse paigaldatud ja säilitama osa laengust.

Valitavad juhtmeta otsevoogesitusviisid

Juhtmeta otsevoogesitus / USB-jagamine (RTMP/RTMPS)

Lihtne juhtmeta reaalajas voogesitus (protokoll RTMP/RTMPS), seadistades selle lihtsalt LUMIX Sync rakendusega (Android/iOS). Püsivara versioon 1.1 lisab USB-lõastamise funktsiooni, mis võimaldab ühendada kaamera USB-kaabel kaudu nutitelefoniga otseülekandeks. See muudab stabiilse sidekiiruse tagamise lihtsamaks isegi suurte raadiohäiretega keskkondades ja võimaldab voogesitust 4K 30p/25p.

･Põhimõtteliselt on võimalik otsevoogesitus RTMP-/RTMPS-ga ühilduvatele platvormidele (ühilduvust kõigi platvormidega pole võimalik garanteerida). Eksisteerivad olukorrad, kus otsevoogesitus pole platvormi teenuse muutmise ajal võimalikud. Lisateavet leiate platvormi tingimustest.
･Kuna reaalajas voogesituse edastuskiirus oleneb veebikeskkonnast, nutitelefoni jõudlusest jms, soovitame teil edastust eelnevalt testida.
･Android ja Google Play on ettevõtte Google Inc. registreeritud kaubamärgid või kaubamärgid.
･IOS on ettevõtte Cisco kaubamärk või registreeritud kaubamärk USAs ja teistes riikides ning seda kasutatakse litsentsi alusel.

Juhtmeta otsevoogesitus / USB-jagamine (RTMP/RTMPS)

Juhtmega otsevoogesitus (RTP/RTSP)

Püsivara versioon 1.1 saab valida IP voogedastuse juhtmega LAN-ühenduse kaudu, suurendades mugavust siseruumides, kus on võimalik väga stabiilne side. Kaamera ühendamisel arvutiga traadiga LAN-kaabli abil on võimalik juhtida mitut kaamerat või voogesitada kvaliteetset videot ja heli kuni 4K 60p/50p. Valida saab H.264 ja H.265 koodekeid.

*DC-GH5M2 USB Type C-terminali LAN-terminaliks teisendamiseks on vaja kaubanduses saada olevat USB-etherneti-adapterit. USB-etherneti-adapteri ühilduvused: https://panasonic.jp/support/global/cs/dsc/connect/ethernet_adp/index.html

Manuel d'utilisation

AR-kattekihiga täiustatud 20,3-megapiksline MOS-andur

AR (helgivastane) kattekiht vähendab efektiivselt helki ja jäädvustab valgust selle loomulikul kujul ka kõige raskemates, tugevast valgusest ümbritsetud võttetingimustes, saades nii videote kui ka fotode puhul tulemuseks kõrge kvaliteediga visuaalse ilu.

AI-tehnoloogiaga automaatteravustamine

Seadmel on suure kiiruse ja täpsusega automaatteravustamine ning süvaõppetehnoloogia inimeste nägude, silmade, peade ja kehade äratundmiseks; samuti suudab seade tunda ära loomi.

6,5-stopiga Dual I.S. 2 (pildistabilisaator)

5-teljelise Dual I.S. 2 (pildistabilisaator) ühendab endas Body I.S. ja Lens O.I.S. ja pakub 6,5 stopi väärilist korrektsiooni.*

*Põhineb CIPA standardil [horisontaalne/vertikaalne suund: fookuskaugus f=140 mm (35 mm kaamera ekvivalent f = 280 mm), kui kasutatakse mudelit LUMIX H-FS14140.

6,5-stopiga Dual I.S. 2 (pildistabilisaator)

Inspiratsioon

Tehnilised andmed

Suurus ja kaal

Kõrgus: 98.1mm

Laius: 138.5mm

Sügavus: 87.4mm

Kaal: 727g

Kõik väärtused on ligikaudsed. Kaal koos SD-kaardi ja akuga. Ei sisalda objektiivi. Mõõtmed ei sisalda eenduvaid osi.

Micro Four Thirds süsteem standardina
20,3 megapikslit
4K-video jäädvustamise võimekus
V-Log L
5-teljeline Dual I.S. 2 (pildistabilisaator)
Otsevoogesitus
Wi-Fi
Bluetooth
1,84 miljoni punktiga vabalt pööratav ekraan
3,68 miljoni piksline OLED reaalajas töötav pildinäidik
Pritsme-, tolmu- ja külmumiskindel
HEVC Advance

20,3-megapiksline AR-kattekihiga digitaalne reaalajas töötav MOS-andur

C4K/4K 60p/50p 10-bitine sisemine/väline samaaegne salvestamine

C4K/4K 30p/25p/24p 4:2:2 10-bitine video, V-Log L ja piiramatu jäädvustusaeg

Juhtmeta otsevoogesitus

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- Micro Four Thirds mount

IMAGE SENSOR

Type
- Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels
- 20.33 megapixels / 21.77 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 4:3 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

12 stops (V-Log L)

STILL IMAGE

Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW
- 6K PHOTO (*¹) / 4K PHOTO (*¹)
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
- 4:3
  - 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO)
- 3:2
  - 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO)
- 16:9
  - 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
- 1:1
  - 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 2880x2880(4K PHOTO)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / Pixel by Pixel
MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz [C4K] 4096x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [4K] 3840x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [C4K] 4096x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [4K] 3840x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [C4K] 4096x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [4K] 3840x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [Anamorphic 6K] 4992x3744 (4:3)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [FHD] 1920x1080
  - 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4 (*¹)
- 59.94Hz [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz -
  - -

VARIABLE FRAME RATE

MOV (*¹) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
- 50.00Hz [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

STREAMING

Wi-Fi
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set.
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
Wired LAN (*⁴)
- Protocol
  - RTMP / RTMPS
- NTSC (59.94Hz) [4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)
    59.94p, 50Mbps / 25Mbps (H.264)
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
- NTSC (59.94Hz) [FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz) [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz) [4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)
    50.00p, 50Mbps / 25Mbps (H.264)
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
- PAL (50.00Hz) [FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz) [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.5cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range
- EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Focus Ring Control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720° (*⁴) / 1080°/ Maximum (*⁴)) *When a compatible lens is attached.
Others
- Focus Peaking, 1-Area AF Moving Speed, AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Loop Focus Frame, AFC Start Point (225-Area), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure / Creative Video / Custom 1, 2, 3, 4 / Intelligent Auto
ISO sensitivity (Standard output sensitivity)
- Still image: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
  Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

Image sensor shift type (5-axis / 6.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

Dual I.S. (6.5-stop* Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- Electronic shutter
  - AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 7 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
- RAW / RAW+JPEG: More than 108 images
  JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)
  *When recording is performed under the test conditions specified by Panasonic.

6K PHOTO (¹) / 4K PHOTO (¹)

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

LIVE VIEW COMPOSITE (*⁴)

TIME LAPSE SHOT

STOP MOTION ANIMATION

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/250 second
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.

MOTION PICTURE FUNCTION

Master pedestal level
- 31 steps
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope
- Selectable
LUT view assist
- Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan
- Yes
Time code
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
Knee control
- Yes (in Like709 mode)
Other functions
- Red REC Frame Indicator, Streaming Blue Frame Indicator,

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Motion Pic. Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / Off (Disable Press and Hold) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

PRINT

PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI (*²)
- HDMI
  - HDMI TypeA
    Audio: Stereo
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    Down Convert: Auto / 4K / 1080p / 1080i / OFF
- Playback
  - 59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
    50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
    24.00Hz: Auto / C4K/24p / 4K/24p / 1080p
Remote input
- φ2.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Speaker
- Monaural
Headphone output
- φ3.5mm
SD card slot
- Slot 1, Slot 2

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- Approx. 400 images, 1200 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
  Approx. 410 images, 1200 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 120 min with H-ES12060 / H-FS12060
  MP4 [FHD/60p]: Approx. 140 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 60 min with H-ES12060 / H-FS12060
  MP4 [FHD/60p]: Approx. 70 min with H-ES12060 / H-FS12060
Battery grip
- DMW-BGGH5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
Weight
- Approx. 727g / 1.60 lb (SD Memory Card x 1, Battery, Body)
  Approx. 647g / 1.43 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature (*³)
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Sync
    ・ This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

    LUMIX Network Setting Software
    ・ This software is used to write in streaming destination setting information into an SD card from a computer. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Windows / Mac)

    LUMIX Tether
    ・ This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
- Playback / Editing
  - ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-GH5M2 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder

  DC-GH5M2L Kit / DC-GH5M2M Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, Lens Cap, Lens Hood, Lens Rear Cap

  ・ The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*¹) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*²) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

(*³) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

(*⁴)Firmware must be updated to version 1.1.
