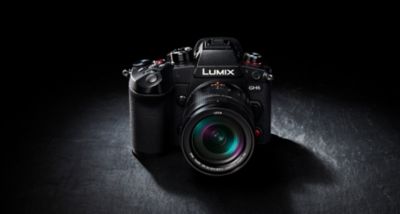

LUMIX GH6 kamera DC-GH6L

DC-GH6L

Jauna radošā dimensija

Hibrīda bezspoguļu kamera ar jaunu 25,2 megapikseļu Live MOS sensoru, 4:2:2 10-bitu C4K/4K 60p/50p video un neierobežtu ieraksta ilgumu*.
*Garantētas darbības apstākļos. Izmantojot akumulatoru. Ieraksta ilgums ir atkarīgs no akumulatora un datu nesēja ietilpības.
Tuvināt
Tālināt
Aizvērt
DC-GH6L

Iespējas

Aparātprogrammatūras versija 2.0 / 2.2 / 2.3

RAW video datu izvade

Aparātprogrammatūras atjauninājums sniedz iespēju izvadīt RAW video datus, izmantojot HDMI, lai tos saglabātu kā ProRes RAW monitora ierakstītājos ATOMOS NINJA V+ and NINJA V HDR.* Blackmagic RAW var ierakstīt arī ar Video Assist 12G HDR.**

* Aparātprogrammatūras versija 2.0 vai jaunāka. ･Lūdzu, skatiet ATOMOS tīmekļa vietni, lai iegūtu informāciju par attiecīgo ATOMOS Ninja V+ vai ATOMOS Ninja V aparātprogrammatūras versiju. ･Lai rediģētu RAW video, kas ierakstīts ar ATOMOS Ninja V+ vai ATOMOS Ninja V, ir nepieciešama programmatūra, kas atbalsta ProRes RAW. Lietojiet LUT (pārlūktabulu), kas pieejama tālāk norādītajā klientu atbalsta vietnē, lai izmantotu tādu pašu krāsu kalibrēšanu kā V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Pieejamās funkcijas ir atkarīgas no situācijas. ** Aparātprogrammatūras versija 2.3 vai jaunāka. ･Lai atskaņotu Blackmagic RAW datus, ir nepieciešams DaVinci Resolve vai DaVinci Resolve Studio, un lai tos rediģētu, ir nepieciešams DaVinci Resolve Studio. ･Lūdzu, skatiet Blackmagic Design tīmekļa vietni, lai iegūtu informāciju par attiecīgo Blackmagic Video Assist 5” 12G HDR un Blackmagic Video Assist 7” 12G HDR aparātprogrammatūras versiju. ･Pieejamās funkcijas ir atkarīgas no situācijas. ･Ierakstot 4K 120p/100p vai 5.7K 60p/50p, ierakstīšanai SSD ieteicams konstants bitu ātrums 5:1 vai mazāks un ierakstīšanai SD kartē – 8:1 vai mazāks.

RAW video datu izvade

Pirmo reizi LUMIX: Apple ProRes kodeka video

Izmantojot CFexpress B tipa karti (MOV, 5.7K, 5728x3024, 29.97p/25.00p/24.00p), varat iekšēji ierakstīt ProRes 422 HQ un ProRes 422 kodeka video, kas ir profesionālais nozares standarts un nodrošina augstu attēla kvalitāti ar zemu saspiešanu. Tas būtiski samazina slodzi datoram pēcapstrādes laikā un ļauj veikt NLE (nelineāro rediģēšanu) bez transkodēšanas, tādējādi vienkāršojot visa procesa darba plūsmu.
Aparātprogrammatūras versijs 2.0 atbalsta 59.94p/50.00p pie C4K (4096x2160) un FHD (1920x1080).
･Apple un ProRes ir uzņēmuma Apple Inc. preču zīmes vai reģistrētas preču zīmes Amerikas Savienotajās Valstīs un/vai citās valstīs.
Pirmo reizi LUMIX: Apple ProRes kodeka video

Tiešs ieraksts uz USB-SSD

Aparātprogrammatūras versija 2.2 atbalsta ierakstīšanu un atskaņošanu, izmantojot ārēju SSD caur USB. Turklāt spēja ierakstīt Apple ProRes422 HQ (maksimāli 1,9 Gbps) un 4:2:2 10-bitu All-Intra tieši uz SSD, kas ir gan viegli pārnēsājams, gan ietilpīgs, ir uzlabojusi datu dublēšanas un pēcapstrādes efektivitāti.

･Lai ierakstītu HFR/VFR video ar 61 kadr./sek. vai lielāku kadru ātrumu USB-SSD ierīcē, nepieciešams aparātprogrammatūras versijas atjauninājums 2.3, maiņstrāvas adapteris DMW-AC10 (pēc izvēles) un līdzstrāvas savienotājs DMWDCC17 (pēc izvēles). ･Video nav iespējams vienlaikus ierakstīt SD kartē vai CFexpress kartē, kamēr tiek veikta ierakstīšana ārējā SSD. ･Izmantojiet ārējo SSD, kura ietilpība nepārsniedz 2 TB un kas ir saderīgs ar USB C tipu. Mēs iesakām izmantot ārēju SSD disku, kura darbību ir apstiprinājis Panasonic. Vispirms ņemiet vērā, ka tā nav garantija darbībai visās ierīcēs. ･Jaunākā informācija par ārējiem SSD būs pieejama tālāk minētajā atbalsta saitē vienlaicīgi ar aparātprogrammatūras izlaišanu: https://panasonic.jp/support/global/cs/dsc/connect/index.html

Tiešs ieraksts uz USB-SSD

5.7K 10-bitu 60p/50p ieraksts

Ar 5.7K (5728x3024) 4:2:0 10-bitu 60p/50p (17:9) un 5.8K (5760x4320) 30p/25p/24p 4:2:0 10-bitu anamorfo (4:3) režīmu LUMIX GH6 nodrošina augstāku izšķirtspēju un augstākus bitu pārraides ātrumus nekā jebkad agrāk, un jaunākās tehnoloģijas attēla kvalitātes, daudzpusības un ekspresivitātes jomā, kas nepieciešamas filmām, TV un visa veido video veidošanai.
5.7K 10-bitu 60p/50p ieraksts

Neierobežots 4:2:2 10-bitu C4K/4K 60p/50p video ieraksta ilgums

GH6 ir pirmā LUMIX kamera, kas piedāvā 4:2:2 10-bitu C4K/4K 60p/50p iekšējo ierakstu un neierobežotu ieraksta ilgumu*, izmantojot ieteicamajā darbības temperatūrā**. Ideāli piemērota nelielām video producēšanas komandām apstākļos, kur nepieciešama mobilitāte un augsta kvalitāte. Turklāt kamerā vienlaicīgi var veikt gan iekšējo ierakstu, gan ārējo ierakstu caur HDMI izeju.
*Garantētajos darbības apstākļos. Izmantojot akumulatoru. Ieraksta ilgums ir atkarīgs no akumulatora un atmiņas kartes ietilpības.
**-10 – +40℃.
･Atbilst 4K (4096×2160) standartam saskaņā ar Digital Cinema Initiatives (DCI) definējumu.
･Nepieciešama CFexpress karte vai SD atmiņas karte ar 90. video ātruma klasi.
Neierobežots 4:2:2 10-bitu C4K/4K 60p/50p video ieraksta ilgums

7,5-punktu dubultais I.S. 2 (attēla stabilizētājs)

Saderība ar piecu asu dubulto I.S. 2 (attēla stabilizētājs) apvieno korpusa I.S. vadību ar objektīva O.I.S. vadību, nodrošinot 7,5 punktu korekciju.*
*Pamatojoties uz CIPA standartu [Virzienā ap vertikālo asi / ap horizontālo asi: fokusa attālums f=140 mm (35 mm filmu kameras ekvivalents f=280 mm), ja tiek izmantots H-FSA14140.]
7,5-punktu dubultais I.S. 2 (attēla stabilizētājs)

HFR/VFR 10-bitu ieraksts

Augstas izšķirtspējas lēnas kustības ieraksts, kas nesen kļuvis populārs video pasaulē, tagad ir iespējams, izmantojot C4K/4K 10-bitu 120p/100p HFR (augsts kadru nomaiņas ātrums) video ierakstu ar audio. LUMIX GH6 nodrošina arī 10-bitu ALL-Intra ieraksta režīmus augsta līmeņa rediģēšanai, lai varat filmēt FHD 240p/200p HFR un FHD 240fps VFR (maināms kadru nomaiņas ātrums) video. Izmantojot VFR, varat ierakstīt līdz pat 12,5x īpaši lēnas darbības video (FHD 10-bitu 24p/300fps).
･Sensora maksimālā izvade ir 60fps, kad ir ieslēgts dinamiskā diapazona pastiprinājums.
HFR/VFR 10-bitu ieraksts

Jauna programma Venus Engine

Jaunā programmā Venus Engine nodrošina aptuveni divreiz lielāku apstrādes jaudu kā iepriekš, dodot iespēju ātrāk apstrādāt video materiālus ar jaunā sensora lielo pikseļu skaitu, augsto izšķirtspēju un bitu pārraides ātrumu. Būtiski uzlabota arī attēla kvalitāte. Jaunā viedā detaļu apstrāde nodrošina augstāku izšķirtspēju, bet jaunā 2D un augstas veiktspējas 3D trokšņa samazināšana (video) optimizē trokšņu samazināšanu. Rezultāts ir dabiski, 3D līdzīgi attēli ar minimālu troksni pat ar augstu jutību. Augstas precizitātes divkāršā 3D krāsu kontrole nodrošina labāku krāsu atveidošanu (spilgtums, piesātinājums un nokrāsa), radot reālistiskāku un bagātīgāku krāsu izteiksmi.
Jauna programma Venus Engine

Jauns 25,2 MP sensors

LUMIX GH6 kamerai ir pirmais Micro Four Thirds™ sistēmas standarta 25,2-megapikseļu Live MOS sensors. Bez zemas caurlaides filtra tā konstrukcija nodrošina gan vairāk pikseļu, gan lielāku izšķirtspēju īpaši reālistiskām detaļām. Augstāks nolasīšanas ātrums nodrošina C4K/4K 120p video ierakstu un nepārtraukto uzņemšanu ar ātrumu 75 kadri sekundē, izmantojot elektronisko aizslēgu, vienlaikus samazinot ritošā aizslēga kropļojumus.
･Micro Four Thirds™ nosaukums un logotipa zīmes ir Olympus Corporation preču zīmes vai reģistrētas preču zīmes Japānā, Amerikas Savienotajās Valstīs, Eiropas Savienībā un citās valstīs un reģionos.
Jauns 25,2 MP sensors

Iedvesmai

Specifikācijas

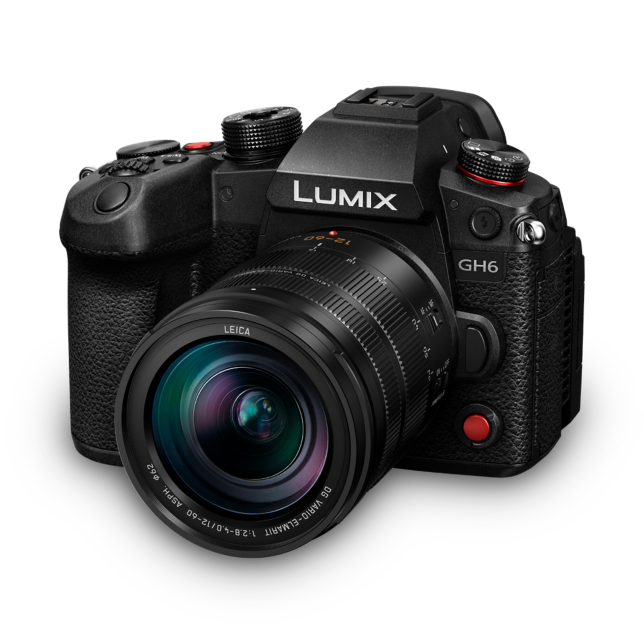

Fotoattēla LUMIX GH6 kamera DC-GH6L

Izmērs un svars

Augstums
100.3mm
Platums
138.4mm
Dziļums
99.6mm
Svars
823g

Visas vērtības ir aptuvenas. Svars ar SD karti un akumulatoru. Objektīvs ir iekļauts.Tikai korpuss 739g.Izmēri bez izvirzījumiem.

  • Micro Four Thirds sistēmas standartsMicro Four Thirds sistēmas standarts
  • 25.2 Megapixels25.2 Megapixels
  • C4K/4K 4:2:2 10-bit 60p/50p videoC4K/4K 4:2:2 10-bit 60p/50p video
  • HFR/VFR 10-bit videoHFR/VFR 10-bit video
  • V-logV-log
  • Piecu asu dubultais A.S. 2 (attēla stabilizētājs)Piecu asu dubultais A.S. 2 (attēla stabilizētājs)
  • 1840k-dot Tilt and Free-angle Monitor1840k-dot Tilt and Free-angle Monitor
  • 3680 tūkst. punktu OLED tiešā skata meklētājs3680 tūkst. punktu OLED tiešā skata meklētājs
  • Izturība pret šļakstiem, putekļiem un saluIzturība pret šļakstiem, putekļiem un salu
  • Wi-FiWi-Fi
  • BluetoothBluetooth

Jauns 25,2 megapikseļu Digital Live MOS sensors

Jauna programma Venus Engine

4:2:2 10-bitu C4K/4K 60p/50p video neierobežots ieraksta ilgums

HFR/VFR 10-bitu video un 5.7K 10-bitu 60p/50p video

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Lens mount

    • Micro Four Thirds mount

IMAGE SENSOR

  • Type

    • Live MOS sensor (17.3 x 13.0 mm)

  • Camera effective pixels / Total pixels

    • 25.21 megapixels / 26.52 megapixels

  • AR (Anti Reflection) coating

    • Yes

  • Aspect ratio / Color filter

    • 4:3 / Primary color filter

  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • Dynamic Range Boost ON: 13+ stops (V-Log)
    Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW

  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1

  • File size (Pixels)

    • 4:3
      • 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
    • 3:2
      • 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
    • 16:9
      • 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
    • 1:1
      • 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.

  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard

  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
      MP4: H.264/MPEG-4 AVC, H.265/HEVC

  • Audio format

    • MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      MP4: AAC (2ch 48kHz/16-bit)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz

  • Image area of video

    • Full / Pixel by Pixel

  • MOV (*¹) (*²) *HLG is selectable.

    • 59.94Hz [5.8K] 5760x4320 (4:3)
      • 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [4.4K] 4352x3264 (4:3)
      • 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 59.94Hz [4K] 3840x2160
      • 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 59.94Hz [FHD] 1920x1080
      • 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
        **Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.8K] 5760x4320 (4:3)
      • 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [4.4K] 4352x3264 (4:3)
      • 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 50.00Hz [4K] 3840x2160
      • 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 50.00Hz [FHD] 1920x1080
      • 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
        200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
        100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
        **Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.8K] 5760x4320 (4:3)
      • 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [4.4K] 4352x3264 (4:3)
      • 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 24.00Hz [4K] 3840x2160
      • 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    • 24.00Hz [FHD] 1920x1080
      • 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
        *When Dynamic Range Boost is set to OFF.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)

  • MP4 (*¹)

    • 59.94Hz [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        *HLG is selectable.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz -
      • -

  • Apple ProRes (*¹) (*²)

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p, 1.9Gbps (Apple ProRes 422 HQ) / 1.3Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [C4K] 4096x2160 (*⁵)
      • 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [FHD] 1920x1080 (*⁵)
      • 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p, 1.6Gbps (Apple ProRes 422 HQ) / 1.1Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [C4K] 4096x2160 (*⁵)
      • 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [FHD] 1920x1080 (*⁵)
      • 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [C4K] 4096x2160 (*⁵)
      • 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [FHD] 1920x1080 (*⁵)
      • 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

VARIABLE FRAME RATE

  • MOV (*¹) *HLG is selectable.

    • 59.94Hz [5.7K] 5728x3024 (17:9)
      • 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 59.94Hz [C4K] 4096x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 59.94Hz [4K] 3840x2160
      • 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 59.94Hz [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 50.00Hz [5.7K] 5728x3024 (17:9)
      • 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 50.00Hz [C4K] 4096x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 50.00Hz [4K] 3840x2160
      • 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61 fps or higher on a USB-SSD. (*7)
    • 50.00Hz [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [5.7K] 5728x3024 (17:9)
      • 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Image Area of Video is set to FULL during this recording mode.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
        24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
    • 24.00Hz [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
        24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
        *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
        *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
        *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)

EXTERNAL USB-SSD RECORDING (*⁶)

  • Yes (ON / OFF)

HDMI RAW DATA OUTPUT (*⁵)

  • Compatible external devices

    • ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V"
      *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+ or ATOMOS Ninja V.
      *Recording of some recording qualities is not available with the "Ninja V".
      *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*7)
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data.
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR.
      *All functions may not be available depending on the situation.
      *When recording in 4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.

  • Rec quality

    • NTSC (59.94Hz) [5.8K] 5760x4320 (4:3)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [5.7K] 5728x3024 (17:9)
      • 59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • NTSC (59.94Hz) [4.4K] 4352x3264 (4:3)
      • 59.94p, 12-bit (LPCM)
    • NTSC (59.94Hz) [C4K] 4096x2160 (17:9)
      • 119.88p, 12-bit (LPCM)
        59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.8K] 5760x4320 (4:3)
      • 25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [5.7K] 5728x3024 (17:9)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [4.4K] 4352x3264 (4:3)
      • 50.00p, 12-bit (LPCM)
    • PAL (50.00Hz) [C4K] 4096x2160 (17:9)
      • 100.00p, 12-bit (LPCM)
        50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)

  • Audio format

    • LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
      *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

VIEWFINDER

  • Type

    • OLED Live View Finder

  • Pixels

    • Approx. 3.68 million dots

  • Field of view / Magnification

    • Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3

  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)

  • Eye sensor

    • Yes

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control

  • Monitor size

    • Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect

  • Pixels

    • Approx. 1.84 million dots

  • Field of view

    • Approx. 100%

FOCUS (*³)

  • Type

    • Contrast AF system

  • DFD technology

    • Yes

  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF

  • AF mode

    • Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
      *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.

  • AF detective range

    • EV -4 - 18 (F2.0, ISO100 equivalent, AFS)

  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

  • AF assist light

    • Yes

  • AF lock

    • Set the Fn button in custom menu to AF lock

  • Focus ring control

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.

  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.

  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)

  • Dynamic Range Boost

    • ON / OFF

  • ISO sensitivity (Standard output sensitivity)

    • Still image
      • [Normal]
        Auto / 50 (Extended ISO) / 100-25600

        [V-Log]
        Auto / 125 (Extended ISO) / 250-12800

        *Switchable between 1/3 or 1 EV step.
    • Motion picture
      • [Normal]
        Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800

        [V-Log]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [Hybrid Log Gamma]
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

        [HDMI RAW Data Output] (*⁵)
        Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
        Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800 (*6)

        *Switchable between 1/3 or 1 EV step.

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • B.I.S. (5-axis / 7.5-stop*)
    *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

    Dual I.S. 2 (7.5-stop**)
    **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter

  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
      Motion picture: 1/25,000 - 1/25
      Creative Video M mode / MF mode: 1/25,000 - 1/8

  • Self timer

    • 10sec, 3 images / 2sec / 10sec / Custom Time

  • Remote control

    • Remote control by DMW-RS2 (sold separately)

  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

  • Aperture bracket

    • 3, 5 or all positions

  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels

  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)
    • Electronic shutter
      • SH75: 75 frames/sec (AFS/MF)
        SH60: 60 frames/sec (AFS/MF)
        SH20: 20 frames/sec (AFS/MF)
        H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
        M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
        L: 2 frames/sec (AFS/MF/AFC) (with Live View)

  • Number of recordable images

    • H/M/L*
      RAW+JPEG: More than 40 images
      RAW: More than 65 images**, More than 50 images***
      JPEG: More than 95 images**, More than 90 images***
      *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
      **When using a card with CFexpress Type B
      ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

      SH
      RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

  • Yes

STOP MOTION ANIMATION

  • Yes

FLASH

  • Flash type

    • TTL External Flash (sold separately)

  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.

  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.

  • Flash output adjustment

    • 1/3EV step ±3EV

  • Synchronization speed

    • Less than 1/250 second

  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10

  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

  • Master pedestal level

    • 31 steps

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023

  • Wave form monitor / Vectorscope

    • Selectable

  • LUT view assist

    • Supported file types: .vlt, .cube
      Monitor / HDMI

  • HLG view assist

    • Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)

  • Anamorphic desqueeze display

    • 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF

  • Synchro scan

    • Yes

  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes

  • Knee control

    • Yes (in Like709 mode)

  • Red REC frame indicator

    • ON / OFF

VERTICAL POSITION INFORMATION

  • Still image / Motion picture (ON/OFF)

LEVEL GAUGE

  • Yes

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*5) / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default

  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

  • Please refer to "OSD" Sheet

PRINT

  • PictBridge compatible

INTERFACE

  • USB

    • USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))

  • HDMI (*⁴)

    • HDMI
      • HDMI TypeA
        Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
        4K/120p / 4K/100p (*7)
        Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
    • Playback
      • 59.94Hz: 8K/30p* / C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
        50.00Hz: 8K/25p* / C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
        24.00Hz: 8K/24p* / C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
        *Only for still image playback. **Only for playback.

  • Remote input

    • φ2.5mm

  • Audio

    • Build-in microphone
      • Stereo
        Wind Noise Canceller: OFF / Standard / High
    • External microphone / External audio device input
      • φ3.5mm for external microphone / external audio device
        MIC (Plug-in Power) / MIC / LINE
        Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
        Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
    • XLR microphone
      • Yes with DMW-XLR1 (sold separately)
    • 4ch mic input
      • Yes with DMW-XLR1 (sold separately)
    • Speaker
      • Monaural
    • Headphone output
      • φ3.5mm

  • Card slot

    • Slot 1: CFexpress Card (CFexpress Type B)
      Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

  • TC IN/OUT

    • Yes with BNC Converter Cable (bundled)

  • Count up

    • Rec Run / Free Run

  • Time code mode

    • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)

  • HDMI time code output

    • ON / OFF

  • External TC setting

    • TC Synchronization / TC Output Reference

FAN

  • Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.

LAMP

  • Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac)
      Security: WPA/WPA2/WPA3
      Please refer to "Wi-Fi" sheet

  • Bluetooth

    • Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging, USB power delivery

  • Battery life (CIPA standard)

    • When using CFexpress Card
      • Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using SD memory card
      • Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
        Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
        *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
    • When using external USB-SSD (*⁶)
      • Approx. 320 images with H-ES12060 / DMW-BLK22
        Approx. 330 images with H-FS12060 / DMW-BLK22
        *Using a Samsung external SSD (T5_1TB). Under the test conditions specified by Panasonic based on CIPA standard.

  • Continuous recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 70 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 80 min with H-ES12060 / H-FS12060

  • Actual recordable time (Motion picture) (*¹)

    • When using CFexpress Card
      • MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
    • When using SD memory card
      • MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
    • When using external USB-SSD (*⁶)
      • MP4 [4K/60p]: Approx. 35 min with H-ES12060 / H-FS12060
        MP4 [FHD/60p]: Approx. 40 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)

  • Weight

    • Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
      Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*⁵)

    • -10°C to 40°C (14°F to 104°F)

  • Operating humidity

    • 10%RH to 80％RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

        LUMIX Sync
        ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
        https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
    • Playback / Editing
      • ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

  • Standard accessories

    • DC-GH6 Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable

      DC-GH6L Kit / DC-GH6M Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap

      ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • (*1) About motion picture recording

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbp or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbp or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
    Motion pictures with 400Mbp or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
    Motion pictures with 600Mbp or less: CFexpress card, SD memory card with Video Speed Class 90
    Motion pictures with 800Mbp or more, variable frame rate with ALL-Intra, or Apple ProRes: CFexpress card

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbp or more: the maximum file size is 4 GB

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV] in 600Mbps or less: 192GB
    [MOV] in 800Mbps: 640GB
    [ProRes] in [5.7K]: 640GB

    - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.

    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
    (*3) About AF
    - Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
    - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
    - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

    (*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).

    (*5) Firmware must be updated to version 2.0.

    (*6) Firmware must be updated to version 2.2.

    (*7) Firmware must be updated to version 2.3.
Atvērt jaunu lapu drukāšanai

Piederumi

Objektīvi

H-E08018

LEICA DG VARIO-ELMARIT 8-18 mm / F2,8-4,0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10–25 mm / F1,7 ASPH.

H-ES12060

LEICA DG VARIO-ELMARIT 12–60 mm / F2,8-4,0 ASPH. / POWER O.I.S.

H-X2550

Micro Four Thirds 25–50 mm telefoto tālummaiņas objektīvs/50–100 mm (35 mm kameras ekviv.)

H-ES50200

LEICA DG VARIO-ELMARIT 50-200 mm / F2,8-4,0 ASPH. / POWER O.I.S.

H-RS100400

Objektīvam LEICA DG VARIO-ELMAR 100–400 mm/F4,0–6,3 ASPH. /POWER O.I.S.

H-X012

LEICA DG SUMMILUX 12 mm/F1,4 ASPH.

H-X015

LEICA DG SUMMILUX 15 mm/F1,7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42,5 mm/F1,2 ASPH. /POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45 mm/F2,8 ASPH. /MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200 mm / F2,8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12–35 mm/F2,8 II ASPH. /POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35–100 mm/F2,8 II/POWER O.I.S.

H-F007014

LUMIX G VARIO 7–14 mm/F4,0 ASPH.

H-FS12032

LUMIX G VARIO 12–32 mm/F3,5–F5,6 ASPH. /MEGA O.I.S.

Fotoattēla H-FS12032

H-FS12060

LUMIX G VARIO 12–60 mm/F3,5–5,6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14–42 mm/F3,5–5,6 ASPH. /POWER O.I.S.

Fotoattēla H-PS14042

H-FS1442A

LUMIX G VARIO 14–42 mm / F3,5–5,6 II ASPH. /MEGA O.I.S.

H-FSA14140

LUMIX G VARIO 14-140 mm / F3.5-5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35–100 mm/F4.0–5.6 ASPH. /MEGA O.I.S.

Fotoattēla H-FS35100

H-FS45150

LUMIX G VARIO 45–150 mm/F4,0–5,6 ASPH. /MEGA O.I.S.

Fotoattēla H-FS45150

H-PS45175

LUMIX G X VARIO PZ 45–175 mm/F4,0–5,6 ASPH. /POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45–200 mm/F4,0–5,6 II/POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100–300 mm/F4,0–5,6/MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8 mm/F3,5

H-H014A

LUMIX G 14 mm/F2,5 II ASPH.

H-H020A

LUMIX G 20 mm/F1,7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30 mm/F2,8 ASPH. /MEGA O.I.S.

H-HS043

LUMIX G 42,5 mm/F1,7 ASPH. /POWER O.I.S.

Akumulators / Akumulatora lādētājs

DMW-BLK22

Akumulatora bloks

DMW-BTC15

Akumulatora lādētājs

DMW-DCC17

Līdzstrāvas savienotājs

DMW-AC10E

Maiņstrāvas adapteris

Fotoattēla DMW-AC10E

XLR mikrofona adapteris / mikrofoni

DMW-XLR1

XLR mikrofonu adapteris

DMW-MS2

Mikrofons

DMW-VMS10

Mikrofons

Fotoattēla DMW-VMS10

Zibspuldzes / video apgaismojums

DMW-FL580L

Ārējā zibspuldze

DMW-FL360L

Ārējā zibspuldze

Fotoattēla DMW-FL360L

DMW-FL200L

Ārējā zibspuldze

Fotoattēla DMW-FL200L

VW-LED1

LED video apgaismojums

Fotoattēla VW-LED1

Aizslēga tālvadības pults / trijkāja rokturis

DMW-RS2

Aizslēga tālvadības pults

DMW-SHGR1

Trijkājis/rokturis

Citas iespējas

DMW-BDC1

Korpusa vāciņš

Fotoattēla DMW-BDC1

DMW-TA1

Trijkāja adapteris

Fotoattēla DMW-TA1

DMW-MA2M

Piestiprināšanas adapteris

Fotoattēla DMW-MA2M
Skatīt visus piederumus

Saņemt atbalstu

LUMIX GH6 kamera DC-GH6L

Apmeklēt šī produkta atbalsta lapu
