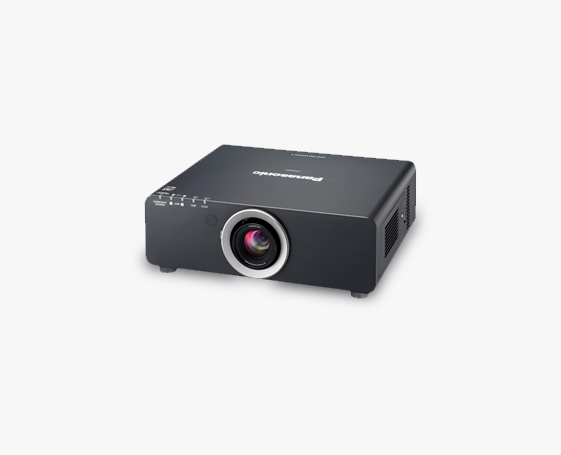

Interchangeable Lens Projector
6000 Lumens, WUXGA

PT-DZ6710E

Close

Features

RGB Booster Significantly Improves Colour Reproduction


The RGB Booster achieves high image quality with levels of colour reproduction (up to 145% that of conventional models) and brightness that make each colour stand out. It combines Panasonic's proprietary Vivid Colour Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLPT Projector that produces bright and vivid colours.

Vivid Colour Control
This unique control technology optimises the use of the colour segment areas of the colour wheel. It increases the brightness of each RGB colour by minimising the unallocated portions between the colours, to achieve truly vivid colouring.

Lamp Modulation Drive System
Conventionally, the Lamp intensity was fixed, and the balance between colours was controlled by discarding excessive light. For example, the intensity of green had to be digitally cut back to match the lower light intensity of red. With the new Lamp modulation technology, the Projector is now able to control the Lamp intensity for each of the red, green, blue, and white segments of the colour wheel separately. Because the actual light output is controlled in relation to each colour segment, light usage is optimised and colour balance is obtained without lowering the brightness. This results in bright vivid images with increased colour fidelity.

High Brightness of 6,000 lm with New AC Lamp


Our newly developed 300 Watt AC Lamps are used in the PT-DZ6710E. The high efficiency light convergence technology and independently developed colour wheel work together to achieve the high brightness of 6,000 lm for the PT-DZ6710E. Clear, crisp images are reproduced even in bright rooms.



High Resolution WUXGA Images


In response to the increasing popularity of wide screen high resolution image viewing, the PT-DZ6710E features native WUXGA resolution to cover full HD specifications. This brings you lifelike projection of intricate, highly detailed images.



Detail Clarity Processor Brings Depth And Clarity to Details


Exclusive to Panasonic, this image processing circuit analyses the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low frequency components, and brings out fine details accordingly. The resulting images have a more natural, three dimensional appearance with crisp, clear detail.



System Daylight View 2 for Enhanced Colour Perception


Screen visibility is lower when a Projector is used during daylight hours or in a room with lights on. This problem becomes more significant when images require increasing levels of detail expression. Panasonic's System Daylight View 2 optimises image quality to improve colour perception of the projected image in bright rooms. Gamma curves and sharpness, in addition to conventional colour correction are adjusted to bring a sense of sharpness to the entire screen and reproduce stunning images with lifelike depth. This results in highly comfortable viewing even in bright lighting, and allows viewers to concentrate more easily on the images.

3D Colour Management System


To increase visual impact, Projector images are often viewed from a comparatively close position relative to the screen size. The characteristics of the human eye, however, tend to cause changes in colours when images are viewed close up on a large screen. Changes in colour saturation, hue, and brightness differ from colour to colour, and conventional Projectors were not able to make the appropriate corrections. 3D Colour Management makes these corrections to produce accurate colours that are very close to the original images even when viewed on a large screen.



Progressive Cinema Scan (3/2 pull down)


This interlace / progressive conversion technology automatically detects when the input signal is derived from filmed material and selects the optimum progressive processing method to assure faithful reproduction of the original image.



Full 10-bit Picture Processing


The use of a full 10-bit image processing system provides smooth tonal expression. For example, skin tones appear natural and true to life.



Dynamic Sharpness Control


The dynamic sharpness control circuit adjusts the video signal waveforms based on the difference in brightness of adjacent pixels for a sharp, clear picture that is relatively unaffected by signal noise.

Dual Lamp System Prevents Image Interruptions


The 2-Lamp System increases brightness and eliminates the need to interrupt a presentation if a Lamp should burn out (in Dual-Lamp operation mode). The Lamp Relay mode also operates the Lamps alternately to enable 24/7 Projector operation.



Liquid Cooling System Attains a High Level of Reliability


Panasonic's original liquid-cooling system directly cools the DLP™ chip, which extends PT-DZ6710E Projectors performance and attains a high level of reliability. It also enables operation in temperatures up to 45°C / 113°F for use in a wider variety of environments, and maintains a more stable performance even in harsh conditions while keeping the operating sound down.



Auto Cleaning Filter Reduces Maintenance Hassles


Panasonic's proprietary Auto Cleaning Filter (ACF) automatically exposes a clean Filter surface when it senses that the Filter is clogged. The ACF also brushes away dust that adheres to the Filter, which helps prevent clogging that can impair operation or cause malfunction. This helps maintain the highly efficient electrostatic Filter, the Micro Cut Filter's superior dust-collecting performance. As a result, the Filter does not need to be replaced for over 10,000 hours, greatly reducing the hassle of maintenance.

Dust Resistant Optical Block


The dust resistant design of the optical block helps ensure that Projectors with DLP™ technology will continue to deliver crisp, sharp, high resolution images over an extended service life.



Geometric Adjustment for Specially Shaped Screens


This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using just the Remote Control, with no external equipment needed. Used together with the multi-screen support system, Geometric Adjustment expands your application possibilities, letting you create a wide range of image effects at concerts, performances and other special events.



Multi-Screen Support System Seamlessly Connects Multiple Screens


Edge Blending
The edges of adjacent screens can be blended and their luminance controlled. For example, the adjoining edges in a 2-screen system can be blended to create a smooth, seamless image.

Colour Matching
When several units are used together, this function corrects for slight variations in the colour reproduction range of individual Projectors. The PC software assures easy, accurate control. Independent, 7-axis adjustment (red, green, blue, yellow, magenta, cyan, white) ensures high precision colours and minimises colour variations.

Multi-Screen Processor
The PT-DZ6710E can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge blended at a time.

Powered Vertical / Horizontal Lens Shift


A wide adjustment range of the horizontal / vertical lens shift assures distortion free images and adds convenience and versatility. It lets you easily make adjustments with the Remote Control, making it optimal for ceiling mounted applications.



Flexible Installation


The PT-DZ6710E can be rotated vertically. This means you can install one at any up-and-down angle you want, to accommodate different installation conditions.



Side by Side Function


The PT-DZ6710E can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right. Taking advantage of the wide-screen projection, this function gives you a host of new application possibilities to explore.



Web Browser Control / Monitoring and E-mail Message Alert


Anybody can operate the PT-DZ6710E by Remote Control or monitor its status over a LAN network, because it is done using the Computer's familiar Web browser. Furthermore, the PT-DZ6710E sends an e-mail message to notify the operator when an error has occurred, or a Lamp needs to be replaced.

PJLink™ Compatibility


The LAN terminals support PJLink™ class 1 connection. Control with the same specifications is also possible when used in a Multi-Projector system with Projectors of another brand.



Easy to Use Wireless Remote Control with a Maximum Operating Range of 30m


This provides greater convenience for large conference rooms, lecture halls and gymnasiums with large audiences. Also, two signal transmission ports are provided to enable a large operating area.



Eco Standby Mode¹


The PT-DZ6710E has attained a low standby power level of 0.3 W², which is a top-class level for the Projector industry. It also helps to slash running costs, and reduces environmental impact.



Multiple Terminals with HD-SDI Compatibility


The PT-DZ6710E has an array of terminals - two RGB inputs including a 5-BNC connector, serial in/out, one S-video input, two remote in, one remote out, HD-SDI, DVI-D, and control capability - to support a broad range of projection needs, with HDCP (High-Bandwidth Digital Content Protection) compliance. Using the serial terminal (RS232C), it is also possible to connect and operate AMX and Crestron control systems with ease.

Mechanical Lens Shutter


A mechanical lens shutter eliminates annoying light leakage when PT-DZ6710E is on standby or temporarily not in use, such as during a meeting.



Direct Power Off


Built-in capacitor provides power to cool the internal parts. This means that you can switch off the room's main power as soon as the presentation ends. PT-DZ6710E doesn't make you wait around and helps minimise Lamp damage.



Easy Replacement of Dust Filter and Lamp


Dust Filter is replaced from the side and Lamps are replaced from the back panel. Both of them are replaced very easily even when the PT-DZ6710E is installed.

¹ In Eco standby mode, LAN-based network functions such as the standby ON function will not operate.
