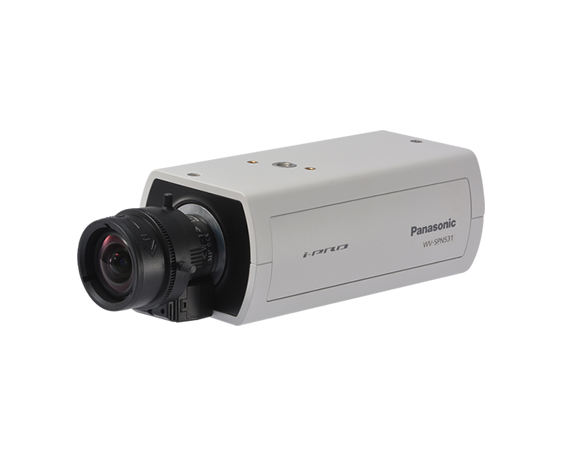

Full HD / 1,920 x 1,080 60 fps H.264 Network Camera featuring Super Dynamic

・ 1,080p Full HD Images up to 60 fps
・ H.264  Network Camera
・ Enhanced Super Dynamic
・ Memory Card Slots

WV-SPN531

Close

Features

1080p Full HD images up to 60 fps

Approximate 1/3 inches, high sensitivity MOS sensor helps to deliver super high resolution images in Full HD 1,920 x 1,080 at up to 60 fps.

Multiple H.264 (High profile) Streams (max. 4 streams)

Multiple H.264 streams and JPEG streams ensure simultaneous real time monitoring. High resolution recording by new enhanced "UniPhier®", Panasonic's proprietary System LSI platform.

Enhanced Super Dynamic and ABS Technologies

Enhanced Super Dynamic and Adaptive Black Stretch (ABS) delivers 133 dB wider dynamic range compared to conventional cameras.

High Speed ABF (Auto Back Focus) ensures easy installation

The WV-SPN531 features High Speed ABF (Auto Back Focus) which allows for a fast and easy installation.

Cropping function lets you share images simultaneously

The handy cropping function on the WV-SPN531 allows you to provide the whole image and the part image simultaneously. Up to 4 image capture areas can be specified, and it's also possible to control the sequence.

VIQS (Variable Image Quality on Specified area)

Designate eight areas to retain higher image quality, while the excluded area has a decreased quality, for lower image file size and bit rate. Cropping function provides whole image and part image simultaneously.

Selectable Light Control Modes

Outdoor scene, Indoor scene (50 Hz) / Indoor scene (60 Hz), Fix shutter,Indoor scene (50 Hz/60Hz). Flicker caused by fluorescent lightning will be automatically compensated.

Multi Process NR & 3D-DNR

Multi process NR & 3D-DNR ensures noise reduction in various conditions. High sensitivity with Day & Night (IR) function : 0.01 lx (Colour), 0.003 lx (B/W) at F1.4.

Face Super Dynamic and Face Detection function

Face Super Dynamic technology ensures clear face image. Face detection function detects the position of human face and the information is sent by XML / video stream (Extension Software).

Video Motion Detection (VMD) & programmable areas

The WV-SPN531 has VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size.

SDXC/SDHC/SD Memory card slots

The WV-SPN531 has multiple memory card slots for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and back-up upon network failure (H.264 / JPEG). Realise long-term recording and auto back-up function.

Multiple alarm sources can trigger a range of actions

Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output.

Full duplex bi-directional audio allows interactive communication

Full duplex bi-directional audio allows interactive communication between camera site and monitoring site.

Prioritised stream control when using multiple recorders

One of the video streams can be prioritised when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate.

Fog Compensation function as standard

The WV-SPN311 is Fog compensation function equipped as standard.

Super Chroma Compensation function for better colour reproduction

With Super Chroma Compensation function you will enjoy better colour reproducibility even in low illumination.

Specs

WV-SPN531
1080p Full HD images
Enhanced Super Dynamic
Video Motion Detection

Support

Get Support

for WV-SPN531

Operating Instructions
WV-SPN531 Specifications
PDF - 591 (KB)

WV-SPN531 CAD Drawing
PDF - 457 (KB)
