E1 Type High Static Ducted

Hidden in the ceiling, ideal for luxury residences and light commercial buildings

E1 Type High Static Ducted units are hidden in the ceiling to provide an ideal match for luxury residences and light commercial buildings, offering greater freedom of duct design.

E1 Type High Static Ducted

Features

Cooling/Heating kW (rated)	9.0/10.0	11.2/12.5	14.0/16.0	16.0/18.0
Cooling/Heating Btu/h (rated)	30,700/34,100	38,200/42,700	47,800/54,600	54,600/61,400
Model No.	S-90ME1R5A	S-112ME1R5A	S-140ME1R5A	S-160ME1R5A
Model No.

Installation of Inspection Port Necessary

An inspection port (600 x 600 mm or more) is required at the lower side of the indoor unit body (field supply).

Compact Body Size

Hidden in the ceiling, ideal when interior decor is an important consideration such as in residences with many rooms and light commercial buildings.

Leading Control Options

Panasonic air conditioning systems allow flexible control options. Individual, centralised, Cloud control and WLAN control are all possible. Please consult with a Panasonic air conditioning specialist for advice as to which control solution best suits your system requirements.

LEARN MORE

Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

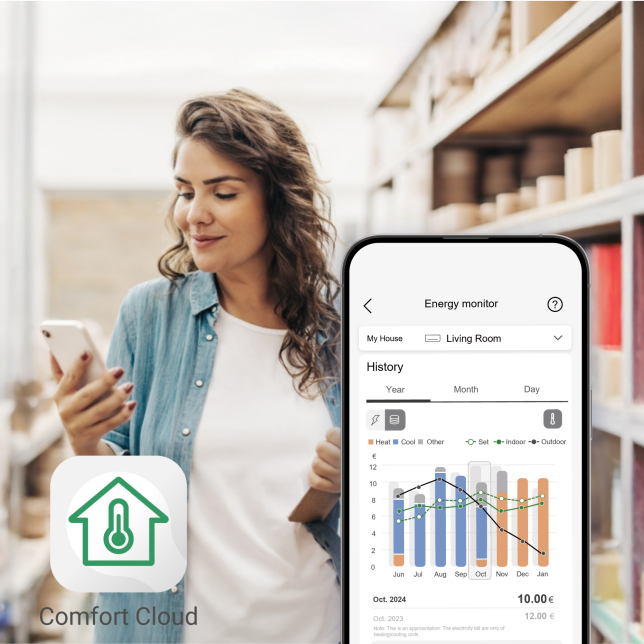

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC2 External WLAN Adaptor is required per unit.

LEARN MORE

Specs

S-90ME1R5A

S-112ME1R5A

S-140ME1R5A

S-160ME1R5A

R410A

Complete flexibility for ductwork design

Can be located into a weatherproof housing for external installation

Discharge air temperature control to reduce cold drafts during heating operation

Configurable air temperature control

	S-90ME1R5A	S-112ME1R5A	S-140ME1R5A	S-160ME1R5A
Power Source (50 Hz)	230/240 V, 1 phase	230/240 V, 1 phase	230/240 V, 1 phase	230/240 V, 1 phase
Cooling Capacity	9.0 kW, 30,700 Btu/h	11.2 kW, 38,200 Btu/h	14.0 kW, 47,800 Btu/h	16.0 kW, 54,600 Btu/h
Heating Capacity	10.0 kW, 34,100 Btu/h	12.5 kW, 42,700 Btu/h	16.0 kW, 54,600 Btu/h	18.0 kW, 61,400 Btu/h
Power Input (Cooling)	0.275/0.290 kW	0.390/0.410 kW	0.410/0.430 kW	0.590/0.640 kW
Power Input (Heating)	0.275/0.290 kW	0.390/0.410 kW	0.410/0.430 kW	0.590/0.640 kW
Running Current (Cooling)	1.24/1.25 A	1.72/1.74 A	1.82/1.84 A	2.62/2.70 A
Running Current (Heating)	1.24/1.25 A	1.72/1.74 A	1.82/1.84 A	2.62/2.70 A
Fan Type	Sirocco Fan	Sirocco Fan	Sirocco Fan	Sirocco Fan
Fan Air Flow Rate (H/M/L)	1,800/1,560/1,320 m³/h, 500/433/367 L/s	2,400/2,100/1,740 m³/h, 667/583/483 L/s	3,000/2,760/2,160 m³/h, 833/767/600 L/s	3,600/3,000/2,520 m³/h, 1,000/833/700 L/s
Fan Motor Output	0.155 kW	0.275 kW	0.310 kW	0.44 kW
Fan External Static Pressure	100 Pa (10-150 Pa)	100 Pa (10-150 Pa)	100 Pa (10-150 Pa)	100 Pa (10-150 Pa)
Sound Power Level (H/M/L)	62/61/60 dB	70/68/66 dB	71/69/67 dB	73/71/69 dB
Sound Pressure Level (H/M/L)	45/44/43 dB (A)	48/46/44 dB (A)	49/47/45 dB (A)	51/49/47 dB (A)
Dimension	H360 x W1,100 x D700 mm	H360 x W1,100 x D700 mm	H430 x W1,100 x D700 mm	H430 x W1,100 x D700 mm
Dimension with the Optional Ceiling Panel	H360 x W1,200 x D700 mm	H360 x W1,200 x D700 mm	H430 x W1,200 x D700 mm	H430 x W1,200 x D700 mm
Pipe Connection (Liquid)	Ø9.52 mm (Ø3/8 mm)	Ø9.52 mm (Ø3/8 mm)	Ø9.52 mm (Ø3/8 mm)	Ø9.52 mm (Ø3/8 mm)
Pipe Connection (Gas)	Ø15.88 mm (Ø5/8 mm)	Ø15.88 mm (Ø5/8 mm)	Ø15.88 mm (Ø5/8 mm)	Ø15.88 mm (Ø5/8 mm)
Pipe Connection (Drain Piping)	VP-25	VP-25	VP-25	VP-25
Net Weight	42 kg	44 kg	48 kg	53 kg

Documents

VRF Full Line-up Catalog 2023 (PDF - 28.4 MB)

E1 Type High Static Ducted Spec Dimension (PDF - 825 KB)

E1 Type High Static Ducted Spec Dimension (PDF - 825 KB)

Combination

3-Pipe FSV-EX MF3 Series

The simultaneous heating and cooling FSV system MF3 Series is designed to represent the ultimate solution for the most discerning customers and demanding installation environments.

2-Pipe FSV-EX ME2 Series

The FSV system ME2 Series is designed for outstanding energy-saving performance, powerful operation, high reliability, and comfort surpassing anything that was previously possible.

2-Pipe Mini-FSV LE Series

The Mini-FSV system LE Series is designed for light commercial and residential use with extraordinary energy-saving performance and a high external static pressure of 35 Pa.
