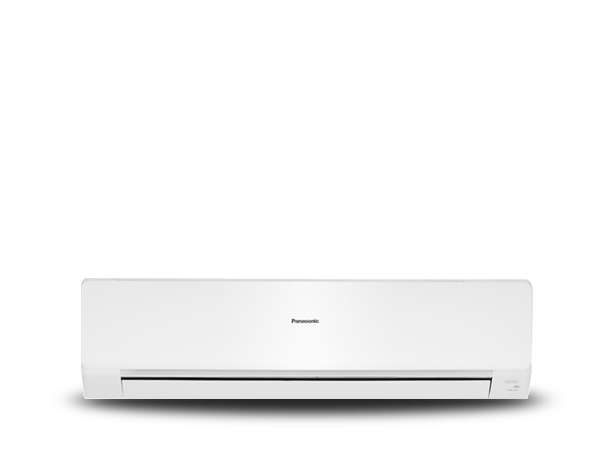

| Model (50Hz) |
CS-YA24MKD
(CU-YA24MKD) |
| Cooling/ Heating Capacity |
Btu/h |
22900-22900
25600-25600 |
| kW |
6.70-6.70
7.50-7.50 |
| EER/ COP |
Btu/hW |
8.51 |
| Electrical Data |
Voltage |
V |
220-230 |
| Running Current |
A |
12.5 |
| Power Input |
W |
2690 |
| Moisture Removal |
L/h |
3.6 |
| Pt/h |
7.6 |
| Air Circulation (Indoor/Hi) |
m³/min. |
18.6 |
| ft³/min. |
657 |
| Dimensions |
Height |
mm |
290 (750) |
| inch |
11-7/16 (29-17/32) |
| Width |
mm |
1070 (875) |
| inch |
42-5/33 (34-15/32) |
| Depth |
mm |
220 (345) |
| inch |
8-11/16 (13-19/32) |
| Net Weight |
kg |
12 (60) |
| lb |
26 (132) |
| Refrigerant Pipe Diameter |
Liquid Side |
mm / inch |
Ø 6.35 (1/4'') |
| Gas Side |
mm / inch |
Ø 15.88(5/8'') |
| Pipe Extension |
Chargeless Pipe Length |
m |
5 |
| Maximum Pipe Length |
m |
15 |
| Maximum Elevation Length |
m |
10 |
| Additional Refrigerant Gas* |
g/m |
30 |
| Power Supply |
Indoor |
| NOTE |
* When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit. |
