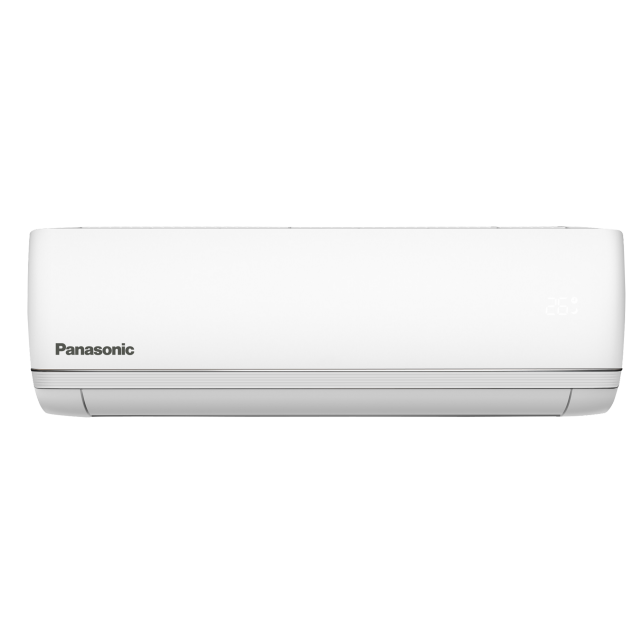

CS-CU-UV32WKF-4
The Ultimate Comfort & Convenience
Panasonic air-conditioners offer smooth cooling and comfort in your homes



Features
Designed for the Middle East
Panasonic air conditioners are designed with a level of durability that delivers high performance even under the harsh environment of regions such as the Middle East. Tough specifications allow them to withstand operating temperatures up to 55ºC, and prevent the entry of sand and dust.

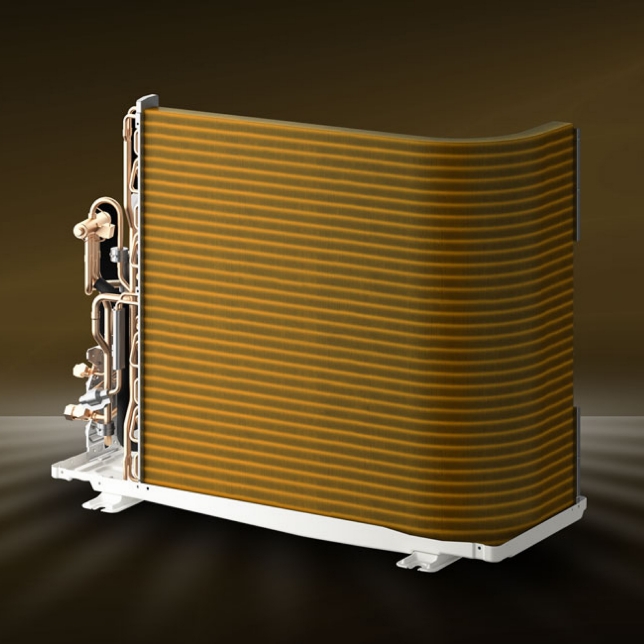

Gold Fin Condenser
Strong and durable anti-corrosion
The Condenser fins are coated to enhance its durability against water, air, and other types of corrosions.
The Condenser fins are coated to enhance its durability against water, air, and other types of corrosions.

I Feel Mode
There is built-in with an additional temperature sensor in the remote controller to lively monitor the surrounding temperature, therefore, the aircon can adjust room temperature more accurately and provide extra comfort to users.

Hidden Display

4-Way Swing
The 360° Air Flow function enables quick cooling at every part of the room by blowing cool air in multiple directions.

Specs

Size and Weight
- Height
- 285mm
- Width
- 1460mm
- Depth
- 349mm
- Weight
- 23kg
*Net indoor unit dimensions
4-Way Swing
55c Ambient
I Feel Mode
Model
-
32000 Cooling Only
Type
-
cooling only
Control type
-
Remote Controller
Rated cooling capacity(T1)
-
32000 Btu/h
Rated cooling capacity(T4)
-
26170 Btu/h
Indoor noise level at cooling
-
Super
-
NA
-
-
High
-
53 dB(A)
-
-
Med.
-
49 dB(A)
-
-
Low
-
46 dB(A)
-
-
Quite
-
NA
-
Outdoor noise level
-
58 dB(A)
Climate type
-
T3
Power supply
-
220~240V1 Phase/ 50Hz
Voltage Range
-
198~264 V
Rated Power input
-
Cooling(T1)
-
2689.0 W
-
-
Cooling(T4)
-
3250 W
-
Max Current
-
Cooling(T1)
-
15.7 A
-
-
Cooling(T4)
-
15.7 A
-
Max Power input
-
Cooling(T3)
-
3520 W
-
-
Cooling(T4)
-
3520 W
-
Refrigerant
-
R410A/2.700kg
Max. pipe length
-
15 m
Max.pipe hight
-
5 m
Max Temperature
-
55 ℃
Net dimensions (W x Dx H)
-
Indoor
-
1460×349×285 mm
-
-
Outdoor
-
953×433×808 mm
-
Net weight
-
Indoor
-
23 kg
-
-
Outdoor
-
67 kg
-
Packing dimensions (W x D x H)
-
Indoor
-
-
-
-
ODU(W/O piping)
-
1565×450×355 mm
-
-
ODU(With piping)
-
1020x475x845 mm
-
Gross weight
-
Indoor
-
-
-
-
ODU(W/O piping)
-
29 kg
-
-
ODU(With piping)
-
72 kg
-
