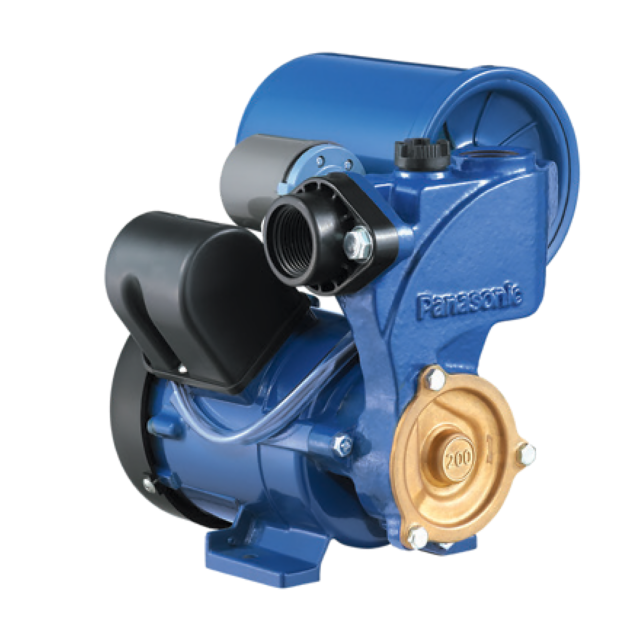

Auto Water Pump 200W A-200JAK-IMA5
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
A-200JAK-IMA5
ENGINEERED FOR POWERFUL WATER FLOW
The AUTO WATER PUMP 200W A-200JAK-IMA5 offers powerful flow, high durability, compact size, energy efficiency, and reliable, safe operation, ideal for consistent, low-maintenance water pumping needs.
Features
1 Impeller
Brass material resists friction and high temperature
2 Casing Cover
Brass material friction and high temperature.
3 Rotor
Anti-rust layer with accuracy of 30 microns that can work up to 8,000 hours without stopping. Seal type bearing adapted for ensures ingress protection.
4 Stator
aluminium wire is used in stator coil for good quality.
5 Thermal protector (Stator)
Enhances safety against burning by turning off the pump directly as rated temperature is exceeded.
Highly Durable
High accurate rotor with anti-rust layer allows operation up to 8,000 hours without stopping.
Reliable and Safe
Equipped with thermal protector (130C), it enhances security against burning. 4 layers of insulation minimize abrasion against short circuit.
Compact and Energy Efficient
Brass-made casing cover and impeller are resistant to friction and high temperature that allows smoother water stream.
Example
1) Required volume of water = 9 litres/min.
2) Suction Head = 8m …(a)
3) Discharge Head = 7m ………(b)
4) Friction loss (as of 10%)
(i) Pipe Length (Suction)
= (6m + 14m) x 0.1
= 2m ……………….. (c)
(ii) Pipe length (Discharge)
= (4m + 26m) x 0.1
= 3m ……………….. (d)
(iii) Elbow (2m loss / pcs)
= 2m x 2 elbows
= 4m ……………….. (e)
5) Total Dynamic Head
= 8m (a) + 7m (b) + 2m (c) + 3m (d) + 4m (e) = 24m
2) Suction Head = 8m …(a)
3) Discharge Head = 7m ………(b)
4) Friction loss (as of 10%)
(i) Pipe Length (Suction)
= (6m + 14m) x 0.1
= 2m ……………….. (c)
(ii) Pipe length (Discharge)
= (4m + 26m) x 0.1
= 3m ……………….. (d)
(iii) Elbow (2m loss / pcs)
= 2m x 2 elbows
= 4m ……………….. (e)
5) Total Dynamic Head
= 8m (a) + 7m (b) + 2m (c) + 3m (d) + 4m (e) = 24m
* For reference only. Friction loss values vary subject to different parts and suppliers.
The get the right pump for the job, following criteria should be determined
1. Required Amount of Water
2. Suction Head – The vertical distance from water level to the centreline of the pump
3. Discharge Head – The vertical distance from the centreline of the pump to the final discharge outlet
4. Friction Loss – Resistance and loss of pressure due to the flow of water passes through the pipes and fittings within the pump system
5. * Friction loss can be found from reference table for standard pipe suppliers and manufacturers – provided charts for particular parts respectively
6. Total Dynamic Head – suction head + Discharge Head + Friction Loss
Once the values are determine, the pump can be sized according to the Required Amount of Water and Total Discharge head from Pump Characteristic Chart.
2. Suction Head – The vertical distance from water level to the centreline of the pump
3. Discharge Head – The vertical distance from the centreline of the pump to the final discharge outlet
4. Friction Loss – Resistance and loss of pressure due to the flow of water passes through the pipes and fittings within the pump system
5. * Friction loss can be found from reference table for standard pipe suppliers and manufacturers – provided charts for particular parts respectively
6. Total Dynamic Head – suction head + Discharge Head + Friction Loss
Once the values are determine, the pump can be sized according to the Required Amount of Water and Total Discharge head from Pump Characteristic Chart.
Specs
Size and Weight
- Height
- 240mm
- Width
- 239mm
- Depth
- 249mm
- Weight
- 7.2kg
Highly Durable
Reliable and Safe
Compact and Energy Efficient
Maximum Capacity (l/min)
-
45
Capacity at 12m (ll/min)
-
29
Maximum Total Head (m)
-
30
Power Suction (m)
-
9
Motor Power (W)
-
200
Switch On Pressure (Kgf/cm²)
-
1.1
Switch Off Pressure (Kgf/cme)
-
1.8
Suction Pipe [inch (mm)]
-
1 (25)
Push Pipe {inch (mm0}
-
1 (25)
Size (LxWxH) [mm]
-
249 x 239 x 240
Weight (kg)
-
7.2
