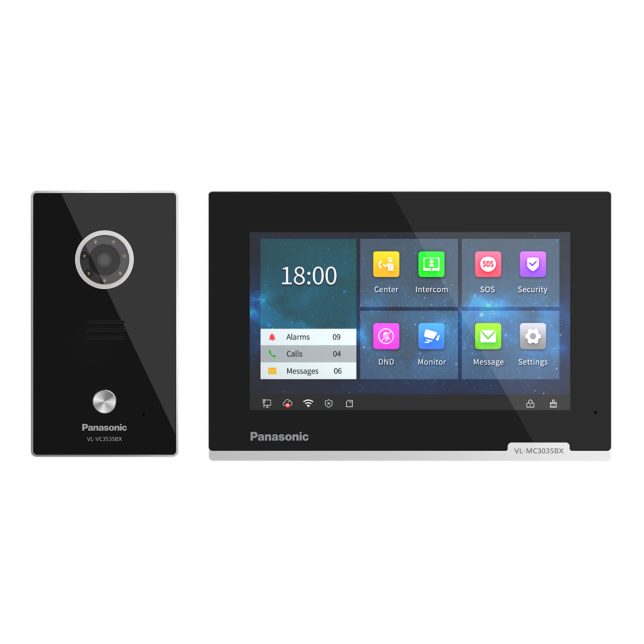

Standalone Video Intercom System for Family Homes
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
VL-SC3235
Safe, Secure & Convenient Living
Elevate your home security with advanced technology and seamless connectivity with the video intercom system for single house.
Features
Stay Connected from Anywhere
With the Video Intercom System that comes with Mobile App, you can monitor your front gate and communicate with visitors no matter where you are. Whether you’re at home or away, your security is at your fingertips.
Easy and Secure Remote Unlock
The Mobile App can remotely open the doors, so that you can let visitors or delivery drivers in when you're away.
Real-Time Surveillance
Monitor your Door Station. The system allows real-time video streaming from up to 6 mobile devices, ensuring comprehensive home surveillance.
Video and Voice Recording for Enhanced Safety
Record video and audio automatically during calls. You can revisit the playbacks for added security and peace of mind. Visitors can also leave messages.
SOS/Duress Functionality
Send out an SOS alert from the Room Monitor in case of emergencies, ensuring immediate action when needed.
Voice Changer for Greater Privacy
Safeguard your identity with the built-in voice changer, which allows female users to transform their voices to male in real-time during calls.
Specs
System Parameters
-
Operation System
-
Linux
-
-
Flash
-
128MB
-
-
RAM
-
64MB
-
-
Storage (MicroSD Card)
-
32GB (included)
-
Display Parameters
-
Size
-
7-inch wide colour display
-
-
Operation Method
-
Capacitive touch screen
-
-
Display Resolution
-
1024 x 600
-
Video Parameters
-
Video Codec
-
H.264 & H.265
-
-
Video Resolution
-
VGA, 720P
-
-
Camera Pixel
-
-
-
-
Minimum Illuminance
-
-
-
-
Camera Quantity
-
-
-
-
Viewing Angle
-
-
-
-
Lighting Method
-
-
-
Audio Parameters
-
Audio Compression
-
G.711
-
-
Speaker
-
8Ω / 0.5W
-
-
Microphone
-
-56 ± 2dB
-
Network Parameters
-
Wi-Fi
-
Supported (WLAN, 2.4GHz)
-
-
Wiring
-
UTP (Cat 5e or higher)
-
-
Protocol
-
IPv4; TCP/IP; ICMP; UDP; RTSP;
-
Device Parameters
-
Network Interface
-
RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
-
-
Power Out Port
-
12V, 200mA max
-
-
Doorbell Port
-
1
-
-
Lock Release
-
-
-
-
Door Status Port
-
-
-
Capacity
-
Linked IP Camera
-
6 (Private IPC)
-
-
Voice Messages
-
10
-
-
Intercom Logs
-
100
-
-
Alarm Logs
-
100
-
-
Recording
-
100 *With MicroSD card (video with audio)
-
-
Power Source
-
PoE (IEEE 802.3af compliant, Class 0 device) or Power supply unit (Sold separately)
-
-
Operating Voltage
-
PoE 48V or 12 to 27VDC
-
-
Current Rating
-
POE 48V, 160mA or DC 12V, 630mA; or DC 27V, 280mA
-
General
-
Power Consumption
-
Standby: 2.7W, Operating: 3.8W (excluding power out)
-
-
Installation Method
-
Surface mount with magnet
-
-
Colour
-

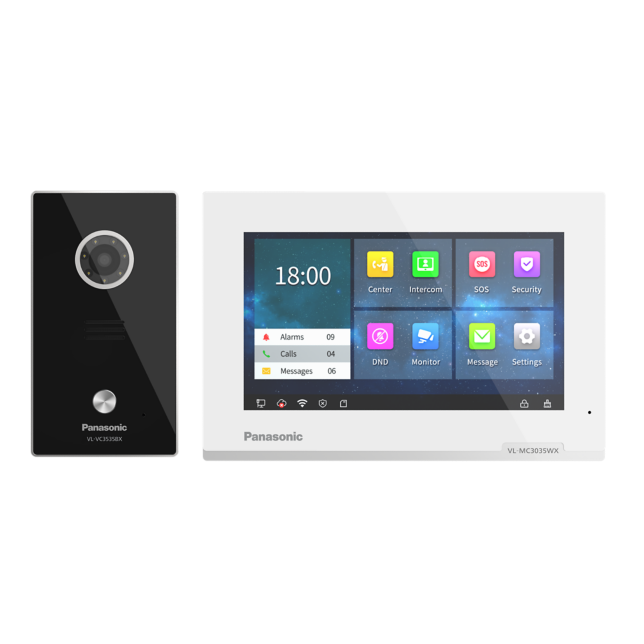

Black / White
-
-
Dimensions (H x W x D) (Excluding protruding sections)
-
Approx. 130mm x 194mm x 15.9mm
-
-
Operating Temperature
-
-25°C to +50°C
-
-
Storage Temperature
-
-40°C to +70°C
-
-
Operating Humidity
-
Up to 90% (non-condensing)
-
-
IP rating (Ingress Protection)
-
IP30
-
-
IK rating (Impact Protection)
-
-
-
-
Talking Method
-
Hands-Free
-
-
Display Language
-
English, Chinese, Vietnamese, Indonesian and Thai
-
-
Casing Material
-
PMMA + ABS
-
-
Weight
-
Without package: 330g | With package: 510g
-
Where to Buy
Learn About The Category
Get Support
for Standalone Video Intercom System for Family Homes
User Manual Download
- IP Video Intercom System – Room Monitor PDF – size 267 (KB)
User Manual Download
- IP Video Intercom System – Door Station PDF – size 222 (KB)
User Manual Download
- VL-SC3235
Operating Instructions (OI) PDF – size 2.0 (MB)
