CS/CU-RZ60XKR

See product page

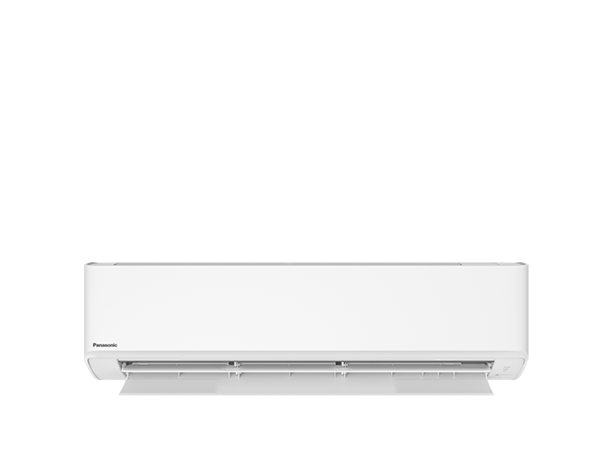

Photo of CS/CU-RZ60XKR

Model

  • CS-RZ60XKRW

Cooling Capacity (kW)

  • 6.00 (1.25-6.90)

Heating Capacity (kW)

  • 6.50 (0.98-8.20)

Air Flow (L/s)

  • 328/339

Dehumid (L/h)

  • 3.30

Running Current (A)

  • 7.90/8.00

Power Input (kW)

  • 1.85 (0.35-2.20)/1.89 (0.26-2.64)

AEER/EER (W/W)

  • 3.23/3.24

ACOP/COP (W/W)

  • 3.42/3.44

Star Rating

  • 3.5/5.5

Inside Sound Pressure Level (dB) (Hi/Lo/S-Lo)

  • 47/36/33

Outside Sound Pressure Level (dB) (Hi/S-Lo)

  • 49/44

Sound Power Level (db) (Hi/S-Lo)

  • 64/59

Net Weight – Indoor (Outdoor)

  • 12 (35)

Dimensions – Indoor (Outdoor) (h x w x d)

  • 295 x 1040 x 244mm/619 x 824 x 299mm

Refrigerant Pipe Diameter – Liquid Side (mm/(in))

  • 6.35 (1/4)

Refrigerant Pipe Diameter – Gas Side (mm/(in))

  • 12.70 (1/2)

Pipe Extension Length Min-Max (m)

  • 3~30

Pipe Length for Additional Gas (m)

  • 10

Additional Gas Amount (g/m)

  • 15

Power Supply

  • Outdoor

Operating Range (Outdoor) – Cooling (C)

  • -10 ~ +46

Operating Range (Outdoor) – Heating (C)

  • -15 ~ +24

Refrigerant Type

  • R32
