86” SR86AA-05 24/7 Panel

86" 24/7 4K Panel with RS232 Control

Easily present advertising, interactive information, and focused content on a 24/7 digital monitor with an Android SoC. These screens can be installed in either landscape or portrait orientation and controlled via RS232. It is ideal for shopping malls, retail stores, restaurants, art exhibitions, rail transit, and other industries.*
*The following product is distributed by Panasonic

Features

Meticulous Design
Versatile Installation

The SRAA Series can be installed in either landscape or portrait orientation, depending on the content you are displaying.
High Brightness and Wide Viewing Angle
The SRAA Series has a brightness level of 700 nits and a viewing angle of 178 degrees, making it perfect for most indoor settings, even in very bright rooms.
HDMI CEC Compatibility
The SRAA Series is compatible with HDMI CEC, which allows other HDMI CEC-enabled devices to communicate and control the panel.
Super Slim Bezel Design
The SRAA Series has an ultra-slim 7.9mm bezel all the way around the screen, so you can focus on your content, not the screen itself.
Anti-Reflective Coating
The SRAA Series has a 25% haze effect on the glass, which reduces external reflections without affecting picture quality or brightness.

Meticulous Design  Versatile Installation   The SRAA Series can be installed in either landscape or portrait orientation, depending on the content you are displaying.   High Brightness and Wide Viewing Angle   The SRAA Series has a brightness level of 700 nits and a viewing angle of 178 degrees, making it perfect for most indoor settings, even in very bright rooms.   HDMI CEC Compatibility   The SRAA Series is compatible with HDMI CEC, which allows other HDMI CEC-enabled devices to communicate and control the panel.   Super Slim Bezel Design   The SRAA Series has an ultra-slim 7.9mm bezel all the way around the screen, so you can focus on your content, not the screen itself.   Anti-Reflective Coating   The SRAA Series has a 25% haze effect on the glass, which reduces external reflections without affecting picture quality or brightness.

Specs

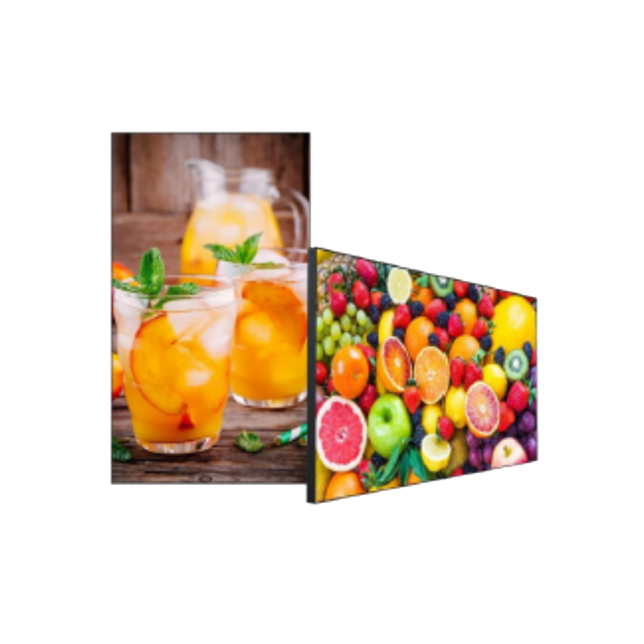

Photo of SR86AA-05

Size and Weight

Height
1088.1mm
Width
1917.1mm
Depth
62.1mm
Weight
45kg

UHD Resolution
Super Slim 7.9mm Even Bezel

Aluminum Frame Light Weight Design
700nits High Brightness

50,000 Hrs 7×24 Operation
Android 13

Landscape & Portrait Installation Support
HDMI No Signal Standby, Automatic Wake-up

Timing Switcher
CEC/RS232/TCP-IP Control /CMS

VESA Mounting Interface

Display

  • Screen Size (Diagonal)

    • 86 inch
  • Native Resolution

    • 3840 (H) × 2160 (V)
  • Aspect Ratio

    • 16 : 9
  • Brightness

    • 700nits
  • Contrast

    • ≥ 1200:1
  • View Angle

    • 178°(H) / 178°(V)
  • Display Colour

    • 16.7M
  • NTSC

    • >72%
  • Operation Time

    • 7 × 24H
  • Surface

    • 25% Haze, 3H
  • Life Time (Light Source)

    • 50,000 Hrs. (Typ.)

Interface

  • HDMI IN (2.0)

    • ×3 (HDMI1 ARC / HDMI 2/HDMI 3)
  • USB

    • USB 3.0×1, USB 2.0(OTG)×1
  • AUDIO OUT

    • 3.5mm Earphone ×1 , SPDIF×1
  • RS232(In/out)

    • RJ45 ×2
  • LAN Port

    • RJ45×1

Configuration

  • Solution

    • T982
  • CPU

    • A55*4, up to 1.9GHz
  • GPU

    • Multi-Core Mali-G52
  • RAM/ROM

    • 4/32G
  • OS

    • Android 13
  • LAN

    • 10/100M
  • WIFI

    • 802.11b/g/n(2.4G+5G) Removable
  • Bluetooth

    • BT5.0
  • Built-In Speaker

    • 10W×2

Power

  • Power supply

    • AC100-240V, 50/ 60Hz
  • Power consumption

    • 380W
  • Stand by

    • 0.6W

Environment

  • Operation Temperature

    • 0℃~50℃
  • Operation Humidity

    • 10%~85% RH
  • Storage Temperature

    • -20℃~60℃
  • Storage Humidity

    • 5%~95% RH

Physical

  • Color/Material

    • Black/Aluminum
  • Bezel Width(L/R/T/B)

    • 7.9mm
  • Set Outline Dimension(W×H×D)

    • 1917.1×1088.1×62.1mm
  • Package Dimension(W×H×D)Gravity carton

    • 2060×210×1235mm
  • Set Weight

    • 45KG
  • Packed Weight-Gravity carton

    • 68KG
  • VESA Mounting (mm)

    • 600×400
  • VESA Hole Size

    • 6mm
