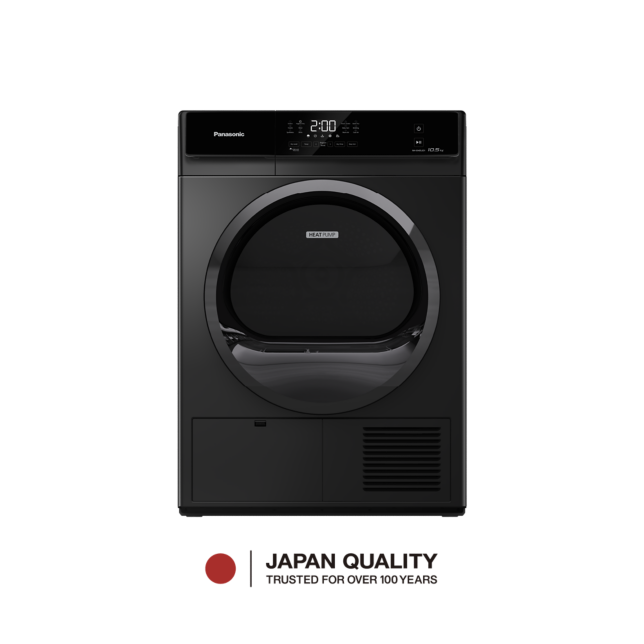

10.5 kg Gentle & Energy Efficient Drying Heat Pump Dryer NH-EH05JD1BS
CARE+ Edition
Heat Pump Tumble Dryer
NH-EH05JD1
Gentle & Energy Efficient Drying
Experience sustainable laundry care with our heat pump dryer. It gently dries clothes using minimal energy, simplifying your routine with a variety of options for any fabric type. Making every laundry day effortlessly efficient.
* All images are for illustrative purposes only.
Specs
Size and Weight
- Height
- 841mm
- Width
- 598mm
- Depth
- 654mm
- Weight
- 50kg
*Please check the minimum space requirements for installation.
Gentle Drying- Energy Saving
- Time Saving
- Hygienic Drying
- 99.99%* Bacteria Elimination
- Allergy Care
- Easy Iron
Drying Capacity: 10.5 kg
Gentle & Energy Efficient Drying - Heat Pump Technology
Smart Drying with Stable & Low Temperatures - Humidity & Temperature Sensors
Reduces Mites & Eliminates 99.99%*² of Bacteria - Hygienic Drying
Convenient Drying Modes
Flexible installation
Loading Capacity
-
Drying Capacity (kg)
-
10.5 kg
-
Basic Specifications
-
Dimension (W x D x H) mm
-
598 x 654 x 841
-
-
Door Diameter (mm)
-
488
-
-
Open door angle
-
150
-
-
Net weight (kg)
-
50
-
-
RPM
-
52
-
-
Drying system
-
Heat Pump
-
-
Voltage
-
220-240V
-
-
Frequency
-
50Hz
-
-
Power Plug
-
BF
-
-
Earth Wire
-
no need
-
-
Power
-
750W
-
-
Max. Drying Temp
-
72⁰C
-
-
Motor System
-
Non INV-AC
-
-
Compressor
-
Non INV-AC
-
-
Cord Length (m)
-
1.5
-
-
Humidity protection grade
-
IPX4
-
Design
-
Body Color
-
Black
-
-
Door Ring
-
Black Plastic
-
Features
-
Humidity Sensor
-
Yes
-
-
Defect Sensor
-
Yes
-
-
Thermal protection
-
Yes
-
-
Child Lock
-
Yes
-
Standard
-
Necessity to Apply
-
Necessary
-
-
Common Regulation
-
CB report
-
-
Applied regulation
-
-
-
-
(EL) Energy label
-
-
-
-
Noise (dB(A) re1pW)
-
≤62dB（A）
-
Control Panel
-
Control Type
-
Electronic
-
-
Button Type
-
Touch
-
-
Languages of Control Panel
-
English
-
-
LED
-
White
-
Programs
-
Number of program
-
12
-
-
Cotton
-
Yes
-
-
Quick Dry
-
Yes
-
-
Hygiene Dry
-
Yes
-
-
Bedding
-
Yes
-
-
Baby Care
-
Yes
-
-
Synthetics
-
Yes
-
-
Wool
-
Yes
-
-
Down jacket
-
Yes
-
-
Towel
-
Yes
-
-
Shirt
-
Yes
-
-
Warm Air
-
Yes
-
-
Cool Air
-
Yes
-
Optional Parts
-
Stacking System
-
Yes
-
NOTES
-
*¹ Panasonic R&D Internal Testing
47 % more time saving compared to a vented dryer by the Panasonic NH-E80JA1 in internal testing.
45 % more energy saving compared to a vented dryer by the Panasonic NH-E80JA1 in internal testing.
TEST CONDITION: Default drying course, Load: JEMA (ver. 2) cloths 5.0kg.
*² Test Report Hygiene drying procedure is tested as per WXg-24-3006/WXg-24-3007.
MODEL: NH-EH90JD1WM
TESTING INSTITUTION: CHEARI (Beijing) Certification & Testing Co., Ltd.
TESTING CONDITION: Programme: Hygiene Dry + Time (300min)/Base load weight: 3kg
REPORT ISSUE DATE: 20th/Feb/2024
Eliminating Bacteria rate: Staphylococcus aureus up to 99.99%, Escherichia coli up to 99.99%
*³ Up to 0.8kg
