LUMIX S 14-28mm F4-5.6 MACRO (S-R1428) L-Mount Lens

Price †$ 1,099.99

S-R1428

LUMIX S 14-28mm F4-5.6 MACRO

14-28mm ultra wide-angle zoom lens featuring half life-size macro photography.* Compatible with 77mm-diameter filters for video and photographic creativity.
*Maximum magnification of 0.5x (at focal length 28mm)
Zoom In
Zoom Out
Close

Features

One lens that meets many needs flexibly

A highly functional new zoom lens. From an ultra wide-angle of 14mm that can capture nature and buildings in powerful high definition, to 28mm for the depiction of natural perspective, and half macro photography (at focal length 28mm) that allows for close-up shots and delightful bokeh, this lens offers a wide range of options. The design is lightweight and compact and the overall length is unchanged, making it a very gimbal-friendly lens. An ultra wide-angle lens, it can be fitted with 77mm-diameter filters for optimal flexibility and creativity for photographers and videographers.
One lens that meets many needs flexibly

Half life-size macro photography

Utilizes a maximum magnification of 0.5x (at focal length 28mm) and a closest focusing distance of 0.15m, for excellent close-ups of everything from flowers to insects to table settings.
Half life-size macro photography

Dust, splash and freeze-resistant design

The LUMIX S 14-28mm F4-5.6 MACRO is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allowing you to shoot in temperatures as low as -10 °C.
・Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Dust, splash and freeze-resistant design

Ideal for video recording

The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.
Ideal for video recording

S-R1428 lens construction

The optimized configuration has 14 elements in 10 groups, including 1 ASPH/ED, 1 ASPH, 3 ED and 1 UHR lenses to minimize aberrations and ensure superb resolution.
S-R1428 lens construction

S-R1428 MTF chart

Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.
・For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
S-R1428 MTF chart

Get Inspired

Specs

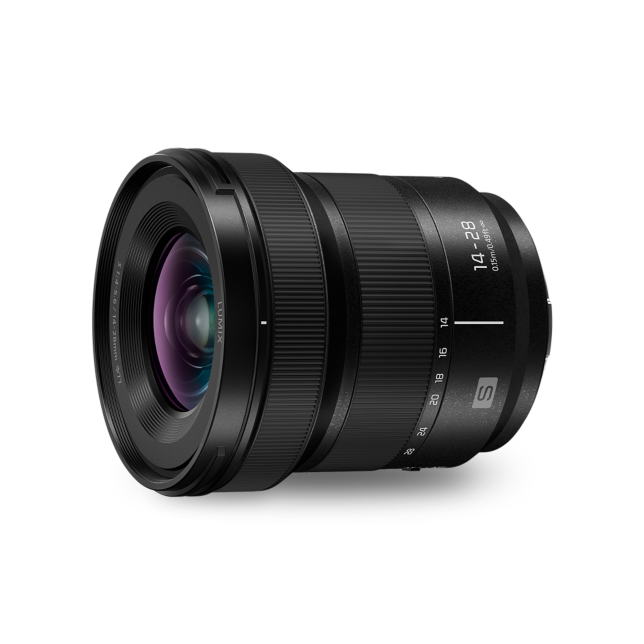

Photo of LUMIX S 14-28mm F4-5.6 MACRO (S-R1428) L-Mount Lens

Size and Weight

Height
84.0mm
Width
84.0mm
Depth
89.8mm
Weight
345g

Approximately. Weight excluding lens cap, lens rear cap and lens hood. Depth from the tip of the lens to the base side of the lens mount.

  • L-MountL-Mount
  • Dust / Splash / Freeze ResistantDust / Splash / Freeze Resistant

14-28mm ultra wide-angle zoom lens with a compact, lightweight design

Excellent close-up performance with a closest focusing distance of 0.15m and a maximum magnification 0.5x (at focal length 28mm)

φ77mm filter attachable

Lens Construction

  • 14 elements in 10 groups (1 aspherical ED lens, 1 aspherical lens, 3 ED lenses, 1 UHR lens)

Mount

  • L-Mount

Focal Length

  • f=14-28mm

Aperture Type

  • 7 diaphragm blades / Circular aperture diaphragm

Maximum Aperture

  • F4 (Wide) - F5.6 (Tele)

Minimum Aperture

  • F22

Closest Focusing Distance

  • 0.15m / 0.49ft

Maximum Magnification

  • 0.5x (at focal length 28mm)

Diagonal Angle of View

  • 114°(Wide) - 75°(Tele)

Dust and Splash Resistant

  • Yes*
    *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Recommended Operating Temperature

  • -10℃ to 40℃ (14℉ to 104℉)

Filter Size

  • φ77mm

Max. Diameter

  • φ84.0mm / 3.31inch

Overall Length

  • Approx. 89.8mm / 3.54inch (from the tip of the lens to the base side of the lens mount)

Weight

  • Approx. 345g / 0.77lb (excluding lens cap, lens rear cap and lens hood)

Standard Accessories

  • Lens cap, Lens rear cap, Lens hood
