CS/CU-KN24AKY

MRP(Inclusive of all Taxes):₹ 67,400.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-KN24AKY

Features

Powerful Mode

As temperatures rise outside, so will indoor temperatures. Being outdoors can keep you uncomfortable and sweaty. But that doesn't mean you have to prolong that discomfort after you set foot indoors. Panasonic air conditioners with POWERFUL mode delivers powerful cooling with strong airflow to cool a room quickly, providing an instant relief during hot days.
Powerful Mode

Shield Blu / 100% Copper

Enjoy life long comfort with Panasonic AC that feature 100% pure copper coils for faster heat transfer and resistance to corrosion. Panasonic designs its products to be user friendly so our customers can use them for a long time with confidence. Panasonic air conditioners come with Shield Blu technology, an extra anti-corrosive coating on the indoor unit. This prevents leakage & protects the copper tubing and doubles the life of heat exchangers.
Shield Blu / 100% Copper

Specs

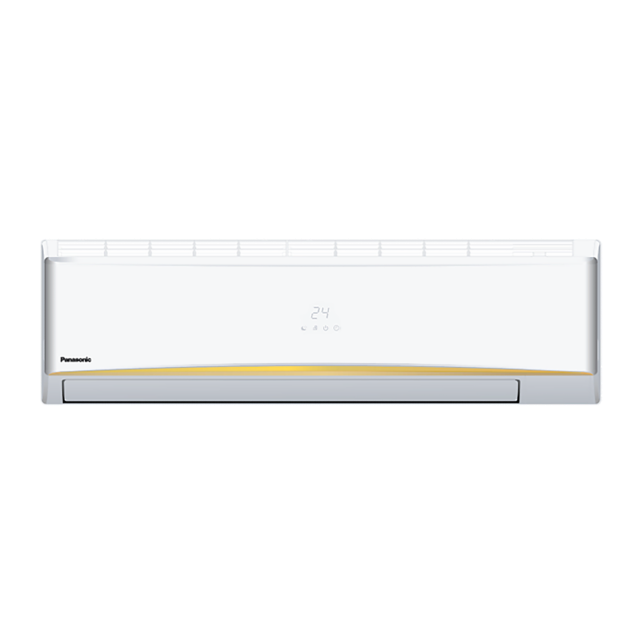

Photo of CS/CU-KN24AKY

Type

  • Cooling Only

Tonnage Class (TR)

  • 2.0

Model [50Hz]

  • CS/CU-KN24AKY

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 20813

Cooling Capacity Standard [Min. - Max.] (W)

  • 6100

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • -

Heating Capacity Standard [Min. - Max.] (W)

  • -

ISEER

  • 3.95

Annual Power Consumption (kWh)

  • 1195.22

Star Rating (★)

  • 3★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Frequency (Hz)

    • 50
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 7.1
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1544
  • Power Input, Standard Heating [Min. - Max.] (W)

    • -

Moisture Removal Rate (l/h)

  • 2.3

Moisture Removal Rate (Pt/h)

  • 4.8

Air Circulation (Indoor) (mᵌ/min)

  • 22.7

Air Circulation (Indoor) (ftᵌ/min)

  • 802

Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 110.0
  • Breadth (B) (cm)

    • 25.0
  • Height (H) (cm)

    • 33.0

Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 81.0
  • Breadth (B) (cm)

    • 30.1
  • Height (H) (cm)

    • 59.4

Noise Level

  • Indoor (H/Q) [dB-A]

    • 48/43
  • Outdoor [dB-A]

    • 60

Net Weight

  • IDU [ODU] (kg)

    • 14 [37]
  • IDU [ODU] (lb)

    • 30.9 [81.6]

Gross Weight

  • IDU [ODU] (kg)

    • 17.5 [42.5]
  • IDU [ODU] (lb)

    • 38.6 [93.7]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 52

Operating Volt. Range (V)

  • 170 - 265*

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø1.588

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 15
  • Maximum Elevation Length * (m)

    • 10
  • Additional Refrigerant Gas * (g/m)

    • 20

Power Supply Source

  • Indoor

In The Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual: 1N

Note

  • * Voltage range is as per standard testing condition, i.e. (ID: 27℃ - 19℃, ODU: 35℃ - 24℃)
