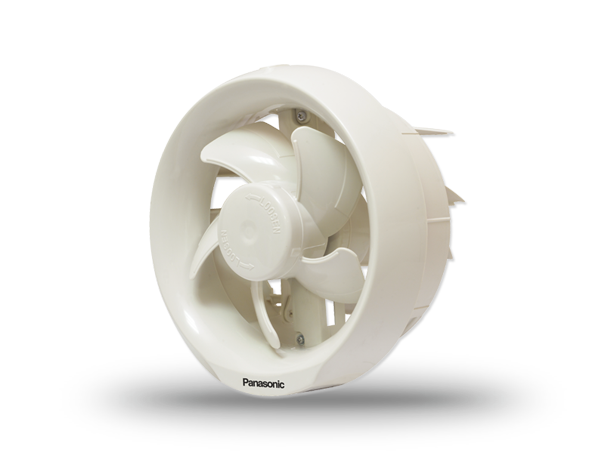

Auto Shutter Series

FV-15WA1	220/50hz	Air Volume	210 m³/h 124 CFM
		Consumption [W]	14
		RPM [min^-1]	1,900
		Noise [dB(A)]	43
	220/60hz	Air Volume	222 m³/h 131 CFM
		Consumption [W]	18
		RPM [min^-1]	1,950
		Noise [dB(A)]	44
	230/50hz	Air Volume	222 m³/h 131 CFM
		Consumption [W]	15
		RPM [min^-1]	1,950
		Noise [dB(A)]	44
	240/50hz	Air Volume	228 m³/h 134 CFM
		Consumption [W]	16
		RPM [min^-1]	1,980
		Noise [dB(A)]	44
	Weight [kg]		0.9
	Installation Space [mm]		Ø186-Ø188
FV-20WA1	220/50hz	Air Volume	380 m³/h 224 CFM
		Consumption [W]	15
		RPM [min^-1]	1,320
		Noise [dB(A)]	42
	220/60hz	Air Volume	380 m³/h 224 CFM
		Consumption [W]	17
		RPM [min^-1]	1,365
		Noise [dB(A)]	42
	230/50hz	Air Volume	390 m³/h 230 CFM
		Consumption [W]	16
		RPM [min^-1]	1,335
		Noise [dB(A)]	43
	240/50hz	Air Volume	402 m³/h 237 CFM
		Consumption [W]	17.5
		RPM [min^-1]	1,345
		Noise [dB(A)]	43
	Weight [kg]		1.4
	Installation Space [mm]		Ø247-Ø250
Note			For info on test conditions, please refer to the technical sheet.
