R32 Inverter NX Series Deluxe 4-Way Cassette

Delivers excellent air purification and convenience with a new IoT remote controller

R32 Inverter NX Series Deluxe 4-Way Cassettes are equipped with the latest nanoe X Generator Mark3 to provide the next level of air quality even in large spaces, and feature 360° comfortable airflow. A new IoT remote controller also provides greater accessibility and convenience.
  • nanoe X Generator Mark3
  • Comfort Cloud App
  • CONEX
  • Inverter
Zoom In
Zoom Out
Close
R32 Inverter NX Series Deluxe 4-Way Cassette

Features

Btu/h (rated)

17,100

20,500

24,200

34,100

42,700

47,800

42,700

47,800

Phase

1Ø Phase

1Ø Phase

1Ø Phase

1Ø Phase

1Ø Phase

1Ø Phase

3Ø Phase

Indoor Unit

S-18PU3QA

S-21PU3QA

S-24PU3QA

S-34PU3QA

S-43PU3QA

S-48PU3QA

S-3448PU3QA

Outdoor Unit

U-18PRH1Q6

U-21PRH1Q6

U-24PRH1Q6

U-34PRH1Q6

U-43PRH1Q6

U-48PRH1Q6

U-43PRH1Q9

U-48PRH1Q9

A New Level of Air Quality with nanoe X Generator Mark3

24-hour nanoe™ X Air Protection

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
24-hour nanoe™ X Air Protection

Higher Concentration, Even in Large Space

The amount of hydroxyl radicals generated increased 100 times, compared to the original nanoe™, which achieves greater effectiveness even in large spaces of 112 m².
Conditions of the simulation ・Room size: 112 m² ・Room height: 2.4 m ・Inspection model: 4-Way Cassette ・Position of IDU: Centre
Note: The result is based on the conditions for the simulation and it may differ from the concentration measured in an actual room. nanoe™ particles are extremely tiny in nano-meter size. They cannot be seen, so the concentration image is solely for illustrative purposes.
Higher Concentration, Even in Large Space

Effective at Eliminating Odours in Only 30 Minutes

The nanoe X Generator Mark3 reduces odours by as much as 1.8 levels* in just 30 minutes. This is half the time required to achieve the same effect compared to the conventional nanoe X Generator Mark 2.
*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more.
[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

**Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)
Effective at Eliminating Odours in Only 30 Minutes

Inside Cleaning Function Prevents Mould and Eliminates Odours

nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth and to reduce odours.
*If you wish to set the inside cleaning function off, use the wireless RC to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.
Inside Cleaning Function Prevents Mould and Eliminates Odours

Smart Power Saving with IoT

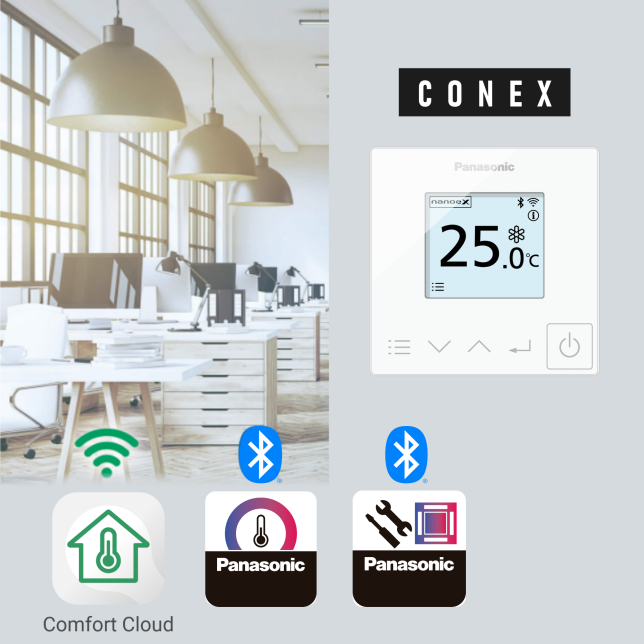

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

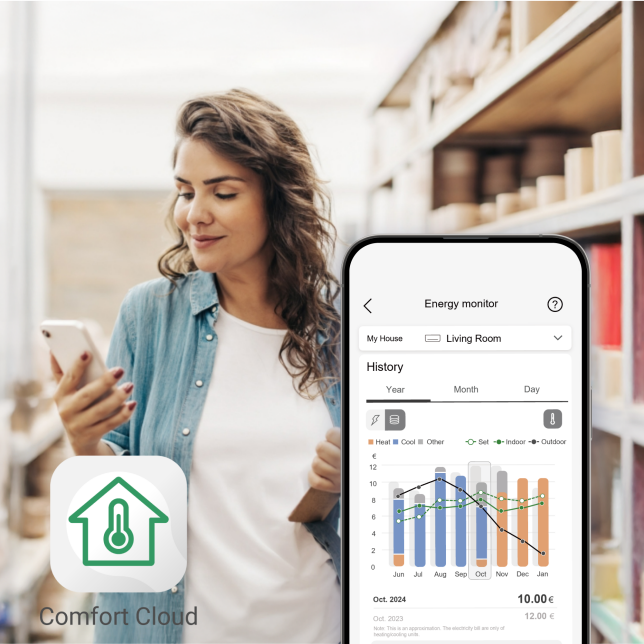

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.
Smart Management of Power Consumption

Industry-Leading Airflow for Cooling Comfort

Cools the Area Quickly

The Turbo Fan with Twisted 3D Blades delivers big and powerful airflow that instantly makes spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.
Cools the Area Quickly

Delivers Cool Air from High Ceilings

A wider main flap and sub-flap increase airflow, and a wider-angle jetting port creates a longer airflow. Cool air can reach from a maximum height of 5 meters, making even spaces with high ceilings and open spaces comfortable.
Note: 4-Way Cassette 3448PU type
Delivers Cool Air from High Ceilings

Cools Every Corner of Spaces

The air delivered in four directions from the wide flap creates a 360 degree airflow, spreading cool air to every corner of spacious environments. Thus, the entire room is cooled, ensuring the comfort of your customers and staff.
Cools Every Corner of Spaces

Double Insulation to Prevent Dew Condensation

The unit prevents water leaks due to condensation. The interior of the indoor unit of the air conditioner is cold, so when it comes into contact with hot air outside, condensation occurs, causing water leaks. Panasonic adopts insulation materials both inside and outside of the unit to guard against condensation and water leaks.
Double Insulation to Prevent Dew Condensation

Flat Horizontal Design That Conditions the Interior

Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.
Flat Horizontal Design That Conditions the Interior

Wireless, Wired Remote Controller

Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
*A wireless remote controller is in the same package with the indoor unit.
Wireless, Wired Remote Controller

Flexible and Easy Installation

The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.
A Drain Height of Up to 850 mm from the Ceiling Surface

The unit has been redesigned for easier installation. (1) Previously, the eye bolts were hard to attach because of the bracket’s shape. (2) By improving it to a V-shape, it is easier to install. (3) The nut has become larger, so it is easier to hold.
Easy Installation Design

Specs

S-18PU3QA

Photo of S-18PU3QA

S-21PU3QA

Photo of S-21PU3QA

S-24PU3QA

Photo of S-24PU3QA

S-34PU3QA

Photo of S-34PU3QA

S-43PU3QA

Photo of S-43PU3QA

S-48PU3QA

Photo of S-48PU3QA

S-3448PU3QA

Photo of S-3448PU3QA
  • nanoe X Generator Mark3nanoe X Generator Mark3
  • Comfort Cloud AppComfort Cloud App
  • CONEXCONEX
  • InverterInverter

Further advanced air purification technology, nanoe™ X by new Generator Mark3

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Industry-leading powerful, 360° wide & comfortable airflow

Powerful drain pump gives 850 mm lift

Wireless remote controller included

S-18PU3QA S-21PU3QA S-24PU3QA S-34PU3QA S-43PU3QA S-48PU3QA S-3448PU3QA
Air Volume 25.0 m³/min, 882 cfm 25.0 m³/min, 882 cfm 25.0 m³/min, 882 cfm 36.4 m³/min, 1,285 cfm 36.4 m³/min, 1,285 cfm 36.4 m³/min, 1,285 cfm 36.4 m³/min, 1,285 cfm
Sound Pressure Level (Hi/Lo) 42/35 dB (A) 42/35 dB (A) 42/35 dB (A) 47/41 dB (A) 47/41 dB (A) 47/41 dB (A) 47/41 dB (A)
Sound Power Level (Hi/Lo) 57/50 dB 57/50 dB 57/50 dB 62/56 dB 62/56 dB 62/56 dB 62/56 dB
Dimension (Indoor) H256 x W840 x D840 mm H256 x W840 x D840 mm H256 x W840 x D840 mm H319 x W840 x D840 mm H319 x W840 x D840 mm H319 x W840 x D840 mm H319 x W840 x D840 mm
Dimension (Panel) H44 x W950 x D950 mm H44 x W950 x D950 mm H44 x W950 x D950 mm H44 x W950 x D950 mm H44 x W950 x D950 mm H44 x W950 x D950 mm H44 x W950 x D950 mm
Net Weight (Indoor) 21 kg 21 kg 21 kg 24 kg 24 kg 24 kg 24 kg
Net Weight (Panel) 5 kg 5 kg 5 kg 5 kg 5 kg 5 kg 5 kg
