| TYPE |
Type |

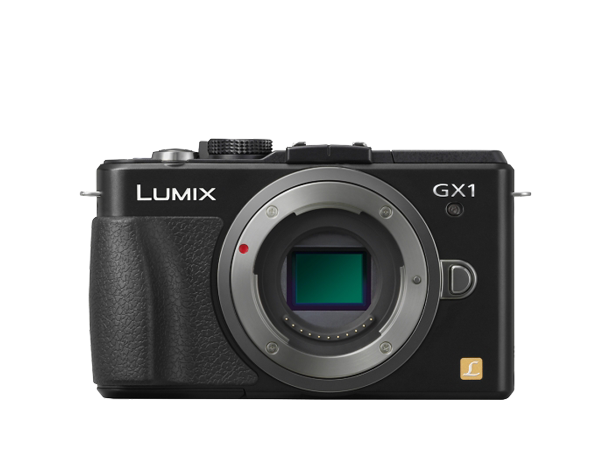

Digital interchangeable lens system camera |
| Recording media |
SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards) |
| Image sensor size |
17.3 x 13.0 mm (in 4:3 aspect ratio) |
| Lens Mount |
Micro Four Thirds mount |
| IMAGE SENSOR |
Type |
Live MOS Sensor |
| Total pixels |
16.68 Megapixels |
| Camera effective pixels |
16.0 Megapixels |
| Color filter |
Primary color filter |
| Dust reduction system |
Supersonic wave filter |
| RECORDING SYSTEM |
Recording file format |
Still Image: JPEG(DCF, Exif 2.3), RAW, |
| Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
| Image quality |
RAW, RAW+Fine, RAW+Standard, Fine, Standard, |
| Color Space |
sRGB, Adobe RGB |
| File size(Pixels) |
Still Image |
[4:3] 4592x3448(L) / 3232x2424(M) / 2272x1704(S) / 1824x1368(When attaching 3D lens in Micro Four Third System standard) |
| Motion Image (MP4* : NTSC) |
[VGA] 640x480, 30fps (sensor output is 30p) (Approx.4Mbps) |
| Motion Image (MP4* : PAL) |
[VGA] 640x480, 25fps (sensor output is 25p) (Approx.4Mbps) |
| Motion Image (AVCHD* : NTSC) |
[Full HD] 1920×1080, 60i (sensor output is 30p) (FSH:17Mbps) |
| Motion Image (AVCHD* : PAL) |
[Full HD] 1920×1080, 50i (sensor output is 25p) (FSH:17Mbps) |
| Continuous recordable time (Motion images) |
AVCHD with picture quality set to [FSH]: Approx. 140 min with H-PS14042 / Approx. 130 min with H-FS014042 / Approx. 150 min with H-H014 |
| Actual recordable time (Motion images) |
AVCHD with picture quality set to [FSH]: Approx. 70 min with H-PS14042 / Approx. 65 min with H-FS014042 / Approx. 75 min with H-H014 |
| FOCUS |
Type |
Contrast AF system |
| Focus mode |
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
| AF mode |
Face detection / AF Tracking / 23-area-focusing / 1-area-focusing/Pinpoint |
| AF detective range |
EV 0 - 18 (ISO100 equivalent) |
| AF assist lamp |
YES |
| AF lock |
Set the Fn button in custom menu to AF/AE lock or Shutter button halfway pressed in AFS mode |
| Others |
Quick AF, Continuous AF (during motion image recording), AF+MF, Touch shutter, Touch MF Assist |
| EXPOSURE CONTROL |
Light metering system |
144-zone multi-pattern sensing system |
| Light metering mode |
Intelligent Multiple / Center Weighted / Spot |
| Metering range |
EV 0 - 18 (F2.0 lens, ISO100 equivalent) |
| Exposure mode |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual, Auto |
| ISO sensitivity (Standard Output Sensitivity) |
Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step) |
| Exposure compensation |
1/3EV Step ±5EV |
| AE lock |
Set the Fn button in custom menu to AE lock |
| AE bracket |
3,5,7 frame, in 1/3, 2/3 or 1 EV Step, ±3 EV |
| WHITE BALANCE |
White balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Color temperature setting |
| White balance adjustment |
Blue/amber bias, Magenta/green bias |
| Color temperature setting |
2500-10000K in 100K |
| White balance bracket |
3 exposures in blue/ amber axis or in magenta/ green axis |
| SHUTTER |
Type |
Focal-plane shutter |
| Shutter speed |
Still Images: 1/4000 ~ 60 and Bulb (up to approx. 2 minutes) |
| Self timer |
10sec, 3 images/ 2sec / 10sec |
| Remote control |
Remote control with bulb function by DMW-RSL1 (Optional) |
| SCENE MODE |
Still Image SCN mode |
Portrait / Soft Skin / Scenery / Architecture / Sports / Peripheral Defocus / Flower / Food / Objects / Night Portrait / Night Scenery / Illiminatioms / Baby 1, 2 / Pet / Party / Sunset |
| Movie SCN mode |
Portrait / Soft Skin / Scenery / Architecture / Sports / Flower / Food / Objects / Low-light / Party / Sunset |
| CREATIVE CONTROL |
Creative control |
(Still image & Motion image) Expressive / Retro / High key / Low key / Sepia / High Dyamic / Toy effect / Miniature effect |
| BURST SHOOTING |
Burst speed |
SH: 20 frames/sec, H: 4.2 frames/sec (When AFS mode), M: 3 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| Number of recordable images |
9 images (when there are RAW files with the particular speed) |
| BUILT-IN-FLASH |
Type |
TTL Built-in-Flash, GN7.6 equivalent (ISO 160 ・m), Built-in Pop-up |
| Flash Mode |
Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, |
| Synchronization speed |
Less than 1/160 second |
| Flash output adjustment |
1/3EV Step ±2EV |
| Flash synchronization |
1st Curtain Sync / 2nd Curtain Sync |
| Hot shoe |
TTL Auto with FL220 / FL360 / FL500 (Optional) |
| ZOOM |
Additional zoom operation |
Touch Zoom (when use power zoom lenses*) *H-PS14042 lens and H-PS45175 lens |
| Digital zoom |
2x, 4x |
| LCD MONITOR |
LIVE VIEW functions |
Real-time Histogram |
| Type |
TFT LCD with Touch panel |
| Monitor size |
3.0inch / 3:2 Aspect / Wide-viewing angle |
| Pixels |
460K dots |
| Filed of view |
Approx. 100% |
| Monitor adjustment |
Brightness (7 levels), Contrast and Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels) |
| EXTRA TELE CONVERSION |
Extra Tele Conversion |
Motion image: Max.4.8x (Magnification ratio depends on the recording quality and aspect ratio.) |
| LEVEL GAUGE |
Level Gauge |
Yes (Built-in 3 shaft accelerometer sensor) |
| DIRECTION DETECTION FUNCTION |
Direction Detection Function |
Yes |
| FUNCTION BUTTON |
Fn1, Fn2, Fn3*, Fn4*(*Touch icons on LCD monitor) |
DIGITAL ZOOM / STABILIZER / SENSITIVITY / WHITE BALANCE / AF MODE /DRIVE MODE / MOTION PIC. SET / PICTURE MODE / HISTOGRAM / GUIDE LINE / REC AREA |
| CUSTOM MENUE |
C1, C2-1/2/3 |
Yes (Registering Personal Menu Settings) |
| PLAYBACK |
Playback mode |
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), Playback Mode (Normal/Picture/Video/3D Play/Category/Favorite), |
| IMAGE PROTECTION / ERASE |
Protection |
Single / Multi, Single in Burst Group / Multi in Burst Group, Cancel |
| Erase |
Single / Multi / All / Except Favorite |
| PRINT |
Direct Print |
PictBridge compatible（Print size, Layout, Date setting are selectable ） |
| INTERFACE |
USB |
USB 2.0 High Speed |
| HDMI |
miniHDMI TypeC |
| Audio video output |
Monaural Type, NTSC/PAL, NTSC only for North America |
| Remote |
Remote socket |
| Microphone |
Stereo, Wind-cut: Off / Auto |
| Speaker |
Monaural |
| LANGUAGE |
OSD language |
Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek |
| GENERAL |
Power |
Battery |
Li-ion Battery Pack (7.2V, 1010mAh) (Included) |
| Battery life (CIPA standard) |
Approx. 310 images with H-PS14042 |
| Dimensions (W x H x D) |
116.3 x 67.8 x 39.4 mm / 4.58 x 2.67 x 1.55 inch (excluding protrusions) |
| Weight |
Approx. 318g / 11.22 oz （SD card, Battery, Body) |
| Operating Environment |
Operating temperature |
0℃ to 40℃ (32°F to 104°F) |
| Operating humidity |
10% RH to 80％ RH |
| Standard Accessories |
Software |
PHOTOfunSTUDIO 7.0 HD Edition |
| NOTE |
* Use a card with SD Speed Class with "Class4" or higher |
