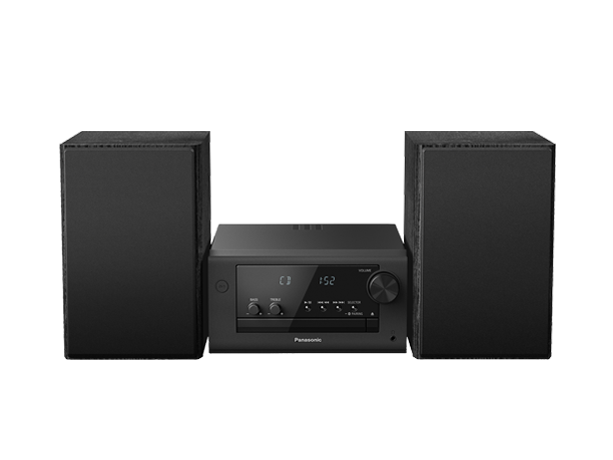

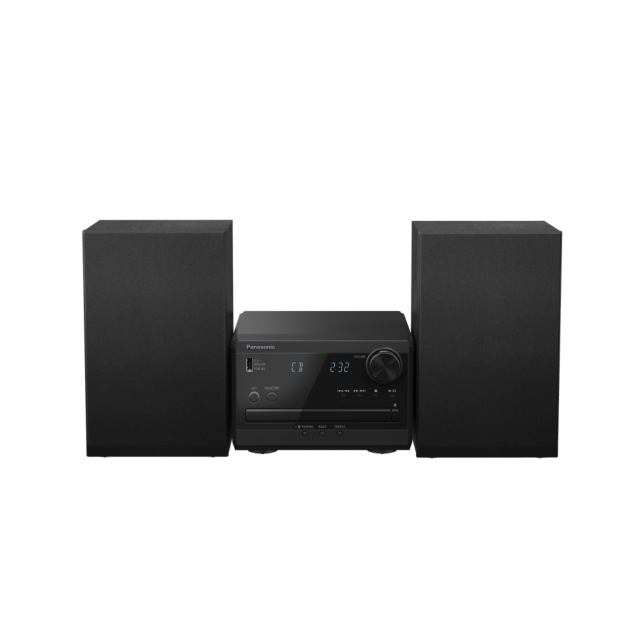

SC-PM270 Micro System with CD, Radio and Bluetooth®
SC-PM270
Your Music, Your Style, Your Choice
SC-PM270 is a sleek micro system for those of you who want to play their CDs or listen to the radio, have the flexibility to stream podcasts or playlists wirelessly from your phone, and hear everything in high quality stereo sound. And all in a flexible design that fits your real lives.
Features
Compact System, Clearly Good Sound
Thanks to its internal amplifier and a pair of separate speakers, the compact PM270 is big on performance. The speakers feature 10cm full-range drivers with bass reflex ports to comfortably deliver 20 watts of stereo sound.
The Small System that’s Big on Choice
Love the simplicity of radio and CD? Then choose PM270 with stereo FM tuner and CD player built-in. You can connect wirelessly to your mobile, with Bluetooth® for podcasts or playlists. Plus, USB connection adds listening choice.
Stream Playlists Wirelessly with Bluetooth®
Using built-in Bluetooth, PM270 can play audio wirelessly from your smartphone or tablet. Bluetooth Remaster helps compensate for audio frequencies lost by the convenience of wireless transmission, to achieve higher-quality sound. Listening to playlists and podcasts in clear room-filling stereo sound is so much more enjoyable.
Fresh Design, Flexible Placement
PM270’s sleek design will complement any bookshelf or cabinet-top. The separate speakers can be positioned to suit your needs, and to help spread the stereo sound. All excess clutter’s been removed to create a simple intuitive control surface.
Specs
Size and Weight
- Height
- 123mm
- Width
- 184mm
- Depth
- 231mm
- Weight
- 1.1kg
The size of the speaker is H224 × W139 × D136 mm and its weight is approximately 1.3 kg.
Total Output Power 20W- Bluetooth Re-Master
- CD
- USB (Play)
- FM
- Bluetooth®
Compact yet Clear Sound with 10 cm Speaker System with Bass Reflex Port
Enjoy Music Wirelessly with Bluetooth®
Sleek, Compact Design for Flexible Placement
Amplifier
-
Amp Type
-
2ch Amp
-
-
RMS Output Power
-
Total RMS Stereo Mode Power
-
20W
-
-
Front Speaker (Left / Right)
-
10W + 10W (1 kHz, THD 10%, 6Ω)
-
-
Speaker System
-
Front Speaker (Left / Right)
-
Type
-
1 Way, 1 Speaker System
-
-
Speaker Unit (Woofer)
-
Cone type 10cm
-
-
Speaker Unit (Tweeter)
-
-
-
-
Speaker Unit (Sup. Tweeter)
-
-
-
-
Bass Expand
-
Bass Reflex Port
-
-
CD
-
Playback Disc *¹
-
CD-R / RW
-
-
Format
-
CD-DA / MP3
-
Internal Memory
-
-
USB
-
Playback
-
Yes *²
-
-
USB Standard
-
USB 2.0 Full Speed
-
-
Playback Format
-
DSD
-
-
-
-
WAV, AIFF
-
-
-
-
FLAC
-
-
-
-
AAC
-
-
-
-
MP3
-
Yes (32, 44.1, 48kHz/16-320kbps)
-
-
-
Battery Charge
-
500mA
-
-
USB-DAC function
-
Playback Format
-
-
-
-
Player Application (Windows / Mac OS)
-
-
-
-
Radio
-
Station Presets
-
FM
-
30 Stations (87.9〜107.9MHz (200K step)), (87.5〜108MHz (100K step))
-
-
DAB Plus
-
-
-
-
AM
-
-
-
-
-
Radio Data System
-
-
-
-
Auto Tuning
-
Yes
-
-
Auto Preset
-
Yes
-
-
Antenna Terminal
-
75 ohm
-
Network
-
Bluetooth®
-
Version
-
Ver 4.2
-
-
Class
-
Class 2
-
-
Function
-
Wireless audio playback / Remote control
-
-
Codec
-
SBC
-
-
Connectivity
-
Multi-Pairing (MAX 8 Devices)
-
-
Bluetooth Standby
-
Yes
-
-
-
Wi-Fi
-
Wi-Fi
-
-
-
-
WLAN Standard
-
-
-
-
Frequency Range
-
-
-
-
DLNA
-
-
-
-
-
AirPlay
-
-
-
-
Chromecast built-in
-
Chromecast built-in Speaker grouping
-
-
-
-
Chromecast built-in Multi-zone
-
-
-
-
Chromecast built-in Stereo Pair
-
-
-
-
Chromecast built-in Wireless surround
-
-
-
-
-
Compatible with Google Assistant
-
-
-
-
works with Alexa
-
-
-
-
StreamUnlimited
-
SDK
-
-
-
-
Multi-room = Party Mode
-
-
-
-
Multi-zone
-
-
-
-
Re-transmission
-
-
-
-
Stereo Pair
-
-
-
-
-
Favourite Button
-
Main Unit
-
-
-
-
Remote
-
-
-
-
-
AUX-In Auto Play
-
-
-
-
NFC
-
-
-
-
Online Music Services
-
Spotify Connect
-
-
-
-
Airable
-
-
-
-
Sound Function
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
-
EQ
-
Preset EQ
-
Normal Preset EQ
-
-
Manual EQ
-
Bass / Treble
-
-
-
Surround
-
Yes
-
-
Karaoke
-
-
-
-
My Sound Setting
-
-
-
-
Clear-mode Dialog
-
-
-
-
XBS Master
-
-
-
-
High-Res AUDIO
-
-
-
-
Re-Master
-
CD High-Res Re-Master
-
-
-
-
Bluetooth Re-Master
-
Bluetooth Re-Master
-
-
MP3 Re-Master
-
-
-
-
USB Re-Master
-
-
-
-
Streaming Re-Master
-
-
-
-
Terminals
-
USB Port
-
USB Type-A x1
-
-
Audio IN
-
-
-
-
Audio OUT
-
-
-
-
Mic Jack
-
-
-
-
Speaker Terminal
-
Yes
-
-
LAN
-
-
-
General
-
Power Supply
-
AC 120V, 60Hz
-
-
Power Consumption *³
-
Normal Use
-
14 W
-
-
Bluetooth Standby Off
-
0.2 W
-
-
Bluetooth Standby
-
0.3 W
-
-
-
Display Type
-
LCD
-
-
Language Indication
-
Alphabet
-
-
Dimmer
-
Yes
-
-
Auto OFF
-
Yes
-
-
Timer
-
Sleep
-
Yes
-
-
Clock
-
Yes
-
-
Play Timer
-
Yes
-
-
Rec Timer
-
-
-
-
Dimension
-
Main Unit (W x H x D)
-
184 x 123 x 231 mm
-
-
Speaker Unit (W x H x D)
-
139 x 224 x 136 mm
-
Weight
-
Main Unit
-
1.1 kg
-
-
Speaker Unit
-
1.3 kg
-
Color
-
Black
Accessories
-
Remote Control
-
Yes
-
-
Dry Batteries for Remote Control
-
Not included.
-
-
AC Cord
-
Yes (1.5 m)
-
-
Operating Instruction
-
Yes
-
-
Quick Start Guide
-
-
-
Note:
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android™, etc.) using a USB extension cable.
*3 Specifications are subject to change without notice. All numbers given here are approximate.
