LEICA DG SUMMILUX 9mm / F1.7 ASPH. (H-X09) Micro Four Thirds Lens

H-X09

LEICA DG SUMMILUX 9mm / F1.7 ASPH.

A compact 9mm (35mm camera equivalent:18mm) large-aperture F1.7 fixed focal length lens featuring half life-size macro photography*
*Maximum magnification of 0.5x (35mm camera equivalent)
Zoom In
Zoom Out
Close

Features

LEICA DG Lens – ultimate optics

Opt for a LEICA DG lens and get the ultimate in optical quality and performance. They naturally meet the strict quality standards set by Leica Camera AG. Thanks to the sophisticated design of these lenses, you will enjoy brilliant clarity all the way to the edges of your photos. At the same time, distortions of all kind are prevented to enable precise, sharp picture rendering. This means you have the ideal tool for pro-level images in the palm of your hand.
・Leica is a registered trademark of Leica Microsystems IR GmbH.
LEICA DG Lens – ultimate optics

Ultra-wide-angle, large aperture and half life-size macro

Expand your lens collection with wider-angle flexibility, brightness, and macro capability without compromising on image quality. The new F1.7 LEICA DG has it all. It’s a 9mm (35mm camera equivalent: 18mm) ultra-wide-angle lens that fits 55mm filters and delivers half life-size macro photography* power. This one compact lens delivers truly high quality, exceling at everything from broad perspectives to close-ups, and delivering beautiful bokeh and low-light performance.
*Maximum magnification of 0.5x (35mm camera equivalent).
Ultra-wide-angle, large aperture and half life-size macro

Superb close-up performance

With a maximum magnification of 0.5x (35mm camera equivalent) this lens allows you to get up close and personal, capturing detail the naked eye might miss, with a closest focusing distance of 9.5cm. The bokeh created by the F1.7 aperture highlights expressive details in close-ups, and the 100° diagonal angle of view captures expansive backgrounds powerfully, giving this lens an unprecedented level of versatile power.
Superb close-up performance

Dust, splash and freeze-resistant design

LEICA DG SUMMILUX 9mm / F1.7 ASPH. is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allows you to shoot in temperatures as low as -10 °C.
・Dust- and splash-resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Dust, splash and freeze-resistant design

Ideal for video recording

The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.
Ideal for video recording

H-X09 lens construction

The optimized configuration has 12 elements in 9 groups, including 2 ASPH, 2 ED and 1 UHR lenses to minimize aberrations and ensure superb resolution.
H-X09 lens construction

H-X09 MTF chart

They meet the strict optical standards set by Leica Camera AG and offer outstanding sharpness and resolution from the center to the edges of the frame. Demonstrates uncompromising expressiveness.
・For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
H-X09 MTF chart

Get Inspired

Specs

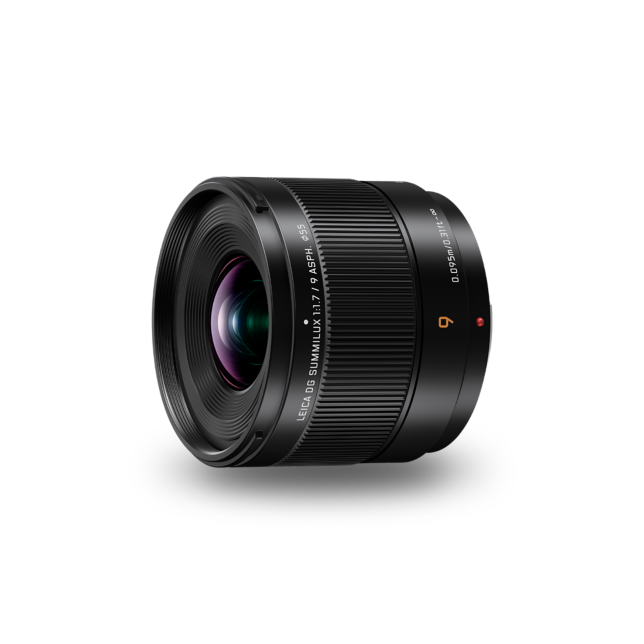

Photo of LEICA DG SUMMILUX 9mm / F1.7 ASPH. (H-X09) Micro Four Thirds Lens

Size and Weight

Height
60.8mm
Width
60.8mm
Depth
52.0mm
Weight
130g

Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.

  • Micro Four Thirds System StandardMicro Four Thirds System Standard
  • LEICA DG LensLEICA DG Lens
  • Dust / Splash / Freeze ResistantDust / Splash / Freeze Resistant

Based on Leica Camera AG's strict quality standards

9mm ultra-wide-angle (35mm camera equivalent: 18mm) and large aperture F1.7 fixed focal length lens

Excellent close-up performance with a closest focusing distance of 0.095m and a maximum magnification 0.5x (35mm camera equivalent)

Lens Construction

  • 12 elements in 9 groups (2 aspherical lenses, 2 ED lenses, 1 UHR lens)

Mount

  • Micro Four Thirds mount

Focal Length

  • f=9mm (35mm camera equivalent 18mm)

Aperture Type

  • 7 diaphragm blades / Circular aperture diaphragm

Maximum Aperture

  • F1.7

Minimum Aperture

  • F16

Closest Focusing Distance

  • 0.095m / 0.31ft

Maximum Magnification

  • 0.25x / 0.5x (35mm camera equivalent)

Diagonal Angle of View

  • 100°

Dust and Splash Resistant

  • Yes*
    *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Recommended Operating Temperature

  • -10℃ to 40℃ (14℉ to 104℉)

Filter Size

  • φ55mm

Max. Diameter

  • Approx. φ60.8mm / 2.39inch

Overall Length

  • Approx. 52.0mm / 2.05inch (from the tip of the lens to the base side of the lens mount)

Weight

  • Approx. 130g / 0.29lb (excluding lens cap, lens rear cap and lens hood)

Standard Accessories

  • Lens cap, Lens rear cap, Lens hood
