LUMIX GH5S Camera DC-GH5S

Tambahkan ke wishlistHapus dari wishlist

ANDA TIDAK DAPAT MENAMBAHKAN PRODUK LAIN

Anda sudah mencapai jumlah maksimum produk dalam wishlist

DC-GH5S

Enhancing Sensitivity. Empowering Creativity.

Sensitivitas tertinggi dan kualitas gambar terbaik dalam sejarah LUMIX memberi Anda kekuatan untuk menangkap dunia — dan mengubahnya.
Zoom In
Zoom Out
Close

Fitur

10.2MP Live MOS sensor with Dual Native ISO technology

10.2MP Live MOS Sensor dari LUMIX GH5S menampilkan teknologi Dual Native ISO yang dikembangkan untuk kamera cinema profesional Panasonic VariCam, memanfaatkan pengaturan ISO dual-base untuk meminimalkan noise dan memaksimalkan kualitas gambar dari sensitivitas rendah hingga tinggi. Sensor yang dipasangkan dengan Venus Engine menghasilkan ISO 51200 / Extended ISO 204800 maksimum untuk noise minimal pada sensitivitas tinggi dan tampilan area gelap yang indah dalam frame.
10.2MP Live MOS sensor with Dual Native ISO technology

Unlimited video recording, multiple modes

LUMIX GH5S menawarkan beberapa mode perekaman yang digunakan untuk cinema, penyiaran, dan aplikasi profesional lainnya. Selain C4K/4K 60p/50p, C4K 24p 4:2:2 10-bit ALL-Intra 400Mbps dan 4K 30p/25p/24p 4:2:2 Perekaman ALL-Intra 400Mbps 10-bit, perekaman tak terbatas ditawarkan di semua pengaturan.*
*Dengan syarat kamera berada di bawah lingkungan di mana pengoperasiannya dijamin dan berjalan dengan baterai. Waktu perekaman tergantung pada kapasitas baterai dan Memory Card SD. Perekaman mungkin berhenti secara otomatis untuk melindungi kamera.
Unlimited video recording, multiple modes

4:2:2 10-bit internal/external simultaneous recording

LUMIX GH5S mampu menghasilkan gambar real-time 4:2:2 10-bit ke monitor atau external recording melalui kabel HDMI opsional (Tipe A ukuran penuh), sekaligus menyediakan 4:2:2 10-bit internal recording secara bersamaan *. Sangat cocok untuk pembuatan video profesional yang memerlukan pemantauan citra yang akurat atau perekaman berkualitas tinggi ke perangkat codec eksternal.
*C4K/4K 60p/50p is output only.
4:2:2 10-bit internal/external simultaneous recording

RAW video data output

Firmware versi 2.0 memungkinkan output maksimum 59.94p 4K (4096x2160, 17:9) dan Anamorphic 3.7K (3680x2760, 4:3) data video RAW 12-bit melalui HDMI untuk menyimpannya sebagai Apple ProRes RAW di Atomos Ninja V Perekam monitor 4K HDR.
・ Semua fungsi mungkin tidak tersedia tergantung pada situasinya. ・Software yang mendukung Apple ProRes RAW diperlukan untuk mengedit video RAW yang direkam dengan NINJA V. ・ Apple dan ProRes adalah merek dagang atau merek dagang terdaftar dari Apple Inc. di Amerika Serikat dan / atau negara lain. ・ Ninja V / ATOMOS adalah merek dagang terdaftar dari ATOMOS Limited.
RAW video data output

Pre-installed V-Log L

V-Log L sudah terpasang sebelumnya untuk dynamic range 12 stop. Pengguna akan menikmati reproduksi warna yang sangat akurat dengan gradasi halus dari area gelap hingga highlight. Karena V-Log L memiliki karakteristik V-Gamut yang sama dengan V-Log, LUT yang digunakan dengan V-Log dapat digunakan dalam gradasi warna. Dan cuplikan dari kamera seri VariCam dapat disertakan dengan mulus dalam pengeditan.
V-Log/V-Gamut and LUTs
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
Pre-installed V-Log L

Multiple aspect ratios — LUMIX GH5S exclusive

Sensor LUMIX GH5S menangani beberapa rasio aspek; 4:3, 17:9, 16:9 dan 3:2. Berkat margin lebar dari piksel efektif, panjang fokus tidak berubah dalam rasio aspek ini. Tersedia untuk still photograpgy, video C4K dan 4K, dan dalam mode Anamorphic, fungsi ini memungkinkan Anda untuk sepenuhnya memanfaatkan sudut pandang lensa untuk ekspresi gambar yang benar-benar menakjubkan.
Multiple aspect ratios — LUMIX GH5S exclusive

14-bit RAW burst shooting

LUMIX GH5S memungkinkan Anda memilih RAW 14-bit. Dilengkapi dengan warna yang kaya dan gradasi halus dari sekitar 64 kali informasi warna RAW 12-bit, pemotretan burst maksimum 7-fps (AFC) / 11-fps (AFS) sangat memperluas jangkauan kreativitas Anda.*
*Maximum 8-fps (AFC) / 12-fps (AFS) burst shooting with 12-bit recording.
14-bit RAW burst shooting

Precise focusing even in -5EV situations

Performa AF low-light LUMIX yang terkenal telah berevolusi untuk memungkinkan pemotretan turun ke level -5EV. Hal ini memungkinkan Anda untuk fokus dengan tepat bahkan di bawah pencahayaan langit berbintang, ideal untuk memotret pemandangan alam malam hari dan dokumenter.
Precise focusing even in -5EV situations

Autofocus featuring AI technology

Teknologi kontrol canggih dari Panasonic meliputi sensor, engine, dan lensa LUMIX membantu mengoptimalkan kinerja optical dan focus. Sensor dan lensa berkomunikasi dengan kecepatan tinggi, bila dikombinasikan dengan teknologi DFD (Depth From Defocus) untuk mengidentifikasi dan mengunci subjek Anda. Teknologi deep learning memungkinkan pengenalan wajah, mata, kepala,* dan tubuh manusia, serta hewan (anjing, kucing, dan burung).**
*Perbarui firmware ke versi 2.0 atau versi terbaru. ** Harap perbarui firmware ke versi 1.4 atau versi terbaru.
Autofocus featuring AI technology

Tough body for a wide range of weather conditions

Bingkai full die-cast campuran magnesiumnya sangat tahan lama, sementara segelnya membantu melindungi setiap sambungan, dial, dan tombol. Kamera ini secara keseluruhan tahan debu dan percikan* dan didesain untuk digunakan pada suhu serendah -10 °C.
*Dust- and splash-resistant tidak menjamin bahwa kerusakan tidak akan terjadi jika kamera ini terkena kontak langsung dengan debu dan air.
Tough body for a wide range of weather conditions

Spesifikasi

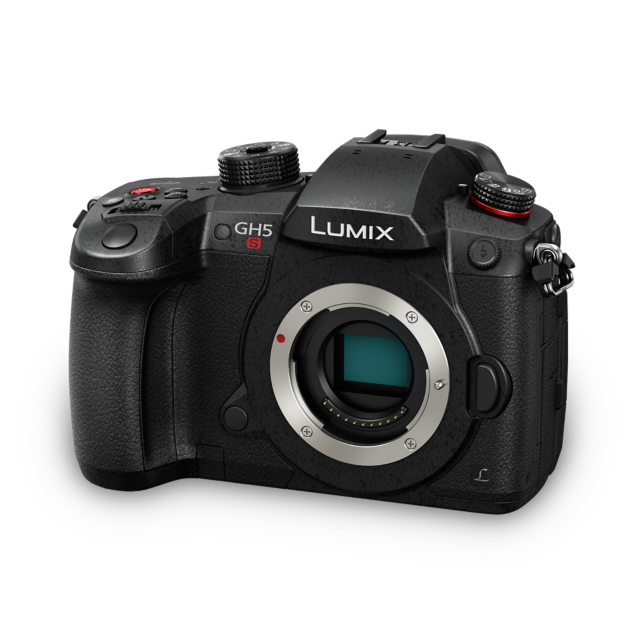

Photo of LUMIX GH5S Camera DC-GH5S

Ukuran dan Berat

Tinggi
98.1mm
Lebar
138.5mm
Kedalaman
87.4mm
Berat
660g

Semua nilai adalah perkiraan. Berat termasuk kartu SD dan baterai. Lensa tidak termasuk. Dimensi tidak termasuk tonjolan.

  • Standar Sistem Micro Four ThirdsStandar Sistem Micro Four Thirds
  • 10.2 Megapixels10.2 Megapixels
  • Multiple Aspect RatiosMultiple Aspect Ratios
  • 4K Video Recording Capability4K Video Recording Capability
  • V-Log LV-Log L
  • 3680k-dot OLED Live View Finder3680k-dot OLED Live View Finder
  • 1620k-dot Free-angle Monitor1620k-dot Free-angle Monitor
  • Splash, Dust and Freeze-resistantSplash, Dust and Freeze-resistant
  • Wi-FiWi-Fi
  • BluetoothBluetooth

10.2MP MOS sensor with Dual Native ISO technology and multiple aspect ratios

C4K/4K 60p/50p recording, V-Log L recording and unlimited recording time

RAW video data output (firmware version 2.0)

Precise focusing even in -5EV situations

TYPE

  • Type

    • Kamera DSLM (Digital Single Lens Mirrorless)
  • Recording media

    • SD Memory Card, SDHC Memory Card, SDXC Memory Card
      (Kompatibel dengan UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Card dan UHS-II Video Speed Class 60 standard SDXC Memory Card)
  • Image sensor size

    • 17,3 x 13,0 mm (dalam rasio aspek 4:3)
  • Lens mount

    • Dudukan Micro Four Thirds

IMAGE SENSOR

  • Type

    • Sensor Live MOS
  • Total pixels

    • 11.93 Megapixels
  • Camera effective pixels

    • 10.28 Megapixels
  • Color filter

    • Filter warna utama
  • Dust reduction system

    • Supersonic wave filter

IMAGE STABILIZATION SYSTEM

  • Image stabilization system

    • -

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31), RAW (14-bit / 12-bit)
      4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
  • File size (Pixels)

    • 4:3
      • 3680x2760(L) / 2592x1944(M) / 1824x1368(S) / 3328x2496(4K PHOTO)
    • 3:2
      • 3840x2560(L) / 2736x1824(M) / 1920x1280(S) / 3504x2336(4K PHOTO)
    • 16:9
      • 4016x2256(L) / 2816x1584(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
    • 1:1
      • 2752x2752(L) / 1936x1936(M) / 1360x1360(S) / 2880x2880(4K PHOTO)

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
      AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch)
  • System frequency

    • 59.94Hz, 50.00Hz, 24.00Hz
  • Aspect ratio

    • 4:3, 3:2, 16:9, 1:1
  • Image quality

    • RAW, RAW+Fine, RAW+Standard, Fine, Standard *RAW bit size is selectable from 14-bit or 12-bit.
  • Color space

    • sRGB, AdobeRGB
  • MOV (*1) (*2)

    • 59.94Hz
      • [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
    • 50.00Hz
      • [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
    • 24.00Hz
      • [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        [Full HD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
  • MP4 (*2)

    • 59.94Hz
      • [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
        [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
        [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
        [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
        [Full HD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
        [Full HD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
        [Full HD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
    • 50.00Hz
      • [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (AAC)
        [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
        [Full HD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
        [Full HD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
    • 24.00Hz
      • [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        [Full HD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Full HD] 1920x1080, 24.00p, 24Mbps (4:2:0 8-bit LongGOP) (AAC)
  • AVCHD Progressive / AVCHD (*2)

    • 59.94Hz
      • [Full HD] 1920x1080, 59.94p, 28Mbps (LongGOP) (Dolby)
        [Full HD] 1920x1080, 59.94i, 24Mbps (LongGOP) (Dolby) (Sensor output is 29.97fps)
        [Full HD] 1920x1080, 59.94i, 17Mbps (LongGOP) (Dolby) (Sensor output is 59.94fps)
        [Full HD] 1920x1080, 23.98p, 24Mbps (LongGOP) (Dolby)
    • 50.00Hz
      • [Full HD] 1920x1080, 50.00p, 28Mbps (LongGOP) (Dolby)
        [Full HD] 1920x1080, 50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
        [Full HD] 1920x1080, 50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)
  • Variable frame rate

    • 59.94Hz
      • MOV/MP4(LPCM)/FHD/59.94p
        2, 30, 56, 58, 60, 62, 64, 90, 120, 150, 180, 210, 240 fps
        MOV/MP4(LPCM)/4K/29.97p, MOV/MP4(LPCM)/C4K/29.97p, AVCHD/FHD/29.97p
        2, 15, 26, 28, 30, 32, 34, 45, 60 fps
        MOV/MP4(LPCM)/FHD/29.97p
        2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, 105, 120, 135, 150, 165, 180, 195, 210, 225, 240 fps
        MOV/MP4(LPCM)/4K/23.98p, MOV/MP4(LPCM)/C4K/23.98p, AVCHD/FHD/23.98p
        2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
        MOV/MP4(LPCM)/FHD/23.98p
        2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180, 192, 204, 216, 228, 240 fps
    • 50.00Hz
      • MOV/MP4(LPCM)/FHD/50.00p
        2, 25, 46, 48, 50, 52, 54, 75, 100, 125, 150, 200, 240 fps
        MOV/MP4(LPCM)/4K/25.00p, MOV/MP4(LPCM)/C4K/25.00p, AVCHD/FHD/25.00p
        2, 12, 21, 23, 25, 27, 30, 37, 60 fps
        MOV/MP4(LPCM)/FHD/25.00p
        2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 87, 100, 112, 125, 137, 150, 175, 200, 225, 240 fps
    • 24.00Hz
      • MOV/MP4(LPCM)/C4K/24.00p, MOV/MP4(LPCM)/4K/24.00p
        2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
        MOV/MP4(LPCM)/FHD/24.00p
        2, 12, 20, 22, 24, 26, 28, 36, 48, 60, 72, 84, 96, 108, 120, 132, 144, 156, 168, 180, 192, 204, 216, 228, 240 fps
  • High-Resolution Anamorphic mode, MP4 (4:3) (*2)

    • 59.94Hz
      • 3328x2496, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        3328x2496, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        3328x2496, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        3328x2496, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        3328x2496, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
    • 50.00Hz
      • 3328x2496, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
        3328x2496, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        3328x2496, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
    • 24.00Hz
      • 3328x2496, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM, High-Res Audio)
        3328x2496, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM, High-Res Audio) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM, High-Res Audio)
  • Anamorphic 4K mode, MOV (4:3) (*1) (*2)

    • 59.94Hz
      • 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    • 50.00Hz
      • 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    • 24.00Hz
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
  • Continuous recordable time (Motion picture) (*2)

    • AVCHD [FHD/60p]: Approx. 130 min (rear monitor), 130 min (LVF) with H-FS12060
      AVCHD [FHD/60i]: Approx. 130 min (rear monitor), 130 min (LVF) with H-FS12060
      MP4 [4K/60p]: Approx. 120 min (rear monitor), 120 min (LVF) with H-FS12060
      MP4 [4K/30p]: Approx. 120 min (rear monitor), 110 min (LVF) with H-FS12060
    • AVCHD [FHD/60p]: Approx. 130 min (rear monitor), 130 min (LVF) with H-FS12060
      AVCHD [FHD/60i]: Approx. 130 min (rear monitor), 130 min (LVF) with H-FS12060
      MP4 [4K/60p]: Approx. 120 min (rear monitor), 120 min (LVF) with H-FS12060
      MP4 [4K/30p]: Approx. 120 min (rear monitor), 110 min (LVF) with H-FS12060
  • Actual recordable time (Motion picture) (*2)

    • AVCHD [FHD/60p]: Approx. 65 min (rear monitor), 65 min (LVF) with H-FS12060
      AVCHD [FHD/60i]: Approx. 65 min (rear monitor), 65 min (LVF) with H-FS12060
      MP4 [4K/60p]: Approx. 60 min (rear monitor), 60 min (LVF) with H-FS12060
      MP4 [4K/30p]: Approx. 60 min (rear monitor), 55 min (LVF) with H-FS12060
    • AVCHD [FHD/60p]: Approx. 65 min (rear monitor), 65 min (LVF) with H-FS12060
      AVCHD [FHD/60i]: Approx. 65 min (rear monitor), 65 min (LVF) with H-FS12060
      MP4 [4K/60p]: Approx. 60 min (rear monitor), 60 min (LVF) with H-FS12060
      MP4 [4K/30p]: Approx. 60 min (rear monitor), 55 min (LVF) with H-FS12060
  • Anamorphic 4K mode, MP4 (4:3) (*2)

    • 59.94Hz
      • 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    • 50.00Hz
      • 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
    • 24.00Hz
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (LPCM)
        24.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM) / 100Mbps (4:2:0 8-bit LongGOP) (LPCM)

HDMI RAW DATA OUTPUT (*7) (*8)

  • Compatible external devices

    • ATOMOS Ninja V 4K HDR Monitor-Recorder (*7)
      *Mode perekaman yang dapat dipilih tergantung pada versi firmware Atomos Ninja V.
      *Silakan merujuk ke situs web Atomos untuk informasi tentang versi firmware Atomos Ninja V yang sesuai.
      *Perangkat lunak yang mendukung Apple ProRes RAW diperlukan untuk mengedit video RAW yang direkam dengan NINJA V. Terapkan LUT (Tabel pencarian) yang tersedia di situs dukungan pelanggan berikut untuk membuat penilaian warna yang sama dengan V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *Semua fungsi mungkin tidak tersedia tergantung pada situasinya.

      Blackmagic Video Assist 5"" 12G HDR, Blackmagic Video Assist 7"" 12G HDR (*8)
      *Mode perekaman yang dapat dipilih tergantung pada versi firmware Blackmagic Video Assist 12G HDR.
      *Silakan merujuk ke situs web Blackmagic Design untuk informasi tentang versi firmware yang sesuai dari Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve atau DaVinci Resolve Studio diperlukan untuk memutar dan mengedit data Blackmagic RAW. DaVinci Resolve Studio diperlukan untuk mengirimkan proyek menggunakan data Blackmagic RAW dalam resolusi di atas 3840x2160.
      *Semua fungsi mungkin tidak tersedia tergantung pada situasinya.
  • Rec quality

    • 59.94Hz
      • [4K] 4096x2160 (17:9), 59.94p, 12-bit (LPCM, High-Res Audio)
        [4K] 4096x2160 (17:9), 29.97p, 12-bit (LPCM, High-Res Audio)
        [4K] 4096x2160 (17:9), 23.98p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.7K] 3680x2760 (4:3), 59.94p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.7K] 3680x2760 (4:3), 29.97p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.7K] 3680x2760 (4:3), 23.98p, 12-bit (LPCM, High-Res Audio)
    • 50.00Hz
      • [4K] 4096x2160 (17:9), 50.00p, 12-bit (LPCM, High-Res Audio)
        [4K] 4096x2160 (17:9), 25.00p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.7K] 3680x2760 (4:3), 50.00p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.7K] 3680x2760 (4:3), 25.00p, 12-bit (LPCM, High-Res Audio)
  • Audio format

    • LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *Audio beresolusi tinggi hanya dapat dipilih saat menggunakan DMW-XLR1 (dijual terpisah).

WIRELESS

  • Wi-Fi

    • Wi-Fi2.4GHz (STA/AP) (IEEE802.11b/g/n)
      Wi-Fi5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
  • QR code connection / Password-less connection

    • Yes / Yes (ON / OFF selectable)

VIEWFINDER

  • Type

    • OLED Live View Finder (3,680k dots)
  • Field of view

    • Approx. 100%
  • Magnification

    • Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-¹
  • Eye point

    • Perkiraan 21 mm dari eyepiece lens
  • Diopter adjustment

    • -4.0 - +3.0 (dpt)
  • Eye sensor

    • Ya
  • Display speed

    • 120fps / 60fps

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Free-angle 3.2-inch (8.0cm) / 3:2 aspect
  • Pixels

    • Perkiraan 1,620k dots
  • Field of view

    • Approx. 100%
  • Monitor adjustment

    • Brightness, Contrast, Saturation, Red-Green, Blue-Yellow

FOCUS

  • Type

    • Contrast AF system
  • DFD technology

    • Ya
  • Post Focus

    • Ya
  • Focus Stacking

    • Ya
  • Focus mode

    • AFS (Single) / AFF (Fleksibel) / AFC (Kontinu) / MF
  • AF mode

    • Auto Detection (Face, Eye, Body (*6), Animal (*6)) / Tracking / 225-Area / Custom Multi / 1-Area* / Pinpoint *Human/Animal Detection AF can be set ON or OFF. (*7)
      (Full area touch is available) (Scalable AF frame size and flexible AF position)
  • AF detective range

    • EV -5 - 18 (ISO100 equivalent)
  • AF assist lamp

    • Ya
  • AF lock

    • Yes (AF/AE LOCK button)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • Focus ring control (*8)

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
  • Others

    • One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted (*6)
  • Metering range

    • EV0-18 (lensa F2.0, setara ISO100)
  • Exposure mode

    • Program AE, Aperture Priority AE, Shutter Priority AE, Manual
  • ISO sensitivity (Standard output sensitivity)

    • Still image: Auto / Intelligent ISO / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
      Creative Video Mode: Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
  • Dual Native ISO

    • [Normal]
      Native ISO: 400, 2500
      Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* (VFR: Auto / 80* / 100* / 160-51200 / 102400* / 204800*) *Extended ISO
      Low: Auto / 80* / 100* / 160-800 (VFR: Auto / 80* / 100* / 160-1250) *Extended ISO
      High: Auto / 800-51200 / 102400* / 204800* (VFR: Auto / 1250-51200 / 102400* / 204800*) *Extended ISO

      [V-LogL]
      Native ISO: 800, 5000
      Auto: Auto / 320-25600 (VFR: Auto / 320-25600)
      Low: Auto / 320-1600 (VFR: Auto / 320-2500)
      High: Auto / 1600-25600 (VFR: Auto / 2500-25600)

      [HLG]
      Native ISO: 800, 5000
      Auto: Auto / 320-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 320-1600
      High: Auto / 1600-51200 / 102400* / 204800* *Extended ISO
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • AE lock

    • Yes (AF/AE LOCK button)

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw (*6) / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10.000K dalam 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic shutter: 1/16,000 - 1
      Motion picture: 59.94Hz: 1/16,000 - 1/30, 50.00Hz: 1/16,000 - 1/25, 23.98Hz: 1/16,000 - 1/24 (Saat menggunakan Synchro Scan)
  • Shutter life

    • Perkiraan 200,000 image
  • Self timer

    • 10sec, 3 images / 2sec / 10sec
  • Remote control

    • Remote control dengan fungsi Bulb oleh DMW-RSL1 (dijual terpisah)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture bracket

    • 3, 5 or all positions in 1 EV step
  • Focus bracket

    • 1 hingga 999 gambar, langkah fokus dapat diatur dalam 10 tingkat
  • White balance bracket

    • 3 eksposur dalam axis biru/amber atau dalam axis magenta/hijau, pengaturan suhu warna

BURST SHOOTING

  • Burst speed

    • [14-bit]
      AFS/MF: H: 11 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
      AFF/AFC: H: 7 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
      [12-bit]
      AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
      AFF/AFC: H: 8 frames/sec (with Live View), M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
  • Number of recordable images

    • Lebih dari sekitar 80 image (bila ada file RAW dengan kecepatan tertentu.)
      Lebih dari kira-kira. 600 image (bila tidak ada file RAW dan menggunakan kartu dengan SD Speed ​​Class dengan ""UHS-II UHS Speed ​​Class 3 (U3)"".)
      (tergantung pada ukuran memory card, daya baterai, ukuran gambar, dan kompresi)

4K PHOTO (*2)

  • Burst speed

    • 60 frames/sec, 30 frames/sec
  • Exif information

    • Ya (tiap gambar JPEG dipotong dari file 4K burst sesuai dengan EXIF.)
  • Marking function

    • Yes (dalam 4K Burst (S/S) mode)
  • Loop rec function

    • Yes (dalam 4K Burst (S/S) mode)

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash mode

    • Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off *For iA, iA+ only.
  • Synchronization speed

    • Less than 1/250 second
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Synchronization for flash dimming and exposure compensation

    • Ya
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
  • Flash sync socket

    • Ya

LIVE VIEW

  • Digital zoom

    • 2x, 4x
  • Extra Tele Conversion

    • Still image: Max. 2x
      Motion picture: 2.1x (FHD)
  • Other functions

    • Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Video Guide Line (Frame Aspect (10 patterns *7) / Frame Color (*7) / Frame Mask (*7) ), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)

DIRECTION DETECTION FUNCTION

  • Direction detection function

    • Ya

FUNCTION BUTTON

  • REC

    • Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / AF-ON: Near Shift (*6) / AF-ON: Far Shift (*6) / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / 1 Shot 4K PHOTO / Operation Lock / Dial Operation Switch / Destination Slot / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / RAW Bit Size / AFS/AFF / Metering Mode / Burst Rate / 4K PHOTO / Self Timer / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / 4K Live Cropping / Motion Pic. Rec Format / Motion Pic. Rec Quality / Variable Frame Rate / Picture Mode in Rec. / Synchro Scan / Time Code Display / Sound Rec Level Adj. / Mic. Directivity Adjust / HLG View Assist (HDMI) / Color Bars / WFM/Vector Scope / Anamorphic Desqueeze Display / HLG View Assist / LUT Monitor Display / LUT HDMI Display / Focus Transition / Silent Mode / Peaking / Histogram / Guide Line / Video Guide Line / Zebra Pattern / Monochrome Live View / Constant Preview / Live View Boost / Rec Area / Video-Priority Display / Focus Ring Control (*8) / Step Zoom / Zoom Speed / Night Mode / Exposure Comp. / Sensitivity / White Balance / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / Restore to Default / Focus Ring Lock (*5) / E-Stabilization (Video) (*5) / Sound Rec Level Disp. (*5)
  • PLAY

    • Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Slot Change / 4K PHOTO Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 4K PHOTO Bulk Saving / Copy / Anamorphic Desqueeze Display / HLG View Assist / HLG View Assist (HDMI) / LUT Monitor Display / LUT HDMI Display / Night Mode / Off / Restore to Default

FILTER

  • Photo style

    • Standard / Vivid / Natural / Monochrome / L. Monochrome / L. Monochrome D (*5) / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / Like709 / Hybrid Log Gamma* / V-LogL
      *When Mode Creative Video is selected.
  • Creative control

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect** / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
      *For photos only. **Not available in 4:2:2 10-bit video or C4K/4K video recording.

MOTION PICTURE FUNCTION

  • Vertical Position Information (*7)

    • ON / Off
  • Master pedestal level

    • 31 langkah
  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023
  • Wave form monitor / Vectorscope

    • Dapat dipilih
  • LUT display

    • LUT Monitor Display / LUT HDMI Display
  • Synchro scan

    • Ya
  • Time code

    • Penghitungan: Pilihan Rec Run/Free Run, Mode Kode Waktu: Pilihan Drop frame/Non-drop frame (Bila frekuensi sistem [59,94Hz] dipilih.)
  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
  • Color bars / 1kHz test tone

    • Ya (SMPTE / EBU / ARIB) / Ya
  • Knee control

    • Ya (dalam mode Like709)
  • Red REC Frame Indicator (*7)

    • Ya

PLAYBACK

  • Playback mode

    • 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, RAW Processing, 4K PHOTO Bulk Saving, 4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Anamorphic Desqueeze Display, HLG View Assist, LUT Monitor Display, LUT HDMI Display, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture
  • Protection

    • Single / Multi or Cancel
  • Delete

    • Single / Multi / All / Except Rating
  • Print

    • Kompatibel dengan PictBridge

INTERFACE

  • USB

    • USB Type-C, SuperSpeed USB 3.1 Gen1
  • HDMI (*3)

    • Monitor-through
      • 4:2:2 10-bit (Bila [Req Quality] diatur ke [4:2:2 10bit] atau saat [Req Quality] diatur ke [C4K/60p]/[C4K/50p]/[4K/ 60p]/[4K/50p] dan [Mode Bit 4K/60p]/[Mode Bit 4K/50p] diatur ke [4:2:2 10bit] Saat [C4K/60p]/[C4K/50p]/[ Mode 4K/60p]/[4K/50p] dipilih di [Req Quality], tidak mungkin merekam motion picture atau still image pada memory card SD di unit kamera.)
        4:2:2 8bit (Bila [Req Quality] diatur ke [4:2:0 8bit], kecuali untuk [C4K/60p]/[C4K/50p]/[4K 60p]/[4K/50p])
        4:2:0 8bit (Bila [Req Quality] diatur ke [C4K/60p]/[C4K/50p]/[4K/60p]/[4K/50p] dan [Mode Bit 4K/60p]/[4K/ Mode Bit 50p] diatur ke [4:2:0 8bit].)
        Otomatis / 4K/30p/25p / 1080p / 1080i / MATI
        Tampilan informasi ON/OFF (dapat dipilih)
        HLG View Assist (HDMI) AUTO / MODE1 / MODE2 / OFF (dapat dipilih)
        Konversi turun otomatis
    • Playback
      • HDMI Tipe A / VIERA Link, Audio: Stereo
        59,94Hz: Otomatis / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
        50,00Hz: Otomatis / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
        24,00Hz: Otomatis / C4K/24p / 4K/24p / 1080p
  • Audio video output

    • Tidak
  • Remote input

    • φ2.5mm for remote
  • External microphone / external audio device input

    • φ3,5mm untuk perangkat mikrofon eksternal / audio eksternal
      MIC (Plug-in Power) / MIC / LINE dapat dipilih.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual dapat dipilih bila memasang DMW-MS2 (dijual terpisah).
  • Headphone output

    • φ3.5mm untuk headphone
  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Rendah* / Standar / Tinggi *Bila menggunakan DMW-MS2 (dijual terpisah).
  • High-res audio recording

    • Ya dengan DMW-XLR1 (dijual terpisah)
  • Speaker

    • Monaural
  • SD card slot

    • Slot 1, Slot 2
  • TC IN/OUT

    • Ya dengan Kabel Konverter BNC (termasuk)

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (bundled)
  • Battery life (CIPA standard)

    • Approx. 440 images (rear monitor), 410 images (LVF), 1,300 images (Power Save LVF mode*) with H-FS12060
      *Di bawah kondisi pengujian yang ditentukan oleh Panasonic berdasarkan standar CIPA. Ketika waktu untuk masuk ke sleep mode diatur ke 1 detik.
  • Battery grip

    • DMW-BGGH5 (dijual terpisah)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • 138.5 x 98.1 x 87.4 mm / 5.45 x 3.86 x 3.44 inch (excluding protrusions)
  • Weight

    • Approx. 660g / 1.46 lb (SD card x 1, Battery, Body)
      Approx. 580g / 1.28 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature (*4)

    • -10°C to 40°C (14°F to 104°F)
  • Operating humidity

    • 10%RH hingga 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・ Perangkat lunak ini digunakan untuk mengontrol kamera digital Panasonic dari PC. Memungkinkan Anda mengubah berbagai setelan kamera, melakukan perekaman jarak jauh, dan menyimpan gambar yang direkam dari jarak jauh ke komputer. Lihat situs di bawah ini untuk mengunduh dan menginstal perangkat lunak tersebut.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (Untuk Windows / Mac)
    • Playback / Editing
      • ・ Software untuk mengedit dan memutar image di komputer tidak disertakan dengan kamera ini. Untuk melakukannya, PHOTOfunSTUDIO 10.0XE tersedia untuk diunduh di situs web Panasonic menggunakan komputer yang terhubung ke Internet.
        http://panasonic.jp/support/global/cs/soft/download/d_pfs10xe.html (Untuk Windows)
        ・Software untuk memproses file RAW di komputer tidak disertakan dengan kamera ini. Untuk melakukan ini, SILKYPIX Developer Studio tersedia untuk diunduh di situs web Ichikawa Soft Laboratory menggunakan komputer yang terhubung ke Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (Untuk Windows / Mac)
  • Standard accessories

    • Battery Charger (AC Adaptor), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Cable Holder, BNC Converter Cable

      ・ The DC-GH5S Petunjuk Pengoperasian untuk fitur lanjutan tersedia untuk diunduh di Situs Panasonic LUMIX Customer Support menggunakan PC, ponsel cerdas, atau tablet yang terhubung ke Internet.

NOTE

  • (*1) Audio beresolusi tinggi hanya dapat dipilih saat menggunakan DMW-XLR1 (dijual terpisah).
    (*2) Tentang perekaman still image / perekaman FOTO 4K
    - Gunakan kartu dengan SD Speed ​​Class dengan ""Class 4"" atau lebih tinggi saat merekam still image di [AVCHD] atau [MP4 (di bawah 28Mbps)].
    - Gunakan kartu dengan SD Speed ​​Class dengan ""UHS-I / UHS-II UHS Speed ​​Class 3 (U3)"" saat merekam still image dengan [MP4] di [C4K] [4K], [MOV], [VFR] atau [FOTO 4K].
    (SD Speed Class adalah standar kecepatan terkait penulisan berkelanjutan.)
    - Video Speed ​​Class 60 atau lebih tinggi diperlukan untuk ALL-Intra 400Mbps recording. Penggunaan Memory Card SD dengan Video Speed ​​Class 60 atau lebih tinggi disarankan untuk C4K/4K ALL-Intra video recording.
    - still image MP4 dalam [C4K] [4K]:
    - Saat menggunakan memory card SDHC: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 4 GB, tetapi file still image akan dibagi dan direkam/diputar ulang secara terpisah.
    - Saat menggunakan memory card SDXC: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 96 GB atau berdurasi 3 jam 4 menit, tetapi file still image akan dibagi dan direkam/diputar ulang secara terpisah.
    - still image MP4 dalam [FHD]:
    - Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 4 GB atau berdurasi 30 menit, tetapi file still image akan dibagi dan direkam/diputar ulang secara terpisah.
    - 4:2:2 Perekaman 10-bit adalah mode perekaman untuk produksi film dan video perlu diproses di PC.
    Video asli tidak dapat diputar di TV standar, perekam Blu-ray Disc™, dan pemutar Blu-ray Disc™.
    Ini dapat menyebabkan masalah seperti pembekuan saat diputar di perangkat ini.

    (*3) Untuk output video [C4K/60p] [C4K/50p] [4K/60p] [4K/50p], gunakan kabel HDMI2.0 yang memiliki logo HDMI, dan digambarkan sebagai""4K kompatibel"".

    (*4) Kamera dapat berhenti merekam saat digunakan pada suhu pengoperasian yang lebih rendah atau lebih tinggi dari yang disarankan: -10 hingga 40 derajat.

    (*5) Firmware harus diperbarui ke versi terbaru 1.1 atau yang lebih baru.

    (*6) Firmware harus diperbarui ke versi terbaru 1.4 atau yang lebih baru.

    (*7) Firmware harus diperbarui ke versi 2.0 terbaru.

    (*8) Firmware harus diperbarui ke versi 2.2.

Produk dengan Berbagai Ukuran

Ulasan

ULASAN DARI AHLI

  • DP Review, Gold Award. February 2018

    "The GH5S is a highly specialized filmmakers' camera that makes few concessions to anything but this core purpose."

  • TIPA World Awards 2018, Best Professional Photo/Video Camera. April 2018

    "The camera’s 10.2MP High Sensitivity MOS sensor utilizes “Dual Native ISO Technology” to dig into even the darkest areas, allowing high ISO capture without supplemental lighting."

Lokasi Pembelian

Aksesori

Lenses

Mount Adaptors

DMW-MA1

Mount Adaptor

Photo of DMW-MA1

DMW-MA2M

Mount Adaptor

Photo of DMW-MA2M

DMW-MA3R

Mount Adaptor

Photo of DMW-MA3R

Flashes

DMW-FL580L

External Flash

Photo of DMW-FL580L

DMW-FL360L

External Flash

Photo of DMW-FL360L

DMW-FL200L

External Flash

Photo of DMW-FL200L

VW-LED1

LED Video Light

Photo of VW-LED1

Battery / Battery Grip

DMW-BLF19

Battery

Photo of DMW-BLF19

DMW-BGGH5

Battery Grip

Photo of DMW-BGGH5

DMW-BTC13

Battery Charger

Photo of DMW-BTC13

Microphones / XLR Microphone Adaptor

DMW-MS2

Microphone

Photo of DMW-MS2

DMW-VMS10

Microphone

Photo of DMW-VMS10

DMW-XLR1

XLR Microphone Adaptor

Photo of DMW-XLR1

Others

DMW-RSL1

Remote Shutter

Photo of DMW-RSL1

DMW-TA1

Tripod Adaptor

Photo of DMW-TA1

Ketahui Selengkapnya Tentang Produk

Dapatkan Dukungan

LUMIX GH5S Camera DC-GH5S
