Panasonic’s VRF SYSTEM with Central Controller for Munjal Kiriu Industries Private Limited
About the client:
Munjal Kiriu Industries Private Limited is a joint venture between Hero Motors Limited and Kiriu Corporation and Sumitomo Corporation. It is a leading manufacturer of automotive components and systems in India. The company specializes in the production of chassis frames, exhaust systems, and other critical components for various vehicles, including motorcycles, scooters, and cars.
Munjal Kiriu has a strong focus on innovation and technology, and it has invested heavily in advanced manufacturing processes and facilities.
The company has a strong customer base, including leading automotive manufacturers in India and around the world.
What was the client’s challenge?
Munjal Kiru's Manesar plant office, a large-scale manufacturing facility, faced several Heating Ventilation & Air Conditioning (HVAC) challenges in office area:
- Diverse Thermal Loads: Different areas of the office, such as reception area, open workstations, meeting rooms, assembly area had varying thermal loads.
- Precise Temperature and Humidity Control: Need to maintain temperature & humidity.
- Energy Efficiency: The entire office area aimed to reduce energy consumption without compromising comfort and productivity.
- Scalability: The facility required a flexible HVAC system that could accommodate future expansion.
- Intelligent Central Control System: The HVAC systems of entire office needed to be centrally controlled.
What was the solution provided by Panasonic?
- Product deployment: VRF SYSTEM with Central Controller -100 HP System with Cassettes Indoors & Intelligent Central Controlling System-CRC.

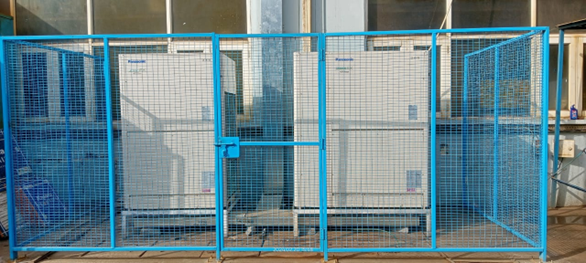

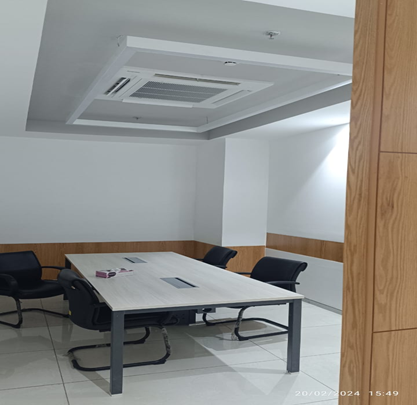

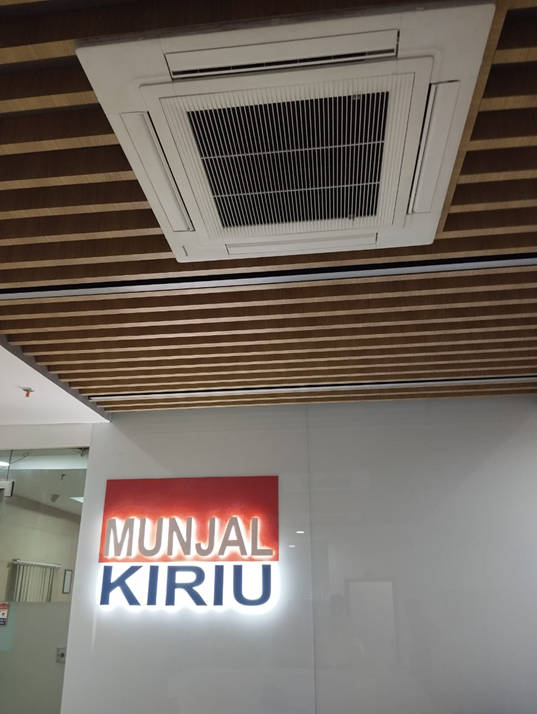

- Implementation Details: After proper heat load calculation, a schematic of the copper piping and wiring was prepared. Subsequently, approximately 35 cassette-type indoor units (IDUs) ranging from 1.5 TR to 4 TR were installed in different area of the office including Reception, open workstations, Cabins & meeting rooms. To complete the module, 6 outdoor units (ODUs) with a capacity Ranging from 12HP to 20 HP each were connected.
- Intelligent central controller (CRC) was installed to provide centralized control and monitoring, ensuring optimal comfort, energy efficiency & on time preventive maintenance.
What was the impact of the solution deployed?
Return on Investment –
Increased Efficiency: The transition from Conventional Aircon system to Panasonic VRF Systems has led to substantial Energy saving resulting in lower operation cost.
Revolutionizing Climate Control: Panasonic's VRF systems, designed to operate efficiently in high ambient temperatures of up to 52°C, deliver 100% capacity even at 43°C. This robust performance is delivering consistent cooling and heating throughout the facility, providing optimal comfort in both scorching summers and frigid winters.
Improved Productivity: The improved indoor environment, characterized by consistent comfort, has positively impacted worker productivity.
Enhanced Control and Monitoring: - Through the central controller CRC, the following is enabled:
- Monitoring & controlling all IDUs centrally to optimize operations.
- Automatic adjustment of temperature & fan speed based on occupancy and climate conditions.
- Controller tracks energy usage and identify areas for optimization.
- Reminders for due preventive maintenance requirement.
