S-24PU8RY

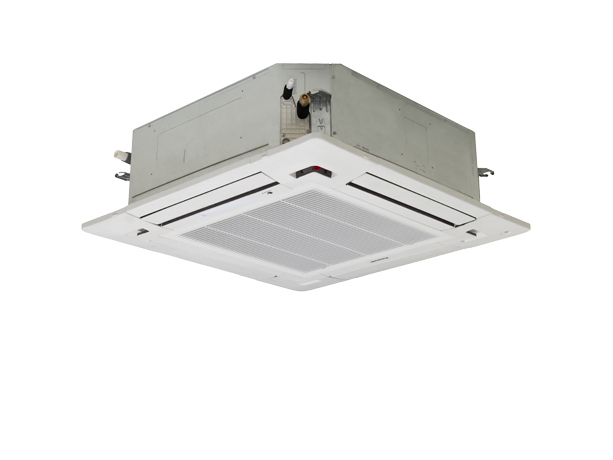

Standard 4- way Cassette AC- Inverter
Features
• Simplistic Design
• LCD Wireless Remote Controller
• Easy Installation Design
• Operation Range up to 52°C
• Maintenance Function Time Display will show "FC" code for Air Filter Cleaning
• LCD Wireless Remote Controller
• Easy Installation Design
• Operation Range up to 52°C
• Maintenance Function Time Display will show "FC" code for Air Filter Cleaning
Specs
Model Indoor Unit
-
S-24PU8RY

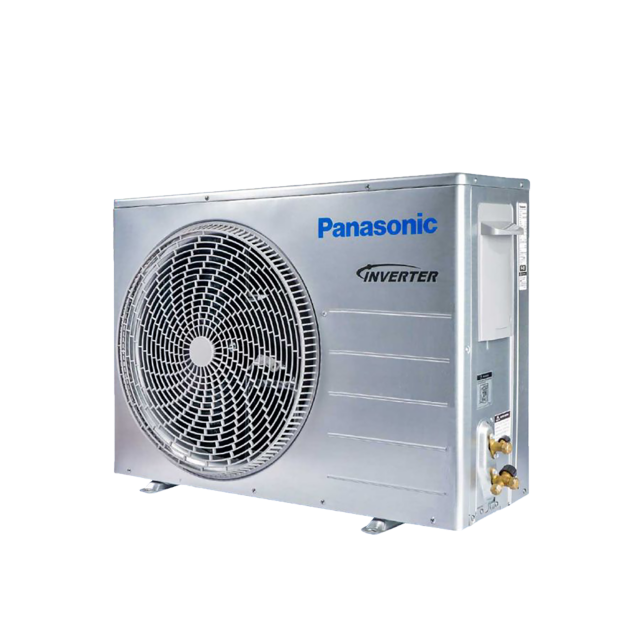

Model Outdoor Unit
-
U-24PU8R5Y
Panel
-
CZ-KPU8Y
Capacity Rated
-
Cooling
-
[Min. ~ Max.] W
-
6800 (3000-7034)
-
-
[Min. ~ Max.] Btu/hr
-
23203 (10236-24000)
-
-
ISEER
-
4.25
Star Rating
-
3
Electrical Rating
-
Cooling
-
[Rated~Max.] Running Current (A)
-
9.5~13
-
-
[Min. ~ Max.] Power Input (W)
-
2070 (730-2174)
-
-
Power Source
-
V/Phase/Hz
-
230V / 1ɸ / 50Hz
-
Indoor Unit
-
Air Volume
-
H/M/L (CMH)
-
1350/1200/1100
-
-
-
Sound Pressure Level
-
H/M/L (db (A))
-
45/44/43
-
-
-
Dimension
-
Indoor LxBxH (cm)
-
84.5 x 84.5 x 24.5
-
-
Panel LxBxH (cm)
-
95.0 x 95.0 x 4.2
-
-
-
Net Weight
-
Indoor Unit / Panel (Kg)
-
25/5.5
-
-
Outdoor Unit
-
Sound Pressure Level
-
H (db(A))
-
58
-
-
-
Dimension
-
LxBxH (cm)
-
82.4 x 29.9 x 61.9
-
-
-
Net Weight
-
Kg
-
28.5
-
-
-
Refrigerant Type
-
R-32
-
Piping Connection
-
Gas (Flare)
-
cm (inches)
-
1.588 (5/8")
-
-
-
Liquid (Flare)
-
cm (inches)
-
0.635 (1/4")
-
-
-
Drain
-
cm
-
3.2
-
-
Ambient Temperature Operating Range
-
°C
-
up to 52°C
-
Standard Remote Controller
-
LCD Wireless Type
Compressor Type
-
Rotary
