S-48PU8RY

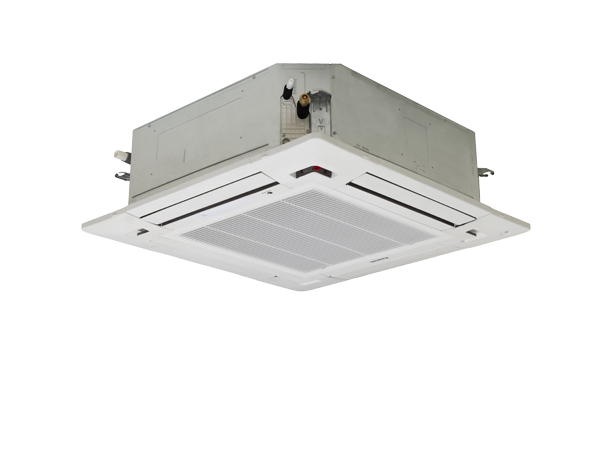

Standard 4- way Cassette AC- Inverter
Features
• Simplistic Design
• LCD Wireless Remote Controller
• Easy Installation Design
• Operation Range up to 52°C
• Maintenance Function Time Display will show "FC" code for Air Filter Cleaning
• LCD Wireless Remote Controller
• Easy Installation Design
• Operation Range up to 52°C
• Maintenance Function Time Display will show "FC" code for Air Filter Cleaning
Specs
Model Indoor Unit
-
S-48PU8RY
Model Outdoor Unit
-
U-48PU8R5Y
Panel
-
CZ-KPU8Y
Capacity Rated
-
Cooling
-
[Min. ~ Max.] W
-
14068 (6400-14600)
-
-
[Min. ~ Max.] Btu/hr
-
48002 (21838-49817)
-
-
ISEER
-
3.58
Star Rating
-
3
Electrical Rating
-
Cooling
-
[Rated~Max.] Running Current (A)
-
24.9~30
-
-
[Min. ~ Max.] Power Input (W)
-
5150 (1750-5920)
-
-
Power Source
-
V/Phase/Hz
-
230V / 1ɸ / 50Hz
-
Indoor Unit
-
Air Volume
-
H/M/L (CMH)
-
2250/2100/2000
-
-
-
Sound Pressure Level
-
H/M/L (db (A))
-
54/52/51
-
-
-
Dimension
-
Indoor LxBxH (cm)
-
84.5 x 84.5 x 29.0
-
-
Panel LxBxH (cm)
-
95.0 x 95.0 x 4.2
-
-
-
Net Weight
-
Indoor Unit / Panel (Kg)
-
26.5/5.5
-
-
Outdoor Unit
-
Sound Pressure Level
-
H (db(A))
-
64
-
-
-
Dimension
-
LxBxH (cm)
-
87.5 x 32.0 x 75.0
-
-
-
Net Weight
-
Kg
-
53.5
-
-
-
Refrigerant Type
-
R-32
-
Piping Connection
-
Gas (Flare)
-
cm (inches)
-
1.588 (5/8")
-
-
-
Liquid (Flare)
-
cm (inches)
-
0.952 (3/8")
-
-
-
Drain
-
cm
-
3.2
-
-
Ambient Temperature Operating Range
-
°C
-
up to 52°C
-
Standard Remote Controller
-
LCD Wireless Type
Compressor Type
-
Twin Rotary
