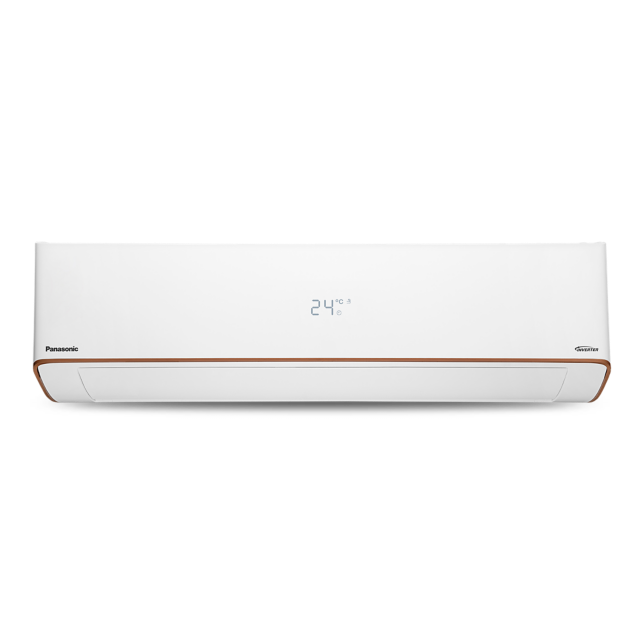

CS/CU-EU12BKY5
MRP(Inclusive of all Taxes):₹ 56,400.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-EU12BKY5
Specs
Type
-
Cooling Only
Tonnage Class (TR)
-
1.0
Model [50Hz]
-
CS/CU-EU12BKY5
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
11772 [5297 - 12949]
Cooling Capacity Standard [Min. - Max.] (W)
-
3450 [1553 - 3795]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
5.20
Annual Power Consumption (kWh)
-
514.00
Star Rating (★)
-
5★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
4.0
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
870 [270 - 1175]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
1.0
Moisture Removal Rate (Pt/h)
-
2.1
Air Circulation (Indoor) (mᵌ/min)
-
14.0
Air Circulation (Indoor) (ftᵌ/min)
-
494
Net Dimensions of the Indoor Unit
-
Length (L) (cm)
-
87.0
-
-
Breadth (B) (cm)
-
22.9
-
-
Height (H) (cm)
-
29.5
-
Gross Dimensions of the Indoor Unit
-
Length (L) (cm)
-
95.2
-
-
Breadth (B) (cm)
-
28.3
-
-
Height (H) (cm)
-
37.4
-
Net Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
78.0
-
-
Breadth (B) (cm)
-
28.8
-
-
Height (H) (cm)
-
54.2
-
Gross Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
90.0
-
-
Breadth (B) (cm)
-
40.5
-
-
Height (H) (cm)
-
60.7
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
44/32
-
-
Outdoor [dB-A]
-
53
-
Net Weight
-
IDU [ODU] (kg)
-
10 [22]
-
-
IDU [ODU] (lb)
-
22 [48.5]
-
Gross Weight
-
IDU [ODU] (kg)
-
11 [26]
-
-
IDU [ODU] (lb)
-
24.2 [57.3]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 55
Operating Volt. Range (V)
-
100-290
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø0.952
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
10
-
-
Maximum Elevation Length * (m)
-
5
-
-
Additional Refrigerant Gas * (g/m)
-
10
-
Power Supply Source
-
Indoor
In the Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N
Note
-
1) Due to continuous research development, specifications features may change without prior notice.
2) Weight data mentioned above is provided considering tolerance of ±2kg.
