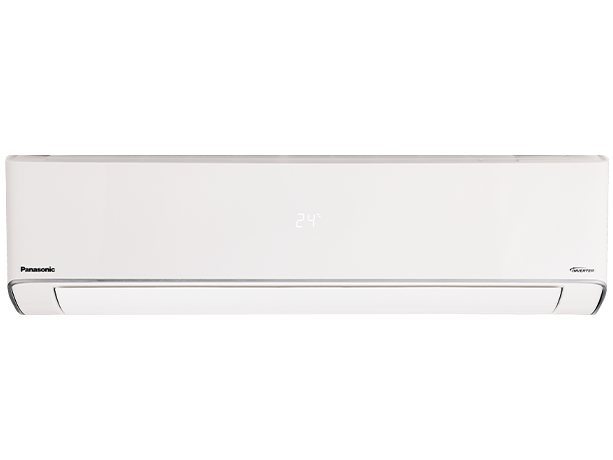

CS/CU-EU24BKY5FM
MRP(Inclusive of all Taxes):₹ 87,900.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-EU24BKY5FM

Specs

Type
-
Cooling Only
Tonnage Class (TR)
-
2.0
Model [50Hz]
-
CS/CU-EU24BKY5FM
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
20814 [9366 - 22895]
Cooling Capacity Standard [Min. - Max.] (W)
-
6100 [2745 - 6710]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
5.20
Annual Power Consumption (kWh)
-
908.90
Star Rating (★)
-
5★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
7.0
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
1530 [480 - 2066]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
2.3
Moisture Removal Rate (Pt/h)
-
4.8
Air Circulation (Indoor) (mᵌ/min)
-
20.4
Air Circulation (Indoor) (ftᵌ/min)
-
720
Net Dimensions of the Indoor Unit
-
Length (L) (cm)
-
104.0
-
-
Breadth (B) (cm)
-
24.4
-
-
Height (H) (cm)
-
29.6
-
Gross Dimensions of the Indoor Unit
-
Length (L) (cm)
-
114.8
-
-
Breadth (B) (cm)
-
31.4
-
-
Height (H) (cm)
-
38.3
-
Net Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
82.4
-
-
Breadth (B) (cm)
-
29.9
-
-
Height (H) (cm)
-
61.9
-
Gross Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
97.0
-
-
Breadth (B) (cm)
-
41.6
-
-
Height (H) (cm)
-
70.0
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
49/36
-
-
Outdoor [dB-A]
-
57
-
Net Weight
-
IDU [ODU] (kg)
-
12.5 [28.5]
-
-
IDU [ODU] (lb)
-
27.6 [62.8]
-
Gross Weight
-
IDU [ODU] (kg)
-
14.5 [34]
-
-
IDU [ODU] (lb)
-
32 [75]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 55
Operating Volt. Range (V)
-
100-290
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø1.588
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
15
-
-
Maximum Elevation Length * (m)
-
10
-
-
Additional Refrigerant Gas * (g/m)
-
20
-
Power Supply Source
-
Indoor
In the Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N
Note
-
1) Due to continuous research development, specifications features may change without prior notice.
2) Weight data mentioned above is provided considering tolerance of ±2kg.
