CS/CU-EZ24BKYFM

MRP(Inclusive of all Taxes):₹ 78,900.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-EZ24BKYFM

Specs

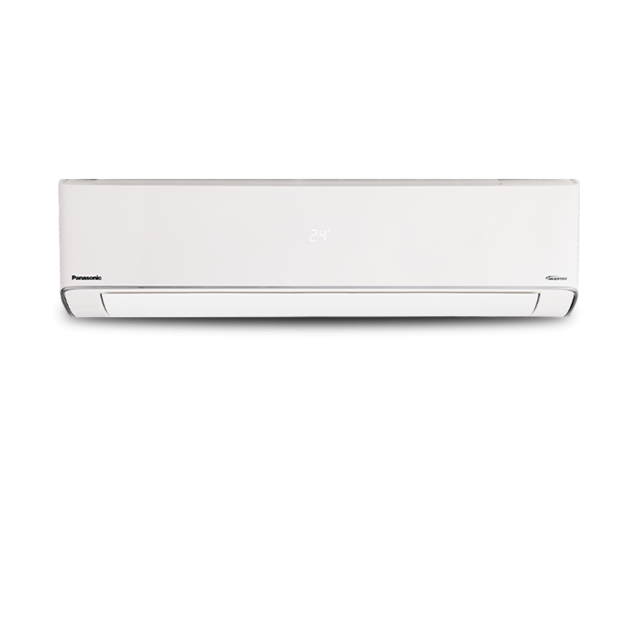

Photo of CS/CU-EZ24BKYFM

Type

  • Heating & Cooling Both

Tonnage Class (TR)

  • 2.0

Model [50Hz]

  • CS/CU-EZ24BKYFM

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 21155 [9520 - 23270]

Cooling Capacity Standard [Min. - Max.] (W)

  • 6200 [2790 - 6820]

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • 21838 [9827 - 22930]

Heating Capacity Standard [Min. - Max.] (W)

  • 6400 [2880 - 6720]

ISEER

  • 4.10

Annual Power Consumption (kWh)

  • 1170.64

Star Rating (★)

  • 3★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 8.7
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1910 [635 - 2580]
  • Power Input, Standard Heating [Min. - Max.] (W)

    • 1700 [585-2300]

Moisture Removal Rate (l/h)

  • 2.3

Moisture Removal Rate (Pt/h)

  • 4.8

Air Circulation (Indoor) (mᵌ/min)

  • 20.4

Air Circulation (Indoor) (ftᵌ/min)

  • 720

Net Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 104.0
  • Breadth (B) (cm)

    • 24.4
  • Height (H) (cm)

    • 29.6

Gross Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 114.8
  • Breadth (B) (cm)

    • 31.4
  • Height (H) (cm)

    • 38.3

Net Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 82.4
  • Breadth (B) (cm)

    • 29.9
  • Height (H) (cm)

    • 61.9

Gross Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 97.0
  • Breadth (B) (cm)

    • 41.6
  • Height (H) (cm)

    • 70.0

Noise Level

  • Indoor (H/Q) [dB-A]

    • 49/36
  • Outdoor [dB-A]

    • 56.0

Net Weight

  • IDU [ODU] (kg)

    • 12 [28.5]
  • IDU [ODU] (lb)

    • 26.5 [62.8]

Gross Weight

  • IDU [ODU] (kg)

    • 14 [32.5]
  • IDU [ODU] (lb)

    • 31 [71.7]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • -7 ~ 55

Operating Volt. Range (V)

  • 145 - 285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø1.270

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 15
  • Maximum Elevation Length * (m)

    • 10
  • Additional Refrigerant Gas * (g/m)

    • 20

Power Supply Source

  • Indoor

In the Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N

Note

  • 1) Due to continuous research development, specifications features may change without prior notice.
    2) Weight data mentioned above is provided considering tolerance of ±2kg.
