CS/CU-NU24AKY4W

MRP(Inclusive of all Taxes):₹ 74,400.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-NU24AKY4W

Specs

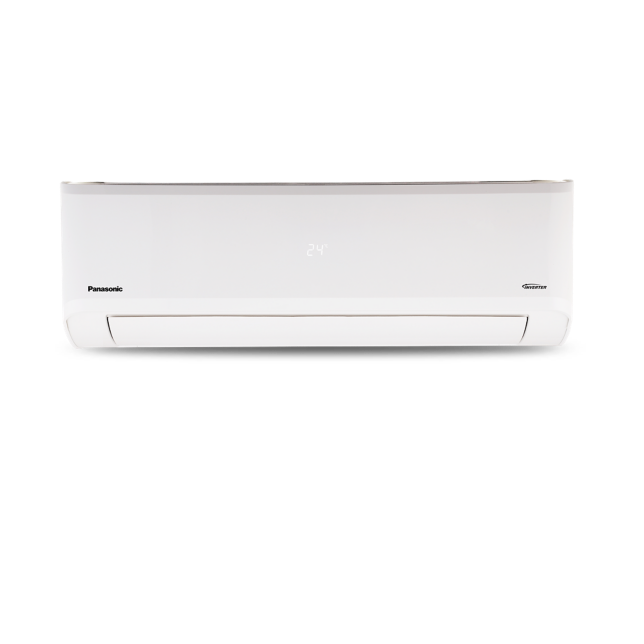

Photo of CS/CU-NU24AKY4W

Type

  • Cooling Only

Tonnage Class (TR)

  • 2.0

Model [50Hz]

  • CS/CU-NU24AKY4W

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 21155 [9520 - 23271]

Cooling Capacity Standard [Min. - Max.] (W)

  • 6200 [2790 - 6820]

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • -

Heating Capacity Standard [Min. - Max.] (W)

  • -

ISEER

  • 4.60

Annual Power Consumption (kWh)

  • 1042.48

Star Rating (★)

  • 4★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 7.8
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1710 [563- 2309]
  • Power Input, Standard Heating [Min. - Max.] (W)

    • -

Moisture Removal Rate (l/h)

  • 2.3

Moisture Removal Rate (Pt/h)

  • 4.8

Air Circulation (Indoor) (mᵌ/min)

  • 20.4

Air Circulation (Indoor) (ftᵌ/min)

  • 720

Net Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 104.0
  • Breadth (B) (cm)

    • 24.9
  • Height (H) (cm)

    • 29.6

Gross Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 114.8
  • Breadth (B) (cm)

    • 31.4
  • Height (H) (cm)

    • 38.3

Net Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 82.4
  • Breadth (B) (cm)

    • 29.9
  • Height (H) (cm)

    • 61.9

Gross Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 97.0
  • Breadth (B) (cm)

    • 41.6
  • Height (H) (cm)

    • 70.0

Noise Level

  • Indoor (H/Q) [dB-A]

    • 48/36
  • Outdoor [dB-A]

    • 56

Net Weight

  • IDU [ODU] (kg)

    • 11 [27]
  • IDU [ODU] (lb)

    • 24.2 [59.5]

Gross Weight

  • IDU [ODU] (kg)

    • 13 [32]
  • IDU [ODU] (lb)

    • 28.7 [70.5]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 55

Operating Volt. Range (V)

  • 100 - 290

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø1.270

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 15
  • Maximum Elevation Length * (m)

    • 10
  • Additional Refrigerant Gas * (g/m)

    • 20

Power Supply Source

  • Indoor

In the Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N

Note

  • 1) Due to continuous research development, specifications features may change without prior notice.
    2) Weight data mentioned above is provided considering tolerance of ±2kg.
