CS/CU-QU26BKYFM

MRP(Inclusive of all Taxes):₹ 91,900.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-QU26BKYFM

Specs

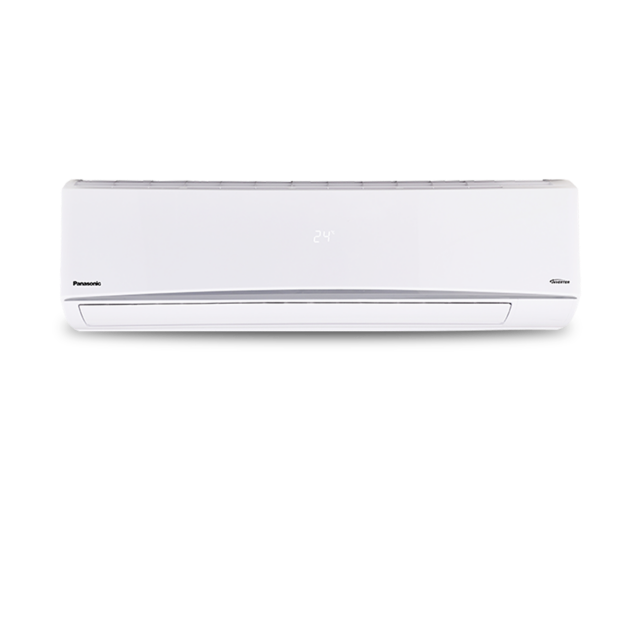

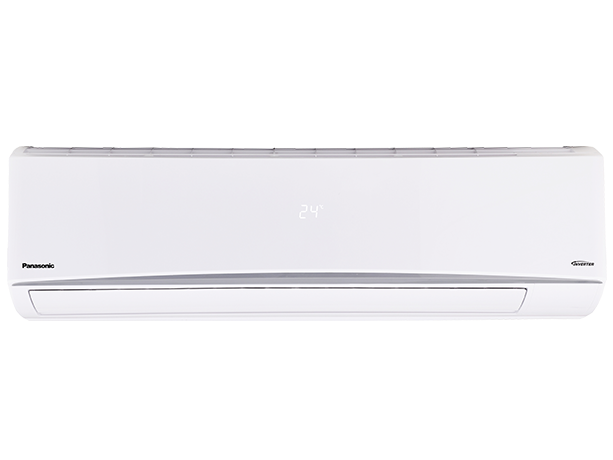

Photo of CS/CU-QU26BKYFM

Type

  • Cooling Only

Tonnage Class (TR)

  • 2.2

Model [50Hz]

  • CS/CU-QU26BKYFM

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 26785 [12053 - 29464]

Cooling Capacity Standard [Min. - Max.] (W)

  • 7850 [3533 - 8635]

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • -

Heating Capacity Standard [Min. - Max.] (W)

  • -

ISEER

  • 4.50

Annual Power Consumption (kWh)

  • 1351.04

Star Rating (★)

  • 4★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 10.1
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 2200 [734- 2970]
  • Power Input, Standard Heating [Min. - Max.] (W)

    • -

Moisture Removal Rate (l/h)

  • 3.0

Moisture Removal Rate (Pt/h)

  • 6.3

Air Circulation (Indoor) (mᵌ/min)

  • 24.1

Air Circulation (Indoor) (ftᵌ/min)

  • 851

Net Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 110.0
  • Breadth (B) (cm)

    • 25.0
  • Height (H) (cm)

    • 33.0

Gross Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 118.4
  • Breadth (B) (cm)

    • 32.0
  • Height (H) (cm)

    • 40.0

Net Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 87.5
  • Breadth (B) (cm)

    • 32.0
  • Height (H) (cm)

    • 75.0

Gross Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 104.9
  • Breadth (B) (cm)

    • 48.5
  • Height (H) (cm)

    • 83.3

Noise Level

  • Indoor (H/Q) [dB-A]

    • 50/44
  • Outdoor [dB-A]

    • 60

Net Weight

  • IDU [ODU] (kg)

    • 15 [43.5]
  • IDU [ODU] (lb)

    • 33 [96]

Gross Weight

  • IDU [ODU] (kg)

    • 17.5 [51]
  • IDU [ODU] (lb)

    • 38.6 [112.4]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 55

Operating Volt. Range (V)

  • 145 - 285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø1.588

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 15
  • Maximum Elevation Length * (m)

    • 10
  • Additional Refrigerant Gas * (g/m)

    • 20

Power Supply Source

  • Indoor

In the Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N

Note

  • 1) Due to continuous research development, specifications features may change without prior notice.
    2) Weight data mentioned above is provided considering tolerance of ±2kg.
