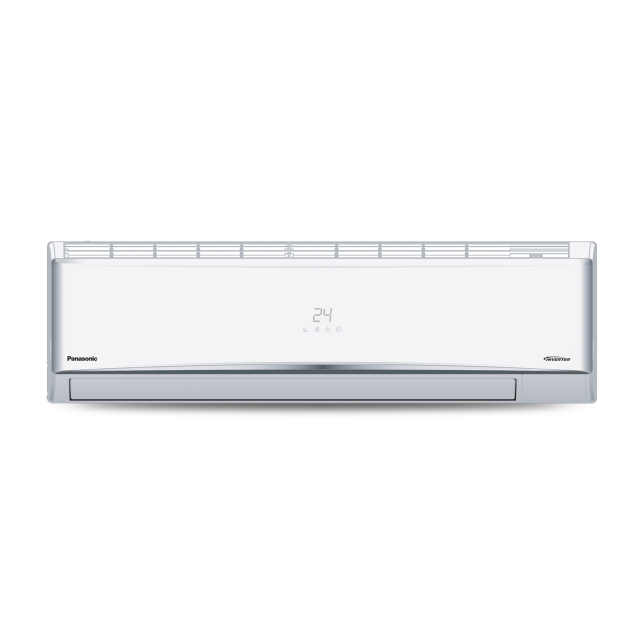

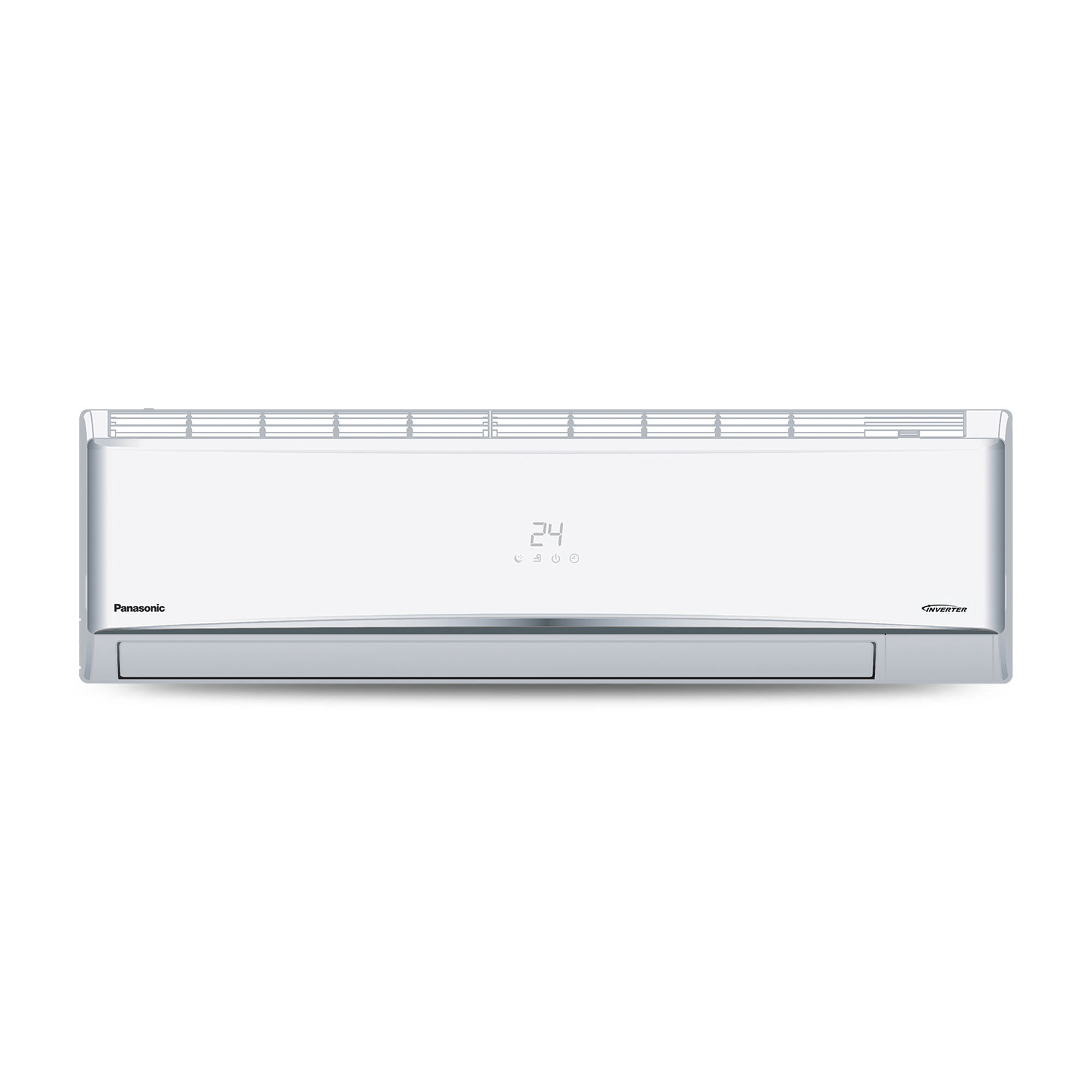

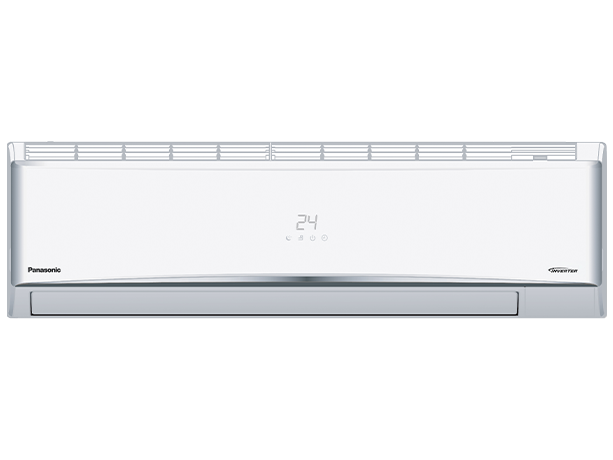

CS/CU-RU12BKY
MRP(Inclusive of all Taxes):₹ 49,100.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-RU12BKY

Specs

Type
-
Cooling Only
Tonnage Class (TR)
-
1.0
Model [50Hz]
-
CS/CU-RU12BKY
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
11772 [5297 - 12949]
Cooling Capacity Standard [Min. - Max.] (W)
-
3450 [1553 - 3795]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
4.00
Annual Power Consumption (kWh)
-
667.91
Star Rating (★)
-
3★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
5.2
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
1140 [348 - 1539]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
1.0
Moisture Removal Rate (Pt/h)
-
2.1
Air Circulation (Indoor) (mᵌ/min)
-
12.0
Air Circulation (Indoor) (ftᵌ/min)
-
424
Net Dimensions of the Indoor Unit
-
Length (L) (cm)
-
80.0
-
-
Breadth (B) (cm)
-
23.0
-
-
Height (H) (cm)
-
29.5
-
Gross Dimensions of the Indoor Unit
-
Length (L) (cm)
-
88.5
-
-
Breadth (B) (cm)
-
29.5
-
-
Height (H) (cm)
-
36.0
-
Net Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
67.2
-
-
Breadth (B) (cm)
-
24.0
-
-
Height (H) (cm)
-
52.0
-
Gross Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
79.5
-
-
Breadth (B) (cm)
-
37.0
-
-
Height (H) (cm)
-
57.5
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
44/36
-
-
Outdoor [dB-A]
-
53
-
Net Weight
-
IDU [ODU] (kg)
-
9.3 [20]
-
-
IDU [ODU] (lb)
-
20.5 [44]
-
Gross Weight
-
IDU [ODU] (kg)
-
11 [24]
-
-
IDU [ODU] (lb)
-
24.2 [53]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 52
Operating Volt. Range (V)
-
145 - 285
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø0.952
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
10
-
-
Maximum Elevation Length * (m)
-
5
-
-
Additional Refrigerant Gas * (g/m)
-
10
-
Power Supply Source
-
Indoor
In the Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N
Note
-
1) Due to continuous research development, specifications features may change without prior notice.
2) Weight data mentioned above is provided considering tolerance of ±2kg.
