CS/CU-SU11AKY3T

MRP(Inclusive of all Taxes):₹ 47,100.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-SU11AKY3T

Specs

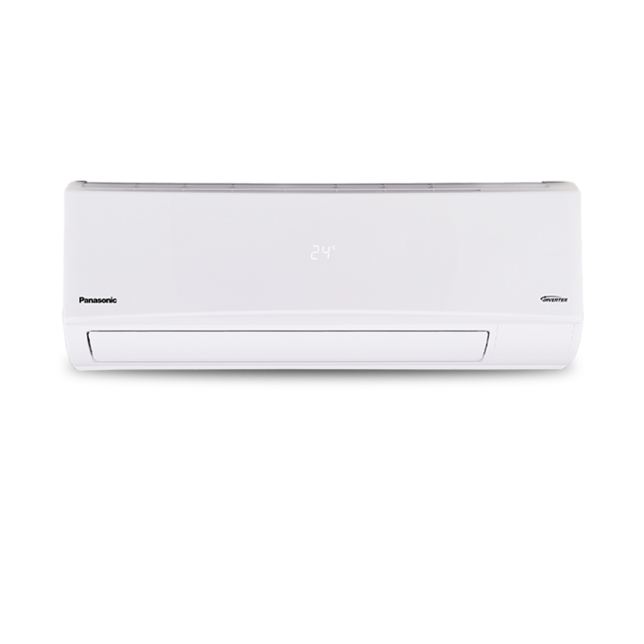

Photo of CS/CU-SU11AKY3T

Type

  • Cooling Only

Tonnage Class (TR)

  • 0.9

Model [50Hz]

  • CS/CU-SU11AKY3T

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 10748 [4837 - 11823]

Cooling Capacity Standard [Min. - Max.] (W)

  • 3150 [1418 - 3465]

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • -

Heating Capacity Standard [Min. - Max.] (W)

  • -

ISEER

  • 4.00

Annual Power Consumption (kWh)

  • 609.19

Star Rating (★)

  • 3★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 4.6
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1000 [329 - 1350]
  • Power Input, Standard Heating [Min. - Max.] (W)

    • -

Moisture Removal Rate (l/h)

  • 1.0

Moisture Removal Rate (Pt/h)

  • 2.1

Air Circulation (Indoor) (mᵌ/min)

  • 12.0

Air Circulation (Indoor) (ftᵌ/min)

  • 424

Net Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 80.0
  • Breadth (B) (cm)

    • 23.0
  • Height (H) (cm)

    • 29.5

Gross Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 88.5
  • Breadth (B) (cm)

    • 29.5
  • Height (H) (cm)

    • 36.0

Net Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 67.2
  • Breadth (B) (cm)

    • 24.0
  • Height (H) (cm)

    • 52.0

Gross Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 79.5
  • Breadth (B) (cm)

    • 37.0
  • Height (H) (cm)

    • 57.5

Noise Level

  • Indoor (H/Q) [dB-A]

    • 44/36
  • Outdoor [dB-A]

    • 53

Net Weight

  • IDU [ODU] (kg)

    • 9.3 [19.5]
  • IDU [ODU] (lb)

    • 20.5 [43]

Gross Weight

  • IDU [ODU] (kg)

    • 11 [23.2]
  • IDU [ODU] (lb)

    • 24.2 [51]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 52

Operating Volt. Range (V)

  • 145 - 285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø0.952

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 10
  • Maximum Elevation Length * (m)

    • 5
  • Additional Refrigerant Gas * (g/m)

    • 10

Power Supply Source

  • Indoor

In the Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N

Note

  • 1) Due to continuous research development, specifications features may change without prior notice.
    2) Weight data mentioned above is provided considering tolerance of ±2kg.
