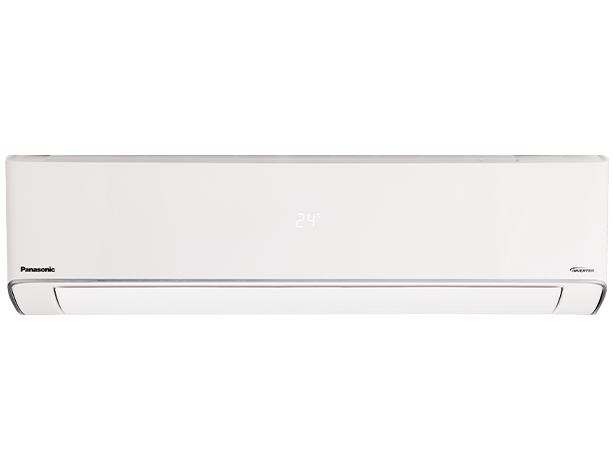

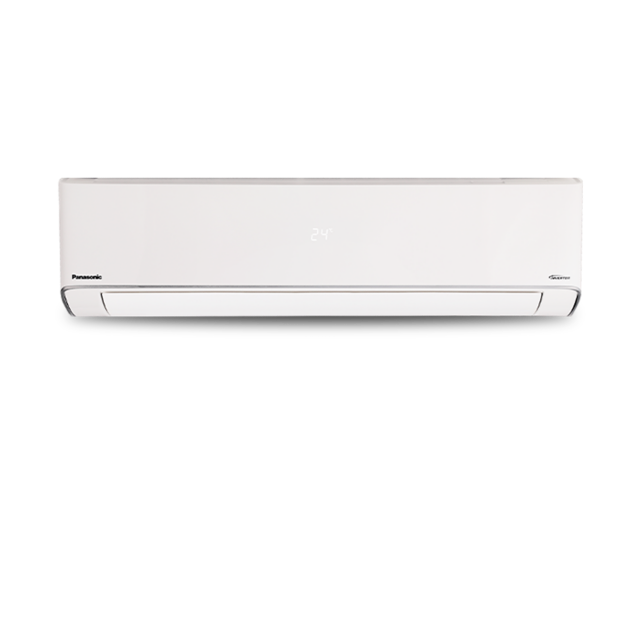

CS/CU-VU18BKYFM
MRP(Inclusive of all Taxes):₹ 73,900.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-VU18BKYFM

Specs

Type
-
Cooling Only
Tonnage Class (TR)
-
1.5
Model [50Hz]
-
CS/CU-VU18BKYFM
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
17061 [7677 - 18767]
Cooling Capacity Standard [Min. - Max.] (W)
-
5000 [2250 - 5500]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
5.85
Annual Power Consumption (kWh)
-
661.44
Star Rating (★)
-
5★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
5.0
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
1090 [356 - 1472]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
1.2
Moisture Removal Rate (Pt/h)
-
2.5
Air Circulation (Indoor) (mᵌ/min)
-
20.4
Air Circulation (Indoor) (ftᵌ/min)
-
720
Net Dimensions of the Indoor Unit
-
Length (L) (cm)
-
104.0
-
-
Breadth (B) (cm)
-
24.4
-
-
Height (H) (cm)
-
29.6
-
Gross Dimensions of the Indoor Unit
-
Length (L) (cm)
-
114.8
-
-
Breadth (B) (cm)
-
31.4
-
-
Height (H) (cm)
-
38.3
-
Net Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
87.5
-
-
Breadth (B) (cm)
-
32.0
-
-
Height (H) (cm)
-
75.0
-
Gross Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
104.9
-
-
Breadth (B) (cm)
-
48.5
-
-
Height (H) (cm)
-
83.3
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
49/34
-
-
Outdoor [dB-A]
-
56
-
Net Weight
-
IDU [ODU] (kg)
-
12 [34.5]
-
-
IDU [ODU] (lb)
-
26.5 [76]
-
Gross Weight
-
IDU [ODU] (kg)
-
14 [41]
-
-
IDU [ODU] (lb)
-
31 [90.4]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 55
Operating Volt. Range (V)
-
100-290
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø1.270
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
15
-
-
Maximum Elevation Length * (m)
-
10
-
-
Additional Refrigerant Gas * (g/m)
-
15
-
Power Supply Source
-
Indoor
In the Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N
Note
-
1) Due to continuous research development, specifications features may change without prior notice.
2) Weight data mentioned above is provided considering tolerance of ±2kg.
