CS/CU-WU12BKYFM

MRP(Inclusive of all Taxes):₹ 56,900.00

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CS/CU-WU12BKYFM

Specs

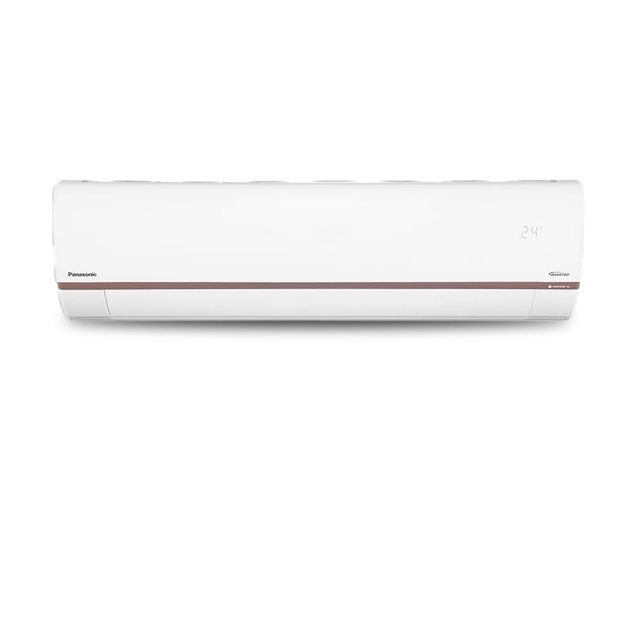

Photo of CS/CU-WU12BKYFM

Type

  • Cooling Only

Tonnage Class (TR)

  • 1.0

Model [50Hz]

  • CS/CU-WU12BKYFM

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 11772 [5297 - 12949]

Cooling Capacity Standard [Min. - Max.] (W)

  • 3450 [1553 - 3795]

Heating Capacity Standard [Min. - Max.] (Btu/h)

  • -

Heating Capacity Standard [Min. - Max.] (W)

  • -

ISEER

  • 4.00

Annual Power Consumption (kWh)

  • 667.36

Star Rating (★)

  • 3★

Electrical Data

  • Voltage (V-AC)

    • 230
  • Phase (Φ)

    • Single Phase
  • Running Current (A)

    • 5.0
  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1095 [360 - 1478]
  • Power Input, Standard Heating [Min. - Max.] (W)

    • -

Moisture Removal Rate (l/h)

  • 1.0

Moisture Removal Rate (Pt/h)

  • 2.1

Air Circulation (Indoor) (mᵌ/min)

  • 13.5

Air Circulation (Indoor) (ftᵌ/min)

  • 477

Net Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 87.0
  • Breadth (B) (cm)

    • 23.6
  • Height (H) (cm)

    • 29.6

Gross Dimensions of the Indoor Unit

  • Length (L) (cm)

    • 96.0
  • Breadth (B) (cm)

    • 27.6
  • Height (H) (cm)

    • 36.0

Net Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 78.0
  • Breadth (B) (cm)

    • 28.8
  • Height (H) (cm)

    • 54.2

Gross Dimensions of the Outdoor Unit

  • Length (L) (cm)

    • 90.0
  • Breadth (B) (cm)

    • 40.5
  • Height (H) (cm)

    • 60.7

Noise Level

  • Indoor (H/Q) [dB-A]

    • 43/36
  • Outdoor [dB-A]

    • 53

Net Weight

  • IDU [ODU] (kg)

    • 10 [22]
  • IDU [ODU] (lb)

    • 22 [48.5]

Gross Weight

  • IDU [ODU] (kg)

    • 11 [26]
  • IDU [ODU] (lb)

    • 24.2 [57.3]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 55

Operating Volt. Range (V)

  • 145 - 285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635
  • Gas Side (cm)

    • Ø0.952

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5
  • Maximum Pipe Length * (m)

    • 10
  • Maximum Elevation Length * (m)

    • 5
  • Additional Refrigerant Gas * (g/m)

    • 10

Power Supply Source

  • Indoor

In the Box

  • Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual with Warranty Card: 1N

Note

  • 1) Due to continuous research development, specifications features may change without prior notice.
    2) Weight data mentioned above is provided considering tolerance of ±2kg.
