LEICA DG SUMMILUX 9mm / F1.7 ASPH. (H-X09) Micro Four Thirds Lens
MRP(Inclusive of all Taxes):₹ 49,990.00
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
H-X09
LEICA DG SUMMILUX 9mm / F1.7 ASPH.

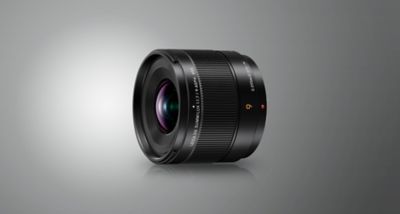

![](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614129.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
LEICA DG Lens – ultimate optics
![LEICA DG Lens – ultimate optics](/content/dam/Panasonic/Global/Lumix/2022/H-X09/lumix-2022-x09-feature-1b-220420.jpg.thumb.644.644.jpg)
Ultra-wide-angle, large aperture and half life-size macro
![Ultra-wide-angle, large aperture and half life-size macro](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614104.jpg.pub.thumb.644.644.jpg)
Superb close-up performance
![Superb close-up performance](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614105.jpg.pub.thumb.644.644.jpg)
Dust, splash and freeze-resistant design
![Dust, splash and freeze-resistant design](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614106.jpg.pub.thumb.644.644.jpg)
Ideal for video recording
![Ideal for video recording](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614107.jpg.pub.thumb.644.644.jpg)
H-X09 lens construction
![H-X09 lens construction](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614108.jpg.pub.thumb.644.644.jpg)
H-X09 MTF chart
![H-X09 MTF chart](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614109.jpg.pub.thumb.644.644.jpg)
Get Inspired
Specs

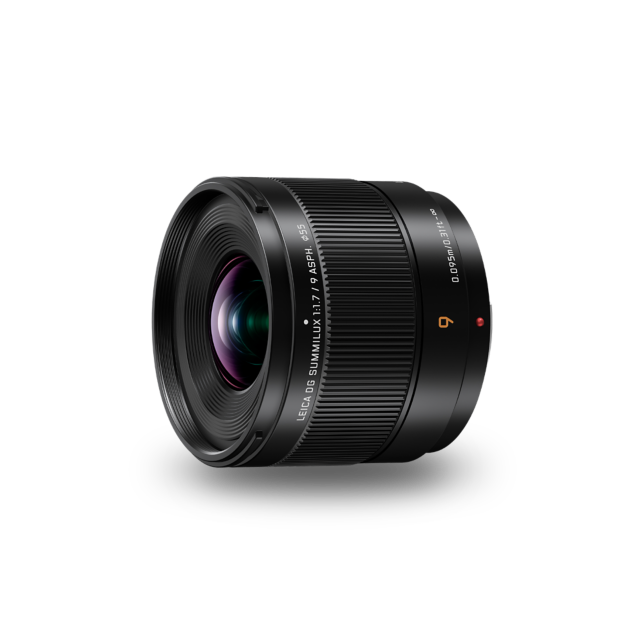

![Photo of LEICA DG SUMMILUX 9mm / F1.7 ASPH. (H-X09) Micro Four Thirds Lens](/content/dam/pim/in/en/H-/H-X09/H-X09/ast-1614135.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 60.8mm
- Width
- 60.8mm
- Depth
- 52.0mm
- Weight
- 130g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
Micro Four Thirds System Standard
LEICA DG Lens
Dust / Splash / Freeze Resistant
Based on Leica Camera AG's strict quality standards
9mm ultra-wide-angle (35mm camera equivalent: 18mm) and large aperture F1.7 fixed focal length lens
Excellent close-up performance with a closest focusing distance of 0.095m and a maximum magnification 0.5x (35mm camera equivalent)
Lens Construction
-
12 elements in 9 groups (2 aspherical lenses, 2 ED lenses, 1 UHR lens)
Mount
-
Micro Four Thirds mount
Focal Length
-
f=9mm (35mm camera equivalent 18mm)
Aperture Type
-
7 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
-
F1.7
Minimum Aperture
-
F16
Closest Focusing Distance
-
0.095m / 0.31ft
Maximum Magnification
-
0.25x / 0.5x (35mm camera equivalent)
Diagonal Angle of View
-
100°
Dust and Splash Resistant
-
Yes*
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Recommended Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
Filter Size
-
φ55mm
Max. Diameter
-
Approx. φ60.8mm / 2.39inch
Overall Length
-
Approx. 52.0mm / 2.05inch (from the tip of the lens to the base side of the lens mount)
Weight
-
Approx. 130g / 0.29lb (excluding lens cap, lens rear cap and lens hood)
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood
