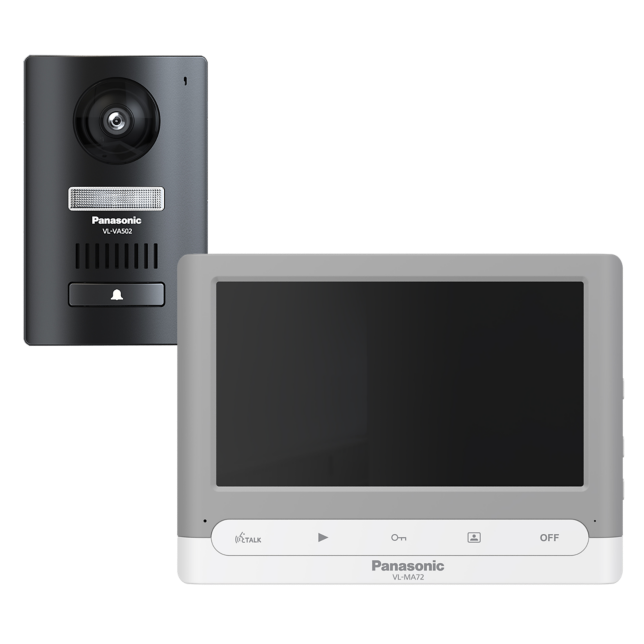

VL-SA72CX
Your Secure, Connected, and Intelligent Doorway
Enhance home security with our video intercom featuring 7-inch wide screen and touch button operation, HD Video recording, Arabic support, night vision and expandable analog model. IP65 waterproof for reliable outdoor use and supports up to three additional monitors.
Features
7-inch Wide Display with Touch Button Operation
The monitor has a large 7-inch wide screen and touch button operation that clearly shows each visitor’s face.
Picture and Video Recording
Images up to 100 from doorphone calls and monitoring sessions. (Up to 50 session [up to 4 still images per session])
Electric Lock Release Support
The door lock can be easily and quickly released using monitors from anywhere in the house.
IP65 Waterproof
Durable and weather-resistant with IP65 rating for reliable outdoor use
Supports Arabic
You can change the language of the displayed menu to Arabic.
2 Megapixels for Clear Image
The 2 - megapixel image sensor on the door phone takes visitor images at HD image
Expandability (Room Monitor)
Upto 4 (1 Main +3 Additonal)
Night Vision
The doorphone is equipped with LED lighting that enables visitors at a distance of about 50 cm to appear in colour, even when it is dark.
Specs
Highly Expandable Analog Video Intercom
7-inch Wide Display with Touch Button Operation
Picture and Video Recording
Electric Lock Release Support
2 Megapixels for Clear Image
Solution
-
MCU
-
T582
-
-
CMOS CAMERA
-
1/3" 2MP
-
-
Stream resolution (Video)
-
720 X 576
-
-
Stream resolution (Image)
-
720 X 288
-
Monitor
-
Screen size
-
7" TFT (BOE)
-
-
Screen resolution
-
1024*600
-
-
Effective Area
-
154.21 (H)×85.92 (W)mm
-
-
Flash Memory
-
8 MB
-
-
Brightness Setting
-
Yes
-
-
Contrast Setting
-
Yes
-
-
Colour Setting
-
Yes
-
-
Volume adjustment
-
Yes
-
Basic funtion
-
Monitoring time
-
60S
-
-
Talking time
-
120S
-
-
Working distance
-
100M (4X1.0 mm²)
-
-
External SD Card Support
-
Yes (Max.32GB , class 10 and above)
-
-
Image Storage
-
Yes
-
-
Image Storage Capacity
-
Built in memory for about. 100 images
-
-
Video Storage
-
Yes
-
-
Video Storage Capacity
-
Yes (Based on SD card)
-
-
Video Length
-
120s
-
-
Unlocking
-
Outdoor unit support one E-Lock or NO NC COM.
-
-
Intercom (Monitor to Monitor)
-
No
-
-
Voice Messages
-
NA
-
-
Digital Photo Frame
-
NA
-
-
Effective Area
-
154.21 (H) × 85.92 (W)mm
-
-
Languages
-
English/Arabic
-
Extension
-
Indoor Monitors
-
4 (1+3)
-
-
Outdoor unit
-
2 (1+1)
-
-
External CCTV Support
-
2
-
-
External securty sensor
-
2
-
-
TV output support
-
Yes
-
Outdoor unit
-
Camera type
-
Common Wide Angle Camera
-
-
Door Lock Release
-
NO, COM, NC
-
-
Camera sensor
-
CMOS
-
-
Camera resolution
-
1/3" 2MP (SmartSens SC2366 )
-
-
Viewing Angle
-
120° (diagonal), 90° (horizontal), 66° (vertical)
-
-
Night Vision
-
White Lighting
-
-
Mount
-
Surface Mount
-
-
Speaker volume
-
Adjustable
-
-
Waterproof
-
IP65
-
-
Damageproof
-
IK08
-
-
Manual camera adjustment (joystic for camera angle)
-
Adjustable
-
Power
-
Power Adapter
-
DC15V 1.0 Amp
-
-
Working consumption
-
Standby <3W, Working <10W
-
-
Working power
-
DC15V 0.45 Amp
-
Environment
-
Termperature
-
-20 ～+70
-
-
Humidity
-
10%~90% (RH)
-
-
Waterproof
-
IP65
-
Package
-
Monitor size(L*W*H)mm
-
140*190*21.5
-
-
Outdoor unit size(L*W*H)mm
-
150*95*37.7
-
-
Assessory
-
Screws bag *1pc, Adapter*1pcs, Mounting bracket*1pcs,
Installation manual*1Pcs, User manual English/Arabic
-
