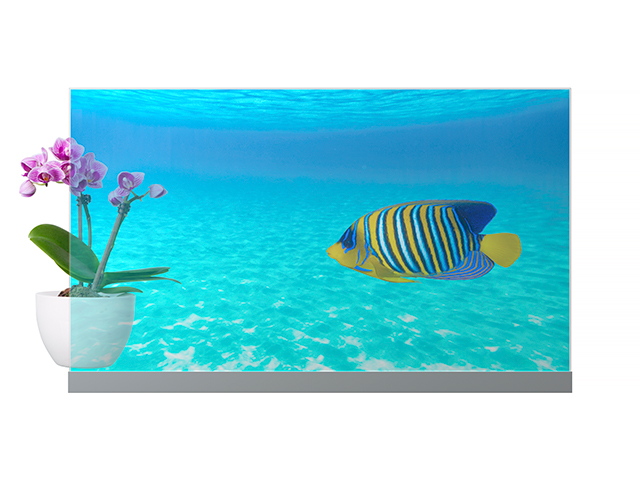

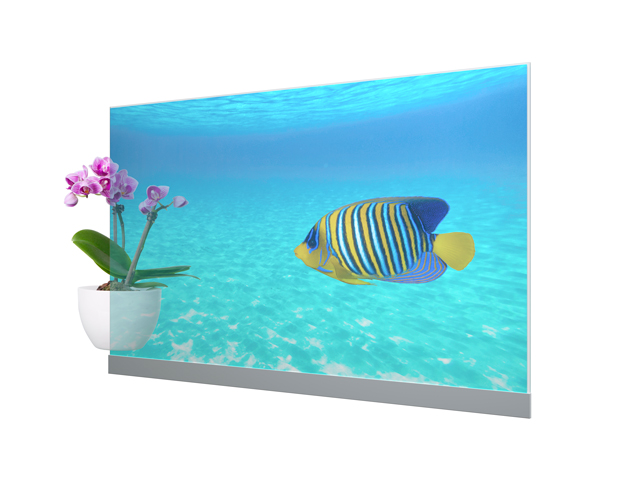

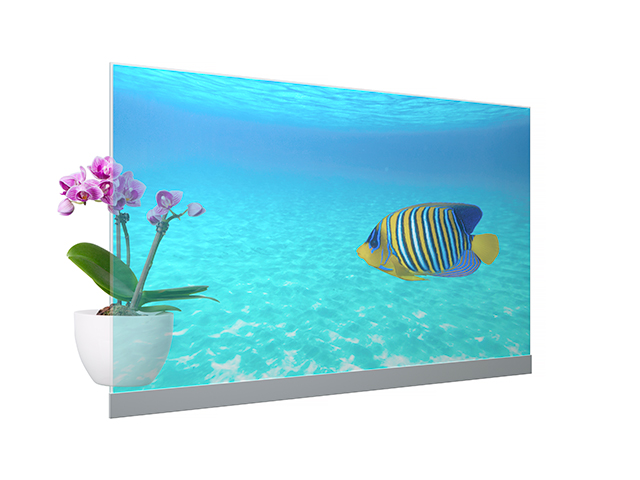

Transparent OLED: TP-55ZT110/ TP-55ZT100
Innovative Solution of Digital Display
Transparent OLED is a new type of digital display. Viewers can see through the back side of the display.
The combination of products, exhibits and images enables effective and attractive promotion.

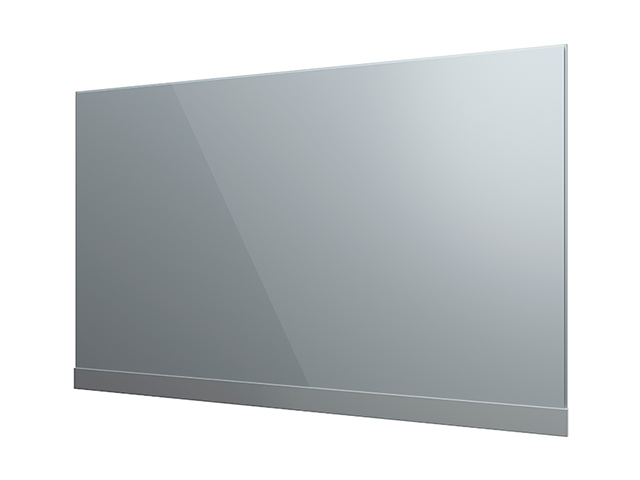

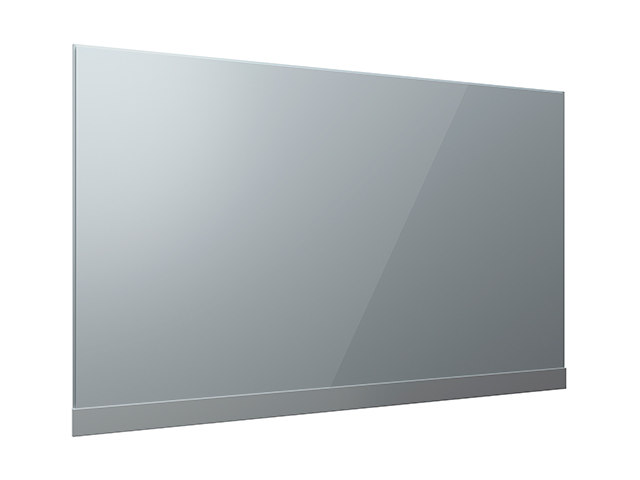

TP-55ZT110
with Dimming Unit
* Installation accessories are not supplied by Panasonic.
TP-55ZT100
without Dimming Unit
Why Transparent OLED?
High transparency
The organic light emitting diodes arranged to configure each pixel on the transparent OLED display panel emit light on their own, so the display panel renders vivid, high-quality images without using a backlight. Furthermore, its wide viewing angle enables clear viewing of the displayed image even from an oblique angle.
* Calculated using the ratio of brightness that penetrates the module when Panasonic’s standard white screen light source is used as incident light.
* The TP-55ZT110 Transparency: 28%
* This image shows the TP-55ZT100 without Dimming Unit.

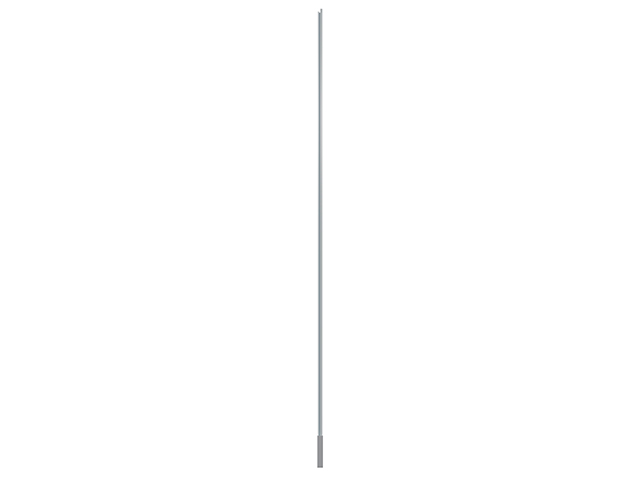

* The TP-55ZT110 Display Thickness: 7.6mm (with dimming unit)
Achieves compact installation with a thin structure
In addition, OLED is a self-luminous display that does not require a backlight, so it can be utilised for compact installations.
Display Thickness
55ZT100: 3.8 mm (without dimming unit)
Why Panasonic’s Transparent OLED?
Panasonic Original Panel Technology with the Dimming Unit for the 55ZT110 –
Clear images even in bright environments
Panasonic's unique panel, which combines a Dimming Unit that opens and closes according to voltage like a liquid crystal panel, realizes clear images even in bright installation locations. You can choose between transparency or dynamic contrast by turning dimming on and off.
Black Mode
Dynamic Contrast
Transparent Mode
More Transparent
Panasonic Original Lamination Technology with the Dimming Unit for the 55ZT110 -
Rich colors even with high transparency
Unique Panasonic technology allows industry leading transparency by eliminating the air layer between the glass layers of the panel. This results in the elimination of significant light reflection which delivers rich colours whilst maintaining transparency.
Conventional Transparent OLED
With Air Layer
When air layers exist, light reflects between the layers to cause glare.
Panasonic Transparent OLED
No Air Layer
Air layers are eliminated to produce clear images without glare.
Multi Screen Installation –
Dynamic images of 4K large screen
It is also possible to combine multiple screens and install on a larger screen. Since it can be installed on up to 4 screens, 4K images can be displayed on a powerful large screen of 110 inches with a sense of realism.
In addition, the displays are bezel-less which results in seamless multi screen installations creating one entire image.
* The display resolution of each panel is Full HD(1920 x 1080 pixels).
* Installation accessories are not supplied by Panasonic.
Usage Scenes
Retail Signage
Thanks to its high transparency, Panasonic transparent OLED display will help you create a spacious & sophisticated retail experience for your customers.
Panasonic Transparent OLED display delivers information through a screen while showing objects right behind the display. Viewers can easily see both the object and the relevant information at the same time.
Restaurant Signage
Panasonic transparent OLED display can be used as a partition at restaurants and cafes, or simply use as digital signage.
Transparent OLED panels can be used to offer restaurant patrons the ultimate dining experience. Installation allows customers to enjoy a tailored indoor visual display whilst simultaneously viewing the scenery outside.
Museum Signage
The transparent OLED allows for artwork to be displayed securely behind glass whilst also supplying key details like name of work, artist, explanations and more without disturbing the presentation inside the case.
Hotel Signage
Transparent OLED display shows floor information, restaurant information, and other information for guests in the reception, lobby or hotel entrance without compromising the interior. It greatly enhances the guest experience along with modernising the space.
• All images used are for illustrative purposes only.
* Installation accessories are not supplied by Panasonic.
Specifications
Model No. |
TP-55ZT110 |
TP-55ZT100 |
|
Panel Unit |
Screen Size / Aspect Ratio |
55-inch / 16:9 |
|
Number of Pixels (H x V) |
1920 x 1080 pixels |
||
Panel Type |
Transparent OLED panel |
||
Dimming Unit |
Yes |
- |
|
Brightness (Typ.) |
400/150 cd/m2 (Average Picture Level 25%/100%, without Glass) |
||
Transparency (Typ.) |
28%* |
43%* |
|
Viewing Angle |
178 X 178 (H x V) |
||
ResponseTime |
1ms (G to G) |
||
Surface Treatment (Haze) |
Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Reflectance Typ. 14%) |
||
Operation Hours |
18 Hrs / days *Moving Video Only |
||
Orientation |
Landscape |
||
On Screen Display Menu Languages |
English / German / Italian / Spanish / French / |
||
Size |
Effective Display Area (W x H) |
1209.6 x 680.4 mm |
|
Panel Outer Dimensions (W x H x D) |
Approx. 1235 x 748.9 x 7.6 mm |
Approx. 1225 x 744.4 x 3.8 mm |
|
Weight |
Approx. 14.0kg |
Approx. 8.0 kg |
|
Packaging Dimensions (W x H x D), Weight |
1365 x 925 x 133 mm, |
1365 x 925 x 133 mm, |
|
Size |
External Dimensions |
210 × 60 × 305 mm |
|
Weight |
Approx. 1.75 kg |
||
Packaging Dimensions (W x H x D), Weight |
648 x 373 x 170 mm, approx. 6 kg |
||
Key Feature |
Rotation / CEC function |
||
Operating Power Supply |
AC 100 - 240 V, 50/60 Hz |
||
Terminal |
HDMI Terminal |
1 (Compatible with CEC Ver. 1.4b) |
|
Audio Output |
f3.5-mm Stereo mini jack |
||
USB Terminal |
For use in software updates |
||
Power Consumption / Standby Power Consumption |
292 W / approx. 0.5 W (standby mode) |
||
Power Cable Length |
Approx. 1.8 m |
||
Operating Range |
Ambient temperature: 0°C to 40°C, |
||
Included Items |
Panel Unit |
T-Con board (1), T-Con cover (1), |
T-Con board (1), T-Con cover (1), |
Power Supply Unit |
|
||
* Calculated using the ratio of brightness that penetrates the module when Panasonic standard white screen light source is used as incident light. |
