3-PIPE FSVEX Heat Recovery
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
3 Pipe FSVEX
3-PIPE FSVEX Heat Recovery
Extraordinary energy-saving performance for simultaneous cooling and heating.
Features
Extraordinary Energy Saving Performance
Market leading energy efficiency is achieved thanks to Panasonic’s unique heat exchanger design coupled with All Inverter compressors. Whilst full load EERs and COPs are impressive, the system becomes even more efficient at part loads; its most realistic system application.
Full-Capacity Operation Up To 43°C
Ensuring reliable operation in Australia’s harsh climates, the FSVEX can provide cooling even at an outdoor temperature of 52°C, or heating when the temperature is as low as -20°C. These Units, impressively, operate at 100% capacity when the outside temperature reaches 43°C. The Panasonic FSVEX ensures constant comfort year round.
Market Leading System Design Flexibility
The Panasonic 3-PIPE FSVEX achieves market leading system design flexibility through the provision of 500m piping length, 150% connection diversity, and a high external static pressure of 80Pa. These features ensure that system design for locations such as airports, train stations, schools and hospitals is easier, whilst also enabling consolidated installations in plant rooms.
Intelligent Three Stage Oil Management System
Whilst many VRF systems are programmed to engage a full oil recovery cycle at set time intervals, Panasonic’s FSVEX systems will only undertake full oil recovery when required. Monitoring oil levels in each compressor is a mounted sensor, ensuring that a shortage of oil in one compressor is compensated for by oil recovery from either a compressor within the same unit, or an adjacent outdoor unit (in installations with multiple outdoor units). This technology provides users with a increased comfort (reduced noise and overcooling / overheating) whilst also saving energy.
Leading Control Options
Panasonic air conditioning systems allow flexible control options. Individual, Centralised, and even Cloud Control are all possible. Please consult with a Panasonic air conditioning specialist for advice as to which control solution would best suit your system requirements.
Anti Corrosion
All outdoor heat exchangers feature our standard Blue Fin technology, which increases resistance to corrosion compared to non-Blue Fin models.
* Refer to the installation instructions for further details.
* Graphics are for illustrative purposes only.
Extensive Range
With a wide range of systems from 22.4kW to 135.0kW, our lineup of FSV units are suitable for a vast variety of applications.

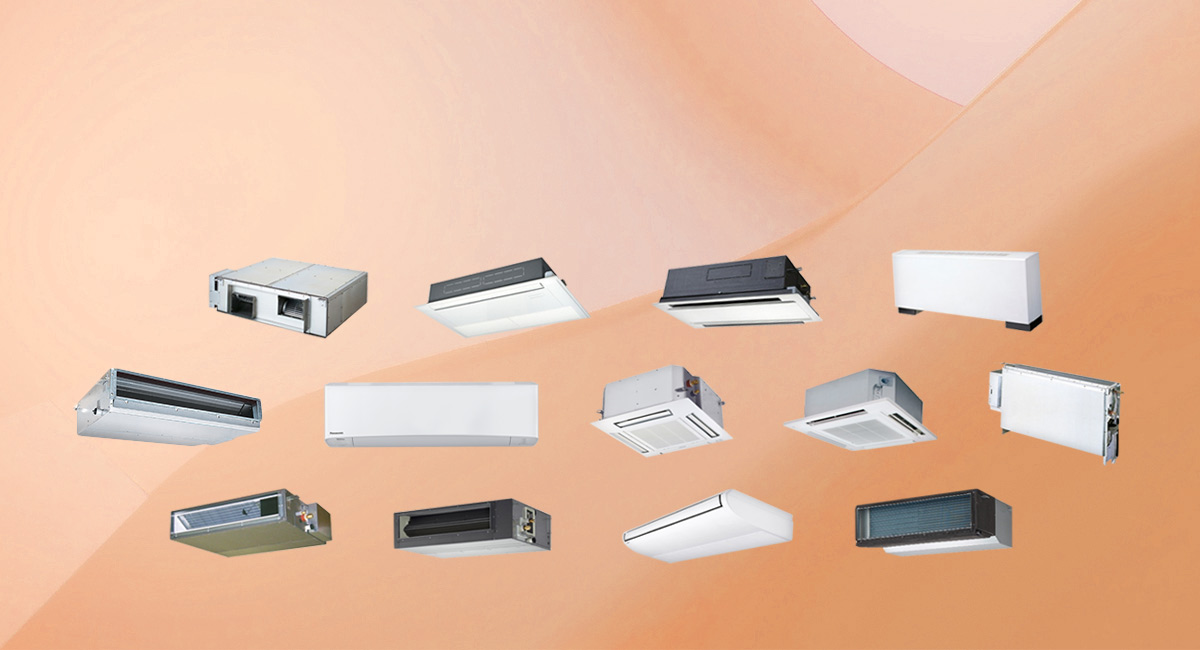

Comprehensive Array of Indoor Units
With units suitable for any application, our broad array of Panasonic VRF Indoor units ensures that all of your system requirements are satisfied. Capacities range from 2.2kW to 28kW, ensuring all application possibilities are accounted for.
Designed for Australia
Experience an outstanding operating temperature range. Cooling is possible even at an outside temperature of 52ºC and heating possible even at a freezing -20ºC.
Built Tough to Last
Our outdoor units are built to last in the harsh Australian environment. Internal components are built to withstand the damaging effects of salty air, dust, wind and rain.
Quiet Operation
Panasonic Air Conditioning is amongst the quietest in the world. Both our indoor and outdoor units have been engineered to ensure you get a peaceful night’s sleep.
Panasonic Air Conditioners deliver more than just cooling or heating solutions.
We want to create Total Air Solutions that improve indoor air quality, for healthier and better living.
Air Conditioning Expertise
Since the introduction of our first window-type air conditioning in 1958, Panasonic Air Conditioning has grown to become a globally recognised and celebrated brand, delivering unmatched quality and reliability.
Total Air Solutions
With over 300 products, Panasonic has a product or solution for every application. From residential applications to large scale commercial, we endeavour to provide fully customisable total air solutions for any and all applications.
Quality & Reliability
Panasonic air conditioners are manufactured to ensure years of reliable comfort. With a 5 year warranty encompassing both residential and commercial applications, you can rest easy with Panasonic.
Connectivity
Panasonic provides control solutions to satisfy all residential and commercial needs. Our range of controllers demonstrate flexibility in application, providing you with a comprehensive solution to any system need.
Product Specifications
OUTDOOR UNITS:
U-8MF3R7, U-10MF3R7, U-12MF3R7, U-14MF3R7, U-16MF3R7
• Specifications, functions and designs are subject to change without prior notice for further improvement.
• The contents of this webpage are effective as of October 2018.
• Graphics are provided merely for the purpose of illustrating a point.
• Due to variances in display devices, actual colours may vary from those shown.
