S-R70300

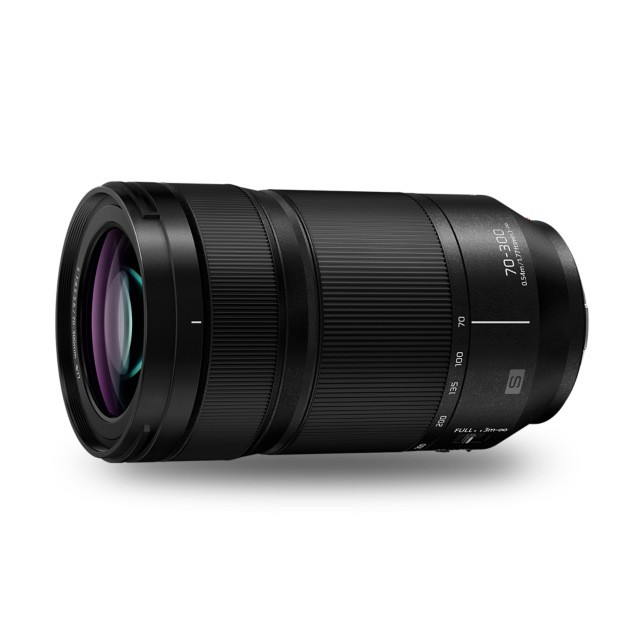

LUMIX S 70-300 mm F4.5-5.6 MACRO O.I.S.
A compact telephoto zoom with macro shot capability.
Features
70-300 mm Zoom with Excellent Image Quality and Flexibility
The lens optical design is compact and lightweight, yet it provides a 300 mm zoom at the telephoto end to dynamically to allow you to shoot the subject up close such as in wildlife, sports events or an airplane landing. The powerful zoom gives the photographer increased creative flexibility when shooting outdoors.
Superb Close-up Performance
With a closest focusing distance of 0.74 m (at 300 m)* and maximum magnification of 0.5x (at 300 m) the 70-300 mm gives you the freedom to shoot a wide range of shooting opportunities in a wide range of shooting scenarios. Close-up views of small and sensitive subjects, such as birds and butterflies, can be easily captured from a distance.
* Closest focusing distance of 0.54 m (at 70 mm) / 0.74 m (at 300 mm).
Creating of Beautiful Lights
The 11-blade circular aperture diaphragm features optimized blade shape and arrangement. It contributes to beautiful rendition of light sources within your images, such as sunlight shining through tree leaves and colorful illuminations, by creating soft and exquisitely attractive-looking beams of light.
O.I.S. for Ultra-Sharp Photos
Combining the O.I.S. (Optical Image Stabilizer, 2-axis) in the lens and the Body I.S. (5-axis) in the LUMIX S Series camera,* the 5-axis Dual I.S. 2 compensates for blurring even powerfully, allowing the use of a 5.5-stop slower shutter speed.**
* 5-Axis Dual I.S. 2 can be used with the camera LUMIX S1H, S1R, S1 and S5, as of February 18, 2021. ** Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=300 mm, when LUMIX S5 is used).
Dust, Splash and Freeze-resistant Design
The LUMIX S 70-300 mm F4.5-5.6 MACRO O.I.S. is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allowing you to shoot in temperatures as low as -10 °C.
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ideal for Video Recording
The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.
S-R70300 Lens Construction
The optimized configuration has 17 elements in 11 groups, including 2 ED, 1 UED and 1 UHR lenses to minimize aberrations and ensure superb resolution.
S-R70300 MTF Chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.
* For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Get Inspired
Specs
Size and Weight
- Height
- 84mm
- Width
- 84mm
- Depth
- 148mm
- Weight
- 790g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
L-Mount- Dust / Splash / Freeze Resistant
70-300 mm telephoto zoom lens with a compact, lightweight design.
Excellent close-up performance with a closest focusing distance of 0.54 m (at 70 mm) / 0.74 m (at 300 mm) and a maximum magnification of 0.5x (at 300 mm).
Dust, splash and freeze-resistant design.
General
-
Lens Construction
-
17 elements in 11 groups (2 ED lenses, 1 UED lens, 1 UHR lens)
-
-
Mount
-
L-Mount
-
-
Optical Image Stabilizer
-
Yes
-
-
Focal Length
-
f=70-300 mm
-
-
Aperture Type
-
11 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F4.5 (Wide) - F5.6 (Tele)
-
-
Minimum Aperture
-
F22
-
-
Closest Focusing Distance
-
0.54 m/1.77ft (at focal length 70 mm) / 0.74 m/2.43ft (at focal length 300 mm)
-
-
Maximum Magnification
-
0.5x (at focal length 300 mm)
-
-
Diagonal Angle of View
-
34°(Wide) - 8.3°(Tele)
-
-
Dust and Splash Resistant
-
Yes*
-
-
Recommended Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
-
-
Filter Size
-
φ77 mm
-
-
Max. Diameter
-
φ84.0 mm / 3.31 inch
-
-
Overall Length
-
Approx.148.0 mm / 5.83 inch (from the tip of the lens to the base side of the lens mount)
-
-
Weight
-
Approx. 790 g / 1.75 lb (excluding lens cap, lens rear cap and lens hood)
-
-
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood
-
NOTE
-
NOTE
-
* Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
-
