S-S24

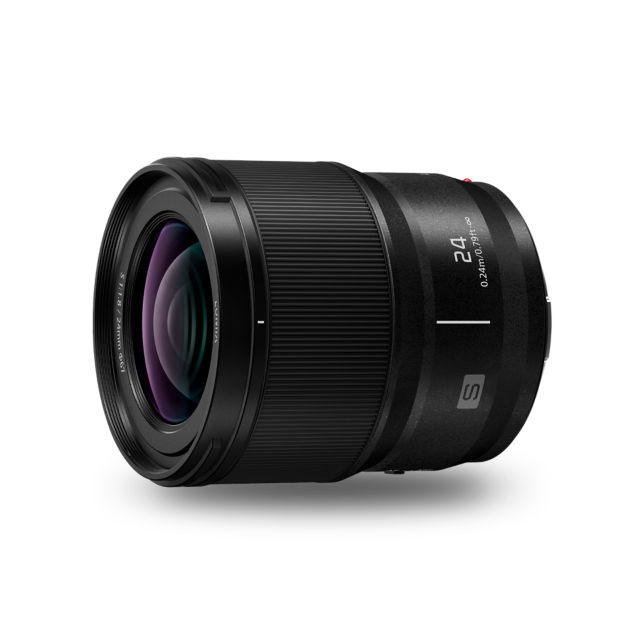

LUMIX S 24mm F1.8
Features
Richer, more detailed stills. Smoother, more compelling video.
Dust, splash and freeze-resistant design
Ideal for video recording
S-S24 lens construction
S-S24 MTF chart
Get Inspired
Specs
Size and Weight
- Height
- 73.6mm
- Width
- 73.6mm
- Depth
- 82mm
- Weight
- 310g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
- L-Mount
- Dust / Splash / Freeze Resistant
F1.8 large-aperture wide-angle fixed focal length lens with a compact, lightweight design.
Dust, splash and freeze-resistant design.
Excellent focusing performance for both photos and videos.
Name
-
Lens Construction
-
12 elements in 11 groups (3 aspherical lenses, 1 UED lens, 3 ED lens)
-
-
Mount
-
L-Mount
-
-
Focal Length
-
f=24mm
-
-
Aperture Type
-
9 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F1.8
-
-
Minimum Aperture
-
F16
-
-
Closest Focusing Distance
-
0.24m / 0.79ft
-
-
Maximum Magnification
-
0.15x
-
-
Diagonal Angle of View
-
84°
-
-
Dust and Splash Resistant
-
Yes*
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
-
General
-
Recommended Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
-
-
Filter Size
-
φ67mm
-
-
Max. Diameter
-
φ73.6mm / 2.90inch
-
-
Overall Length
-
Approx. 82.0mm / 3.23inch (from the tip of the lens to the base side of the lens mount)
-
-
Weight
-
Approx. 310g / 0.68lb (excluding lens cap, lens rear cap and lens hood)
-
-
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood
-
