Digitaalne ühe objektiiviga hübriidkaamera LUMIX DC-S1RM

DC-S1RM

Ülim eraldusvõime. Professionaalsed näitajad.

Uus 47,3 MP CMOS-andur, mis annab edastab andmeid erakordselt loomutruult. Teravustamis- ja kujutise stabiliseerimise süsteemid, mis jäädvustavad rabava selgusega iga hetke. Korpuse disain, mis juhib fotograafilised eesmärgid sujuvalt unustamatute piltide suunas. LUMIX S1RM Kit koosneb kompaktsest ja kergest standardsest suumobjektiivist S-R24105mm , mis toimib laias fookuskaugusvahemikus alates 24 mm lainurgast kuni 105 mm kesk-telefotoni.
Suumi sisse
Suumi välja
Sule

Funktsioonid

47,3 MP CMOS-andur – võrreldamatu väljendusjõud

LUMIX S1R on loodud ülima fotograafilise väljenduse pakkumiseks. Valdkonna kõrgeima eraldusvõimega 47,3-megapiksline täiskaader (36 mm x 24 mm) CMOS-andur loob detailirikkad ja rabavalt loomutruud pildid, ilma et madalpääsufilter takistama hakkaks.
Kiibil asetseva asfäärilise mikroläätse ja valguse langemist fotodioodile suurendava optimeeritud ehitusega uus andur ühendab oma klassi parima megapikslite arvu ja erakordse valguse tihendamise määra.* Tulemuseks on ülikõrge signaali ja müra suhe ja maksimaalne tundlikkus ISO25600. See on täiskaader-pildikvaliteet, mis võimaldab fotograafidel viia oma looming varem kättesaamatuks jäänud kõrgustesse.
* Täiskaadriliste digitaalsete ühe objektiiviga hübriidkaamerate seas seisuga 1. veebruar 2019.
47,3 MP CMOS-andur – võrreldamatu väljendusjõud

Venus Engine'i ilu

CMOS-anduri ühendamine pilditöötlusmootoriga Venus Engine loob hämmastava värvirikkuse ja loomuliku tekstuuriväljenduse. Mitmepiksline heleduse loomine ja intelligentne detailide töötlemine tagavad intensiivse heleduse ja kontrastsuse. Rikkalike, tumedast heledate toonideni värvidega kolmemõõtmeline värvijuhtimine ja ülitäpne mitmetoiminguline mürasummutus teevad teie pildid löövaks isegi kõrgete ISO-tundlikkuse seadete juures.
Venus Engine'i ilu

5-teljeline Dual I.S. 2: Iga põneva hetke selgelt jäädvustamine

Jäädvustage käest pildistades kindlustundega erakordselt teravaid fotosid, ilma et peaksite värinate pärast muretsema: teile ulatab abikäe 5-teljeline Dual I.S. 2 * intelligentne kompensatsioon. See on võrdne säriaja kestuse 6 kordse kahekordistamisega, mis tähendab, et saate kasutada kuni teleasendini 6-peatuse võrra aeglasemat säriaega. LUMIX S1R kõrvaldab nii korpuse kui ka objektiivi värinad isegi telefotoseades pildistamisel. Samuti töötab see nii fotode kui videote sh 4K-video jäädvustamise ajal. 5-teljelise Body I.S.-i hämmastav võimsus koos 5.5 peatusega kompensatsioonijõuga**.
* 5-teljelist Dual I.S. 2-e saab kasutada koos objektiividega S-R24105, S-E70200 ja S-R70200 alates 6. novembrist 2019.
** Põhineb CIPA standardil (horisontaalne/vertikaalne suund: teravustamiskaugus f=200 mm, kui kasutatakse objektiivi S-E70200).
*** Põhineb CIPA standardil (horisontaalne/vertikaalne suund: teravustamiskaugus f=50 mm, kui kasutatakse S-X50-t).
5-teljeline Dual I.S. 2: Iga põneva hetke selgelt jäädvustamine

Täiustatud tuvastustehnoloogia

Panasonicu täiustatud tehnoloogia tagab anduri, mootori ja objektiivi ühendatud juhtimise abil iga nurga alt väga kiire ja väga täpse teravustamise. 480 kaadrit sekundis toimuv ülikiire andur-objektiiv andmevahetus ja Panasonicu DFD tehnoloogia aitavad muuta umbes 0,08 sekundiga toimiva suure kiiruse ja suure täpsusega automaatteravustamise reaalsuseks.* Sellele lisaks toimib nõrgas valguses automaatteravustamine muljetavaldava -6EV juures.** Anduri suurem tundlikkus ja optimeeritud häälestus on suurendanud valguse tuvastamise võimet, muutes terava fokuseerimise võimalikuks ka öösel pelgalt tähtede valguses töötamisel. Täiustatud AI-tehnoloogia suudab tuvastada mitte ainult inimese keha, vaid ka loomi.
* 11EV, objektiivi S-R24105 (CIPA) lainurk-asendis, LVF120 k/s seadistuse juures.
** ISO100, F1,4, AFS juures. 100% kontrastsuse siht.
Täiustatud tuvastustehnoloogia

5,760 miljoni punktise eraldusvõimega pildinäidik

Pildinäidiku Real View Finder maailma kõrgeim 5,760 miljoni punktine eraldusvõime on oma klassi parim.* Erakordne selgus ja teravus tekitavad tunde nagu vaataksite pildistatavat oma silmaga ja aitavad teil pildistamise ajal keskenduda. Koos objektiiviga, mille moonutus keskmest kuni nurkadeni on minimaalne ja millel on suur 0,78x suurendus, toetab pildinäidik Real View Finder nii suurepärast kadreerimist kui ka suure täpsusega teravustamist. Äärmiselt väikse 0,005-sekundilise minimaalse viiteaja ja ülikõrge 120 k/s värskenduskiirusega kiirelt reageeriv OLED-displei aitab hoida kiirelt liikuvad objektid kindlalt vaateväljas. Lisaks on 0,78x suurendustegurit võimalik vastavalt võtteolukorrale lülitada kas valikule 0,7x või 0,74x.
* Täiskaadriliste digitaalsete ühe objektiiviga hübriidkaamerate seas seisuga 1. veebruar 2019.
5,760 miljoni punktise eraldusvõimega pildinäidik

Kahe mälukaardi pesaga paindlik andmehaldus

Kahe mälukaardi pesa sobib SD-mälukaartide (UHS-II) ja XQD™-mälukaartidega.* Salvestuskoharežiim võimaldab teil valida, millist kaardipesa erinevate pildivormingute salvestamiseks kasutatakse. Funktsioon on kasulik ka pikkade videote salvestamisel või varundamisel. Järjest salvestamise režiim jätkab salvestamise ajal esimese kaardi täitumisel teisele kaardile salvestamist. Varundussalvestusrežiim salvestab samad andmed mõlemale kaardile.
* Ei saa kasutada vorminguga AVCHD.
• XQD on Sony Corporationi registreeritud kaubamärk.
Kahe mälukaardi pesaga paindlik andmehaldus

Väga erinevates ilmastikuoludes kasutamiseks sobiv tugev korpus

Tugev korpus on valmis väga erinevates rasketes jäädvustamistingimustes kasutamiseks. Magneesiumsulamist täisvaluraam on väga vastupidav ning selle tihendus kaitseb igat ühendust, skaalat ja nuppu. Kaamera tervikuna on tolmu- ja pritsmekindel* ning seda saab kasutada kuni -10 °C juures. Need omadused kokku muudavad jäädvustamise väga erinevates ilmastikuoludes tulemuslikuks ja nauditavaks.
* Tolmu- ja pritsmekindlus ei taga kaamera kaitset kahjustuste eest tolmu ja veega otsese kokkupuutumise korral.
Väga erinevates ilmastikuoludes kasutamiseks sobiv tugev korpus

4K 60p/50p ühtlane video salvestamine

Koos Panasonicu 4K-tehnoloogiaga annavad CMOS-andur ja uus Venus Engine tulemuseks erakordse täiskaader-vormingus 4K 60p/50p video (QFHD 4K: 3840 x 2160 MP4).* Tänu neile täiustatud tehnoloogiatele tunduvad isegi kiirelt liikuvad stseenid ühtlaste ja loomulikena.
* Maksimaalne salvestusaeg on 4K 60p/50p puhul 15 minutit.
4K 60p/50p ühtlane video salvestamine

Valige õige objektiiv

LUMIX S1R kaamera kasutab L-Mount-objektiivikinnitusstandardit, mis võimalda valida laia valiku Panasonicu, Leica ja Sigma objektiivide seast.
Valige õige objektiiv

Inspiratsioon

Tehnilised andmed

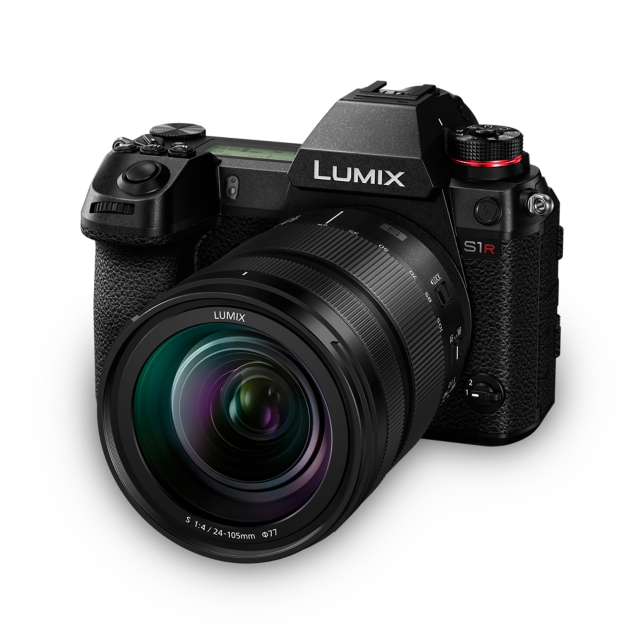

Foto Digitaalne ühe objektiiviga hübriidkaamera LUMIX DC-S1RM

Suurus ja kaal

Kõrgus
110.0mm
Laius
148.9mm
Sügavus
96.7mm
Kaal
1,016g

Kõik väärtused on ligikaudsed. Kaal koos SD-kaardi ja akuga (XQD-kaardi ja aku kaal on 1020 g). Ei sisalda objektiivi. Mõõtmed ei sisalda eenduvaid osi.

  • L-MountL-Mount
  • 47,3 megapikslit47,3 megapikslit
  • 4K-video jäädvustamise võimekus4K-video jäädvustamise võimekus
  • 6K-FOTO6K-FOTO
  • 5-teljeline Dual I.S. 2 (pildistabilisaator)5-teljeline Dual I.S. 2 (pildistabilisaator)
  • 5,76 miljoni piksline OLED reaalajas töötav pildinäidik5,76 miljoni piksline OLED reaalajas töötav pildinäidik
  • 2,1 miljoni punktine kolmel teljel kallutatav ekraan2,1 miljoni punktine kolmel teljel kallutatav ekraan
  • Oleku LCDOleku LCD
  • Pritsme-, tolmu- ja külmumiskindelPritsme-, tolmu- ja külmumiskindel
  • Wi-FiWi-Fi
  • BluetoothBluetooth

47,3 MP ülikõrge lahutusvõimega täiskaadriline CMOS-andur

4K 60p/50p sujuv videosalvestus

Suure kiiruse ja täpsusega automaatteravustamine tänu ülikiirele 480 k/s sensor-objektiiv andmesidele ja Panasonicu DFD-tehnoloogiale.

5,760 miljoni punktise ülikõrge eraldusvõimega pildinäidik

TYPE

  • Type

    • Digital Single Lens Mirrorless camera
  • Recording media

    • XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
  • Lens mount

    • L-Mount

IMAGE SENSOR

  • Type

    • 35mm full-frame (36.0 x 24.0mm) CMOS sensor
  • Camera effective pixels / Total pixels

    • 47.30 megapixels / 50.44 megapixels
  • Aspect ratio / Color filter

    • 3:2 / Primary color filter
  • Dust reduction system

    • Supersonic wave filter

STILL IMAGE

  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
    • Aspect ratio
      • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard
  • Color Space

    • sRGB, AdobeRGB
  • Recording file format

    • Still image
      • JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
    • 6K PHOTO** / 4K PHOTO**
      • 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
        4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
        Extracted still images: JPEG (DCF, Exif 2.31)
  • File size(Pixels)

    • When using full-frame lenses / 3:2
      • 8368x5584(L) / 5952x3968(M) / 4272x2848(S) / 16736x11168(XL)* *High Resolution Mode. RAW file.
        5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 6464x4320(HLG PHOTO, 8K-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses / 4:3
      • 7440x5584(L) / 5296x3968(M) / 3792x2848(S) / 14880x11168(XL)* *High Resolution Mode. RAW file.
        4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5760x4320(HLG PHOTO, 8K-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses / 16:9
      • 8368x4712(L) / 5952x3352(M) / 4272x2400(S) / 16736x9424(XL)* *High Resolution Mode. RAW file.
        3840x2160(4K PHOTO) / 7680x4320(HLG PHOTO, 8K-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses / 1:1
      • 5584x5584(L) / 3968x3968(M) / 2848x2848(S) / 11168x11168(XL)* *High Resolution Mode. RAW file.
        2880x2880(4K PHOTO) / 4320x4320(HLG PHOTO, 8K-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses / 65:24
      • 8368x3088(L)
    • When using full-frame lenses / 2:1
      • 8368x4184(L)
    • When using APS-C lenses / 3:2
      • 5504x3664(L) / 3920x2608(M) / 2784x1856(S)
    • When using APS-C lenses / 4:3
      • 4880x3664(L) / 3472x2608(M) / 2480x1856(S)
    • When using APS-C lenses / 16:9
      • 5504x3096(L) / 3840x2160(M) / 1920x1080(S)
    • When using APS-C lenses / 1:1
      • 3664x3664(L) / 2608x2608(M) / 1856x1856(S)

MOTION PICTURE

  • Recording file format

    • MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
      AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
  • MP4** [4K] 3840x2160

    • 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
      50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
      29.97p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
      25.00p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
      23.98p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
  • MP4** [FHD] 1920x1080

    • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
      50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
      29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
      25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
  • AVCHD Progressive** AVCHD** [FHD] 1920x1080

    • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
      50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)
      50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)
      23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
  • MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160

    • 29.97p (Sensor output is 60fps)
      25.00p (Sensor output is 50fps)
      23.98p (Sensor output is 48fps)
  • MP4** High speed video *When Creative Video Mode is selected. [FHD] 1920x1080

    • 29.97p (Sensor output is 180fps / 120fps)
      25.00p (Sensor output is 150fps / 100fps)
  • Continuous recordable time (Motion picture)**

    • Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
  • Actual recordable time (Motion picture)**

    • Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.

VIEWFINDER

  • Type

    • OLED Live View Finder
  • Pixels

    • Approx. 5,760k dots
  • Field of view / Magnification

    • Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1
  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
  • Eye sensor

    • Yes
  • Display speed

    • 120fps / 60fps
  • Display time lag

    • Approx. 0.005sec

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control
  • Monitor size

    • Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
  • Pixels

    • Approx. 2,100k dots
  • Field of view

    • Approx. 100%

STATUS LCD

  • STATUS LCD

    • Yes

FOCUS

  • Type

    • Contrast AF system
  • DFD technology

    • Yes
  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF
  • AF mode

    • Face/Eye/Body/Animal Detection / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
      (Full area touch is available) (Scalable AF frame size and flexible AF position)
  • AF detective range

    • EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
  • AF assist lamp

    • Yes
  • AF lock

    • Set the Fn button in custom menu to AF lock
  • Post Focus / Focus Stacking

    • Yes / Yes
  • Others

    • AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system
  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted
  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)
  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
  • ISO sensitivity (Standard Output Sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* (Changeable to 1/3 EV step) *Extended ISO
  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)
  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • IMAGE STABILIZATION SYSTEM

    • Image sensor shift type (5-axis)
      6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]

      Dual I.S. (Dual I.S. 2 compatible)
      6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
      7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias
  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter
  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
      Motion picture: 1/16,000 - 1/25
  • Shutter life

    • Approx. 400,000 images
  • Self timer

    • 10sec, 3 images / 2sec / 10sec
  • Remote control

    • Remote control by DMW-RS2 (sold separately)
  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
  • Aperture Bracket

    • 3, 5 or all positions in 1 EV step
  • Focus Bracket

    • 1 to 999 images, focus steps can be set in 10 levels
  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed -Mechanical shutter / Electronic front curtain shutter

    • AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
      AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  • Burst speed -Electronic shutter

    • AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
      AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  • Number of recordable images

    • RAW: More than 40 images
      RAW+JPEG: More than 35 images
      JPEG: More than 50 images

6K PHOTO** / 4K PHOTO**

  • Burst speed

    • 6K PHOTO: 30 frames/sec
      4K PHOTO: 60 frames/sec, 30 frames/sec
  • Exif information

    • Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

  • Flash type

    • TTL External Flash (sold separately)
  • Flash Mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.
  • Flash output adjustment

    • 1/3EV step ±3EV
  • Synchronization speed

    • Less than 1/320 second
  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • EXTRA TELE CONVERSION

    • 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / Standard (HLG) / Monochrome (HLG) / My Photo Style 1-10
  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB

FILTER

  • FILTER

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
      *For photos only.

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift***** / AF-ON: Far Shift***** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)****** / Restore to Default
  • PLAY

    • Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Restore to Default

Fn LEVER

  • Fn LEVER

    • AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default

LEVEL GAUGE

  • LEVEL GAUGE

    • Yes

OSD LANGUAGE

  • OSD LANGUAGE

    • Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian

PRINT

  • PRINT

    • PictBridge compatible

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C
  • HDMI*** Monitor-through

    • 4:2:2 8bit (Except for [4K/60p]/[4K/50p]) / 4:2:0 8bit
  • HDMI*** Playback

    • HDMI TypeA / VIERA Link
      Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
      Audio: Stereo
  • Audio video output

    • No
  • Remote input

    • φ2.5mm
  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
  • Headphone output

    • φ3.5mm
  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
  • Speaker

    • Monaural
  • Card slot

    • Slot 1: XQD Memory Card, CFexpress Card******
      Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
      1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

  • DUST AND SPLASH RESISTANT*

    • Yes.
      *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
      USB power supply, USB power charging
  • Battery life (CIPA standard)/ When using CFexpress Card

    • Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Battery life (CIPA standard)/ When using XQD memory card

    • Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Battery life (CIPA standard)/ When using SD memory card

    • Approx. 380 images (rear monitor), 360 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
  • Battery grip

    • DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
  • Weight

    • Approx. 1,020g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
      Approx. 1,016g / 2.24 lb (SD Memory Card x 1, Battery, Body)
      Approx. 898g / 1.98 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature****

    • -10oC to 40oC (14oF to 104oF)
  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software- Recording

    • LUMIX Tether
      ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
      and save remotely recorded images to the PC. Check the site below to download and install the software.
      http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
  • Software- Playback / Editing

    • ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
      https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
      ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
      http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
  • Standard accessories

    • DC-S1R Kit
      Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead,
      USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
      ・ The DC-S1R Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

INTERCHANGEABLE LENS-1

  • Lens Name

    • LUMIX S 24-105mm F4 MACRO O.I.S.
  • Lens Construction

    • 16 elements in 13 groups (2 aspherical ED lenses, 2 aspherical lenses, 1 UED lens, 2 ED lenses)
  • Mount

    • L-Mount
  • Optical Image Stabilizer

    • Yes
  • Focal Length

    • f=24-105mm
  • Aperture Type

    • 9 diaphragm blades / Circular aperture diaphragm
  • Maximum Aperture

    • F4.0
  • Minimum Aperture

    • F22
  • Closest Focusing Distance

    • 0.30m / 0.98ft
  • Maximum magnification

    • Approx. 0.5x
  • Diagonal Angle of View

    • 84°(Wide) - 23°(Tele)
  • Dust and Splash Resistant

    • Yes
      *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
  • Recommended Operating Temperature

    • -10oC to 40oC (14oF to 104oF)
  • General

    • Filter Size
      • φ77mm
    • Max. Diameter
      • φ84mm / 3.31inch
    • Overall Length
      • Approx. 118mm / 4.65inch (from the tip of the lens to the base side of the lens mount)
    • Weight [g]
      • Approx. 680g (excluding lens cap, lens rear cap and lens hood)
    • Weight [oz]
      • Approx. 23.99oz (excluding lens cap, lens rear cap and lens hood)
    • Standard Accessories
      • Lens cap, Lens rear cap, Lens hood, Lens storage bag

NOTE

  • NOTE

    • ** About motion picture recording / 6K PHOTO/4K PHOTO recording
      - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
      - Use an SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [AVCHD].
      - Use an XQD or SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
      - Use an XQD or SD memory card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] [High Speed Video], [MOV] or [6K PHOTO/4K PHOTO].
      (SD speed class is the speed standard regarding continuous writing.)
      - Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [6K PHOTO].
      - Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [High Speed Video] [4K PHOTO].
      - Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds with [MP4] in [4K/60p] [4K/50p].
      - MP4 motion pictures with [MP4] in [4K]:
      - When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
      - When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - MP4 motion pictures with [MP4] in [FHD]:
      - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
      - XQD is a registered trademark of Sony Corporation.

      *** For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

      **** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

      ***** Firmware must be updated to version 1.2 or later. Upgrade Software Key (DMW-SFU2) is required.

      ****** Firmware must be updated to version 1.2 or later.

      ******* Firmware must be updated to version 1.3 or later.

Arvustused

ARVUSTUSED

  • reddot award 2019 winner

  • TEST Fotografia Masterclass: Panasonic LUMIX S1R

Tarvikud

Kasutajatugi

Digitaalne ühe objektiiviga hübriidkaamera LUMIX DC-S1RM
