S-24PMB7H5YA

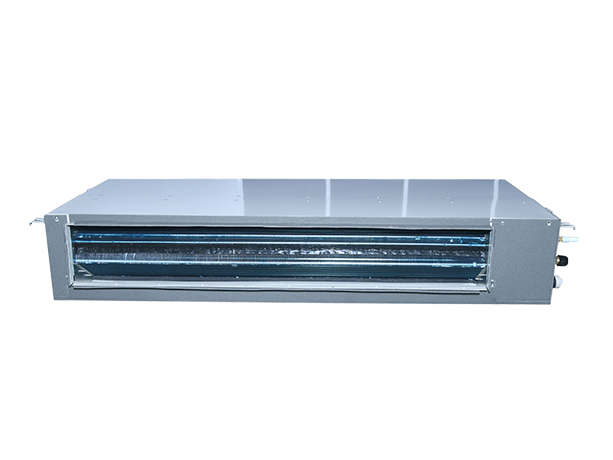

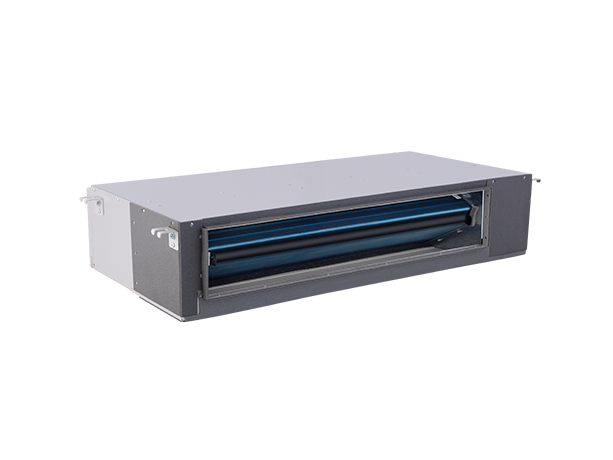

COOLING ONLY FIXED SPEED SLIM DUCT AC

Specs

Photo of S-24PMB7H5YA

Slim Design (IDU Height = 20.0cm)*

Built-in Drain Pump*

Operation Range up to 50°C

Model

  • Indoor Unit

    • S-24PMB7H5YA
  • Outdoor Unit

    • U-24PNB7H5Y

Tonnage Class

  • TR

    • 2.0

Capacity

  • Cooling (Btu/h)

    • 22179
  • Cooling (W)

    • 6500

EER

  • Cooling (W/W)

    • 3.56

Power Input

  • Cooling (W)

    • 1825

Running Current

  • A

    • 8.1

Power Supply

  • V / Φ / Hz

    • 230V / 1Φ / 50Hz

Indoor Unit

  • Air Volume Flow Rate

    • H/M/L (CMH)
      • 1220/1060/980
  • Sound Pressure Level*

    • H/M/L (dB(A))
      • 46/43/41
  • External Static Pressure

    • Pa
      • 10
  • Dimension

    • L x B x H (cm)
      • 115.5 x 50.0 x 20.0
  • Net Weight Indoor

    • kg
      • 30.0

Outdoor Unit

  • Compressor Type

    • Single Rotary
  • Sound Pressure Level

    • H/M/L (dB(A))
      • 55
  • Dimension

    • L x B x H (cm)
      • 81.0 x 30.0 x 59.4
  • Net Weight Outdoor

    • kg
      • 41.0
  • Piping Connections

    • Gas (Flare) (cm)
      • Φ1.588
    • Liquid (Flare) (cm)
      • Φ0.635
    • Drain (cm)
      • 3.2
  • Maximum Pipe Length

    • m
      • 25
  • Maximum Elevation Difference

    • m
      • 15
  • Maximum Chargeless Length

    • m
      • 5
  • Refrigerant Type

    • R-32
  • Refrigerant Charged Qty.

    • g
      • 1050
  • Control Cable

    • From ODU to IDU (Sq.mm)
      • NA
  • Power Cable

    • From ODU to IDU (Sq.mm)
      • 4C X 1.5
    • To ODU (Sq.mm)
      • 3C X 2.5
  • Operation Range

    • °C
      • up to 50ºC
  • Standard Controller (Remote)

    • Wired Type
