S-36PFB7H5YA
COOLING ONLY FIXED SPEED SLIM DUCT AC
Specs
Slim Design (IDU Height = 20.0cm)*
Built-in Drain Pump*
Operation Range up to 50°C
Model
-
Indoor Unit
-
S-36PFB7H5YA
-
-

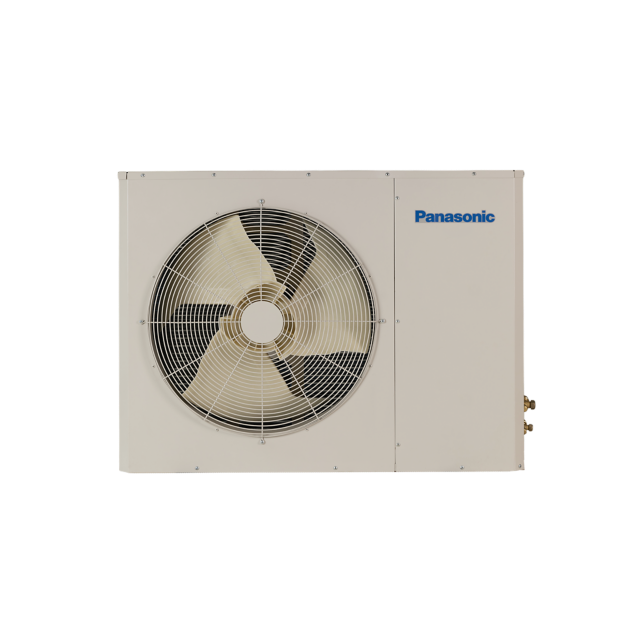

Outdoor Unit
-
U-36PNB7H5Y
-
Tonnage Class
-
TR
-
3.0
-
Capacity
-
Cooling (Btu/h)
-
36169
-
-
Cooling (W)
-
10600
-
EER
-
Cooling (W/W)
-
2.91
-
Power Input
-
Cooling (W)
-
3640
-
Running Current
-
A
-
16.0
-
Power Supply
-
V / Φ / Hz
-
230V / 1Φ / 50Hz
-
Indoor Unit
-
Air Volume Flow Rate
-
H/M/L (CMH)
-
2160/1850/1740
-
-
-
Sound Pressure Level*
-
H/M/L (dB(A))
-
50/48/46
-
-
-
External Static Pressure
-
Pa
-
20
-
-
-
Dimension
-
L x B x H (cm)
-
121.8 x 62.9 x 31.6
-
-
-
Net Weight Indoor
-
kg
-
40.2
-
-
Outdoor Unit
-
Compressor Type
-
Twin Rotary
-
-
Sound Pressure Level
-
H/M/L (dB(A))
-
63
-
-
-
Dimension
-
L x B x H (cm)
-
91.0 x 33.0 x 75.2
-
-
-
Net Weight Outdoor
-
kg
-
57.2
-
-
-
Piping Connections
-
Gas (Flare) (cm)
-
Φ1.588
-
-
Liquid (Flare) (cm)
-
Φ0.952
-
-
Drain (cm)
-
2.7
-
-
-
Maximum Pipe Length
-
m
-
30
-
-
-
Maximum Elevation Difference
-
m
-
15
-
-
-
Maximum Chargeless Length
-
m
-
5
-
-
-
Refrigerant Type
-
R-32
-
-
Refrigerant Charged Qty.
-
g
-
1600
-
-
-
Control Cable
-
From ODU to IDU (Sq.mm)
-
2C X 1.0
-
-
-
Power Cable
-
From ODU to IDU (Sq.mm)
-
3C X 1.5
-
-
To ODU (Sq.mm)
-
3C X 4.0
-
-
-
Operation Range
-
°C
-
up to 50ºC
-
-
-
Standard Controller (Remote)
-
Wired Type
-
