LUMIX dėžutės formos kamera DC-BGH1

DC-BGH1

Išlaisvinkite savo kūrybingumą

Dėžutės formos neveidrodinė kino ir tiesioginių transliacijų kamera su C4K 60p/50p, 10 bitų filmavimo funkcija.
Artinti
Tolinti
Uždaryti
DC-BGH1

Funkcijos

Dėžutės formos kino ir tiesioginių transliacijų kamera

Dvigubas vietinis ISO, C4K/4K 60p/50p 10 bitų įrašymas, 13 lygių dinaminis diapazonas naudojant „V-Log L“ – viskas lengvai naudojamoje dėžutės formos kameroje, kad filmavimas taptų lankstesnis.
Sistemos diagrama
(Įtraukite patikrintus priedus)Atidaryti naują langą
Dėžutės formos kino ir tiesioginių transliacijų kamera

10,2 MP „Live MOS“ jutiklis su dvigubo vidinio ISO technologija

LUMIX BGH1 įrengtas 10,2 MP „Live MOS“ jutiklis su dvigubo vidinio ISO technologija užtikrina įspūdingus rezultatus filmuojant tamsoje.
10,2 MP „Live MOS“ jutiklis su dvigubo vidinio ISO technologija

Platus dinaminis 13 lygių diapazonas su „V-Log L“

LUMIX BGH1 naudojamas platus 13 lygių dinaminis diapazonas su „V-Log L“, o spalvų perėjimams galima naudoti tuos pačius LUT kaip su „V-Log“.
Platus dinaminis 13 lygių diapazonas su „V-Log L“

C4K/4K 60p/50p 10 bitų vidinis / išorinis įrašymas

C4K/4K 60p/50p 4:2:0 10 bitų vidinio įrašymo ir C4K/4K 60p/50p 4:2:2 10 bitų HDMI tiesioginės išvesties išorinis įrašymas vienu metu.
C4K/4K 60p/50p 10 bitų vidinis / išorinis įrašymas

Pirmą kartą LUMIX: SDI/HDMI išvestis vienu metu

Vienu metu galite stebėti SDI išvestį, įrašyti HDMI išvestį išorėje ir valdyti kamerą nuotoliniu būdu per USB arba LAN siejimą.
Pirmą kartą LUMIX: SDI/HDMI išvestis vienu metu

Šilumos išsklaidymo valdymas = neribotas filmavimas

Tiesiog tobula LUMIX šilumos išsklaidymo technologija suteikia galimybę kompaktiška, lengva kamera filmuoti neribotą laiką visais fiksavimo režimais.
Šilumos išsklaidymo valdymas = neribotas filmavimas

Nuotolinis valdymas naudojant „LUMIX Tether for Multicam“

RAW vaizdo įrašų standartas

Pirmą kartą su LUMIX: Ethernet / PoE+ suderinama kamera



IP Streaming su PC (RTP/RTSP protokolu)

Pirmą kartą su LUMIX: „GenLock IN“, „Time Code IN/OUT“
Sužinokite daugiau
Nuotolinis valdymas naudojant „LUMIX Tether for Multicam“

Gaukite idėjų

Specifikacijos

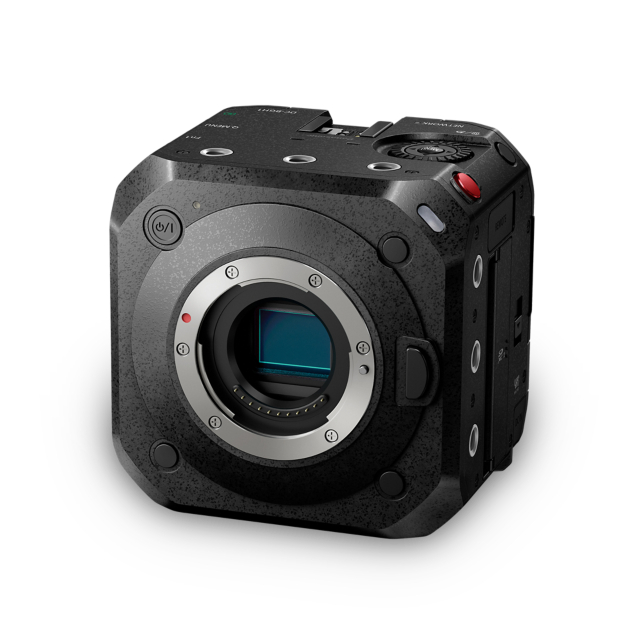

Nuotrauka LUMIX dėžutės formos kamera DC-BGH1

Dydis ir svoris

Aukštis
93mm
Plotis
93mm
Gylis
78mm
Svoris
545g

Visos reikšmės apytikslės. Tik korpuso svoris. Į matmenis neįtraukti išsikišimai.

  • „Micro Four Thirds“ sistemos standartas„Micro Four Thirds“ sistemos standartas
  • 10,2 megapikselių10,2 megapikselių
  • 4K raiškos vaizdo įrašai4K raiškos vaizdo įrašai
  • V-Log LV-Log L
  • HDMI išvestis ir SDI išvestisHDMI išvestis ir SDI išvestis
  • „Genlock IN“ ir „Timecode IN/OUT“„Genlock IN“ ir „Timecode IN/OUT“
  • Palaiko eternetą ir „PoE+“Palaiko eternetą ir „PoE+“
  • „Wi-Fi“„Wi-Fi“
  • „Bluetooth“„Bluetooth“

10,2 megapikselių

MFT „Live MOS“ jutiklis su dviguba ISO technologija

C4K / 4K 60p / 50p 10 bitų

Vidinis / išorinis įrašymas

V-Log L

13 žingsnių dinaminis diapazonas

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Recording media

    • SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

  • Lens mount

    • Micro Four Thirds mount

IMAGE SENSOR

  • Type

    • Live MOS sensor (17.3 x 13.0 mm)

  • Camera effective pixels / Total pixels

    • 10.28 megapixels / 11.93 megapixels

  • Aspect ratio / Color filter

    • 4:3 / Primary color filter

  • Dust reduction system

    • -

LATITUDE

  • LATITUDE

    • 13 stops (V-Log L)

STILL IMAGE

  • Recording file format

    • JPEG (DCF, Exif 2.31) *Still image shooting is available only when using the LUMIX Tether software.

  • Aspect ratio

    • 4:3

  • File size (Pixels)

    • 3680x2760(L) / 2592x1944(M) / 1824x1368(S)

  • Image quality

    • Fine / Standard

  • Color space

    • sRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))

  • MOV** High-res audio is selectable only when using the DMW-XLR1 (sold separately).

    • 59.94Hz [C4K] 4096x2160
      • 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 59.94Hz [4K] 3840x2160
      • 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz [C4K] 4096x2160
      • 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz [4K] 3840x2160
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz [FHD] 1920x1080
      • 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.

  • MP4**

    • 59.94Hz [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 59.94Hz [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz
      • -

VARIABLE FRAME RATE

  • MOV**

    • 59.94Hz [C4K] 4096x2160
      • 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [4K] 3840x2160
      • 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 59.94Hz [FHD] 1920x1080
      • 59.94p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        29.97p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        23.98p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 201 or more.
    • 50.00Hz [C4K] 4096x2160
      • 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
    • 50.00Hz [4K] 3840x2160
      • 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz [FHD] 1920x1080
      • 50.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        25.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 201 or more.
    • 24.00Hz [C4K] 4096x2160
      • 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [4K] 3840x2160
      • 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
      • 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 24.00Hz [FHD] 1920x1080
      • 24.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

VIEWFINDER

  • VIEWFINDER

    • -

REAR MONITOR

  • REAR MONITOR

    • -

STATUS LCD

  • STATUS LCD

    • -

FOCUS

  • Focus ring control (*6)

    • Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure

  • ISO sensitivity (Standard output sensitivity)

    • Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO

  • Dual Native ISO

    • [Normal]
      Native ISO: 160, 800
      Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 80* / 100* / 160-800 *Extended ISO
      High: Auto / 800-51200 / 102400* / 204800* *Extended ISO

      [V-Log L]
      Native ISO: 400, 2000
      Auto: Auto / 400-25600
      Low: Auto / 400-2000
      High: Auto / 2000-25600

      [HLG]
      Native ISO: 320, 1600
      Auto: Auto / 320-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 320-1600
      High: Auto / 1600-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 160, 800
      Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 80* / 100* / 160-800 *Extended ISO
      High: Auto / 800-51200 / 102400* / 204800* *Extended ISO

  • Exposure compensation

    • Motion picture: 1/3 EV step ±3EV
      Still image: 1/3 EV step ±5EV *Still image shooting is available only when using the LUMIX Tether software.

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • IMAGE STABILIZATION SYSTEM

    • -

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • -

  • Shutter speed

    • Motion picture: 1/16,000 - 1/2
      Still image: 1/16,000 - 1 *Still image shooting is available only when using the LUMIX Tether software.

BURST SHOOTING

  • BURST SHOOTING

    • -

FLASH

  • FLASH

    • -

PHOTO STYLE

  • Photo Style

    • Motion picture: Standard / Vivid / Natural / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
      Still image: Standard / Vivid (*6) / Natural (*6) / Landscape (*6) / Portrait (*6) / Monochrome (*6) / L. Monochrome (*6) / L. Monochrome D (*6) / Cinelike D2 (*6) / Cinelike V2 (*6) / Like709 (*6) / V-Log L (*6) / My Photo Style 1-10 (*6) *Tethered photo shooting with LUMIX Tether for Multicam software

  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • FILTER

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

  • Vertical Position Information (*5)

    • ON / OFF

FUNCTION BUTTON

  • REC

    • Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*6) / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control (*6) / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default

  • PLAY

    • Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / DISP. / Card Slot Change / Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

  • OSD LANGUAGE

    • Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian, Chinese (Traditional)

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C

  • DC IN

    • DC 12V (11.4-12.6V), EIAJ Type4

  • HDMI***

    • HDMI
      • HDMI TypeA
        Audio: Stereo
    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
        Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
    • Playback
      • 59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
        50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
        24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p

  • SDI

    • SDI
      • BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI
        Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB
    • Monitor-through
      • 4:2:2 10bit　　
    • Playback
      • 59.94Hz: 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
        50.00Hz: 1080/50.00p / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
        24.00Hz: 1080/24.00PsF

  • Ethernet

    • Remote Control: LAN Terminal (RJ-45)
      Power Supply: PoE+ (IEEE802.3at compliant)
      * Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.

  • Remote input

    • φ2.5mm

  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

  • Speaker

    • -

  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

  • XLR microphone

    • Yes with DMW-XLR1 (sold separately)

  • Headphone output

    • φ3.5mm

  • SD card slot

    • Slot 1, Slot 2

  • TC IN/OUT

    • Count up
      • Rec Run / Free Run
    • Timecode mode
      • Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
    • HDMI timecode output
      • ON / OFF
    • SDI timecode output
      • ON / OFF
    • External TC setting
      • TC Synchronization / TC Output Reference

  • Genlock IN

    • Genlock IN
      • ON / OFF
    • Horizontal phase synchronization
      • -206 - +49

  • Fan

    • Auto1 / Auto2 / Normal / Slow

  • Lamp

    • Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED

WIRELESS

  • Wi-Fi

    • IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode

  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

POWER

  • Direct power supply

    • AC Adaptor (12V, 3A) (bundled)
      Li-ion Battery Pack (7.28V) (sold separately)
      PoE+ (IEEE802.3at compliant) (sold separately)

  • Battery

    • Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
      Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
      Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)

  • Continuous recordable time (Motion picture)**

    • MP4 [4K/60p]: Approx. 270 min, MP4 [FHD/60p]: Approx. 300 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 420 min, MP4 [FHD/60p]: Approx. 480 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 560 min, MP4 [FHD/60p]: Approx. 640 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.

  • Actual recordable time (Motion picture)**

    • MP4 [4K/60p]: Approx. 135 min, MP4 [FHD/60p]: Approx. 150 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 210 min, MP4 [FHD/60p]: Approx. 240 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
      MP4 [4K/60p]: Approx. 280 min, MP4 [FHD/60p]: Approx. 320 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 93.0 x 93.0 x 78.0 mm / 3.66 x 3.66 x 3.07 inch (excluding protrusions)

  • Weight

    • Approx. 545g / 1.2 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature****

    • -10oC to 40oC (14oF to 104oF)

  • Operating humidity

    • 10%RH to 80％RH

STANDARD ACCESSORIES

  • Software

    • LUMIX Tether
      ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
      http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  • Standard accessories

    • AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover

      ・ The DC-BGGH1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

  • NOTE

    • (*2) About motion picture recording
      - Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
      - Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] or [MOV].
      (SD speed class is the speed standard regarding continuous writing.)
      - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
      - MP4 motion pictures with [MP4] in [4K]:
      - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
      - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - MP4 motion pictures with [MP4] in [FHD]:
      - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
      The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
      It may cause problems such as freezing when played on these devices.
      - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

      (*3) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

      (*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

      (*5) Firmware must be updated to version 2.0 or later.

      (*6) Firmware must be updated to version 2.3.

HDMI RAW DATA OUTPUT (*5) (*6)

  • Compatible external devices

    • ATOMOS Ninja V 4K HDR Monitor-Recorder (*5)
      *Selectable recording mode depends on the firmware version of Atomos Ninja V.
      *Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
      *Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*6)
      *Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
      *All functions may not be available depending on the situation.

  • Rec quality

    • NTSC (59.94Hz)[4K] 4096x2160 (17:9)
      • 59.94p, 12-bit (LPCM, High-Res Audio)
        29.97p, 12-bit (LPCM, High-Res Audio)
        23.98p, 12-bit (LPCM, High-Res Audio)
    • NTSC (59.94Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
      • 59.94p, 12-bit (LPCM, High-Res Audio)
        29.97p, 12-bit (LPCM, High-Res Audio)
        23.98p, 12-bit (LPCM, High-Res Audio)
    • PAL (50.00Hz)[4K] 4096x2160 (17:9)
      • 50.00p, 12-bit (LPCM, High-Res Audio)
        25.00p, 12-bit (LPCM, High-Res Audio)
    • PAL (50.00Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
      • 50.00p, 12-bit (LPCM, High-Res Audio)
        25.00p, 12-bit (LPCM, High-Res Audio)

  • Audio format

    • LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

IP STREAMING (*5)

  • Protocol

    • RTP / RTSP

  • Streaming quality

    • NTSC (59.94Hz)[4K] 3840x2160
      • 59.94p, 50Mbps / 25Mbps (H.265)
        59.94p, 50Mbps / 25Mbps (H.264)
        29.97p, 25Mbps / 12.5Mbps (H.265)
        29.97p, 25Mbps / 12.5Mbps (H.264)
    • NTSC (59.94Hz)[FHD] 1920x1080
      • 59.94p, 20Mbps / 16Mbps (H.265)
        59.94p, 16Mbps / 8Mbps (H.264)
        29.97p, 12Mbps / 6Mbps (H.265)
        29.97p, 6Mbps / 3Mbps (H.264)
    • NTSC (59.94Hz)[HD] 1280x720
      • 59.94p, 6Mbps (H.264)
        29.97p, 4Mbps (H.264)
    • PAL (50.00Hz)[4K] 3840x2160
      • 50.00p, 50Mbps / 25Mbps (H.265)
        50.00p, 50Mbps / 25Mbps (H.264)
        25.00p, 25Mbps / 12.5Mbps (H.265)
        25.00p, 25Mbps / 12.5Mbps (H.264)
    • PAL (50.00Hz)[FHD] 1920x1080
      • 50.00p, 20Mbps / 16Mbps (H.265)
        50.00p, 16Mbps / 8Mbps (H.264)
        25.00p, 12Mbps / 6Mbps (H.265)
        25.00p, 6Mbps / 3Mbps (H.264)
    • PAL (50.00Hz)[HD] 1280x720
      • 50.00p, 6Mbps (H.264)
        25.00p, 4Mbps (H.264)

  • RTSP Port

    • ON / OFF
Atidaryti naują puslapį spausdinimui

Skirtingų dydžių produktai

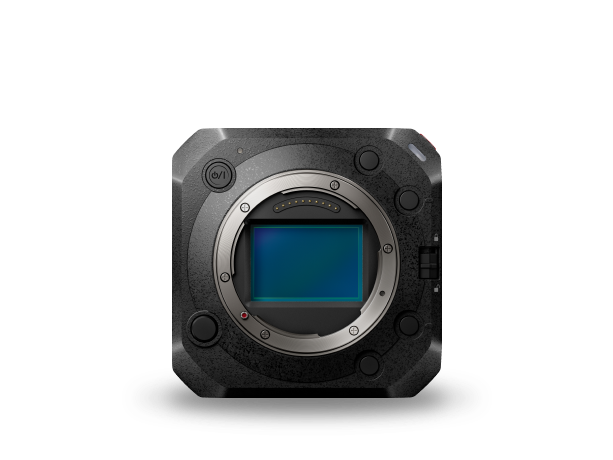

DC-BS1H

Dėžutės formos neveidrodinė kino ir tiesioginių transliacijų kamera su 6K 24p / 5.9K 30p 10 bitų filmavimo funkcija.

Priedai

Objektyvai

H-E08018

LEICA DG VARIO-ELMARIT 8-18 mm / F2.8-4.0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10–25mm / F1,7 ASFER.

H-ES12060

LEICA DG VARIO-ELMARIT 12-60mm / F2.8–4.0 ASFER. / POWER O.I.S.

H-ES50200

LEICA DG VARIO-ELMARIT 50-200 mm / F2.8–4.0 ASFER. / POWER O.I.S.

H-RS100400

LEICA DG VARIO-ELMAR 100–400 mm / F4.0–6.3 ASPH. / POWER O.I.S.

H-X012

LEICA DG SUMMILUX 12 mm / F1.4 ASPH.

H-X015

LEICA DG SUMMILUX 15 mm / F1.7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42,5 mm / F1.2 ASPH. / POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45 mm / F2.8 ASPH. / MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200 mm / F2.8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12–35 mm / F2.8 II ASFER. / POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35–100 mm / F2.8 II / POWER O.I.S.

H-F007014

LUMIX G VARIO 7–14 mm / F4.0 ASPH.

H-FS12032

LUMIX G VARIO 12–32 mm / F3.5–F5.6 ASPH. / MEGA O.I.S.

Nuotrauka H-FS12032

H-FS12060

LUMIX G VARIO 12-60mm / F3,5–5.6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14–42 mm / F3.5–5.6 ASPH. / POWER O.I.S.

Nuotrauka H-PS14042

H-FS1442A

LUMIX G VARIO 14-42mm / F3.5–5.6 II ASPH. / MEGA O.I.S.

H-FS014042

LUMIX G VARIO 14–42 mm / F3.5–5.6 ASPH. / MEGA O.I.S.

Nuotrauka H-FS014042

H-FS014045

LUMIX G VARIO 14–45 mm / F3.5–5.6 ASPH. / MEGA O.I.S.

H-FSA14140

LUMIX G VARIO 14-140mm / F3.5–5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35-100mm / F4.0–5.6 ASPH. / MEGA O.I.S.

Nuotrauka H-FS35100

H-FS45150

LUMIX G VARIO 45–150 mm / F4.0–5.6 ASPH. / MEGA O.I.S.

H-PS45175

LUMIX G X VARIO PZ 45–175 mm / F4.0–5.6 ASPH. / POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45–200 mm / F4.0–5.6 II / POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100–300 mm / F4.0–5.6 / MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8 mm / F3.5

H-H014A

LUMIX G 14 mm / F2.5 II ASPH.

H-H020A

LUMIX G 20 mm / F1.7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30 mm / F2.8 ASPH. / MEGA O.I.S.

H-HS043

LUMIX G 42,5 mm / F1.7 ASPH. / POWER O.I.S.

Baterijos / baterijų įkroviklis

AG-VBR59

Akumuliatorius

Nuotrauka AG-VBR59

AG-VBR89

Akumuliatorius

Nuotrauka AG-VBR89

AG-VBR118

Akumuliatorius

Nuotrauka AG-VBR118

AG-BRD50

Akumuliatoriaus įkroviklis

Nuotrauka AG-BRD50

XLR mikrofono adapteris / mikrofonai

DMW-XLR1

XLR mikrofono adapteris

Nuotrauka DMW-XLR1

DMW-MS2

Mikrofonas

Nuotrauka DMW-MS2

DMW-VMS10

Mikrofonas

Nuotrauka DMW-VMS10

Filmavimo lempa

VW-LED1

LED filmavimo lempa

Nuotrauka VW-LED1

Korpuso dangtelis / montavimo adapteriai

DMW-BDC1

Korpuso dangtelis

Nuotrauka DMW-BDC1

DMW-MA2M

Jungties adapteris

Nuotrauka DMW-MA2M

DMW-MA3R

Jungties adapteris

Nuotrauka DMW-MA3R

DMW-TA1

Stovo adapteris

Nuotrauka DMW-TA1
Žiūrėti visus priedus

Pagalba

LUMIX dėžutės formos kamera DC-BGH1

Apsilankykite šio gaminio palaikymo svetainėje

Parsisiųskite Ekodizaino informaciją

Atsisiųsti išorinį maitinimo šaltinį
