CZ-CAPBC2

Specs

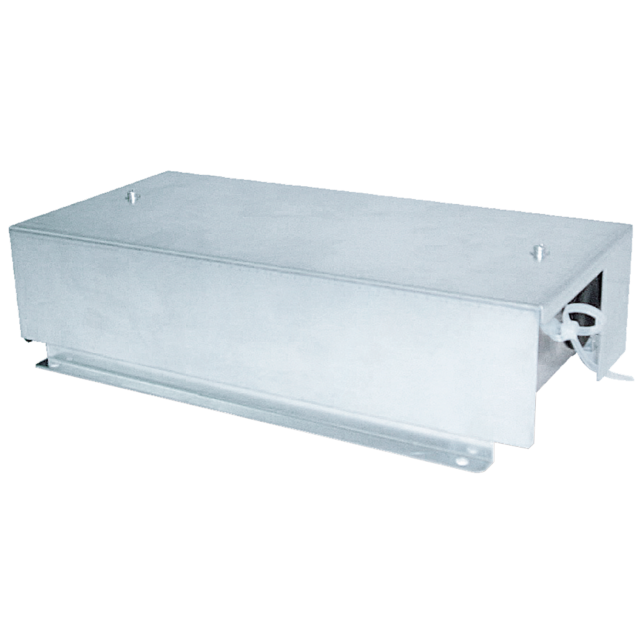

Photo of Mini Seri-Para I/O Unit 0 -10 V
  • Control and status-monitoring of individual indoor units (1 group).
  • In addition to ON/OFF, air speed and operation mode can be controlled digitally.
  • Central monitoring detects temperature settings and intake temperatures.
  • Analog input for temperature setting is 0 to 10 V, or 0 to 140 Ohm.
  • Power is supplied from the T10 terminal of the indoor units.
  • Can be used with a separate power supply (in the case of detection of intake temperatures).
