IP Video Intercom System
Transform Your Building with Customizable Security Solutions
Panasonic IP video intercom solution provides a user-friendly interface and flexible network connectivity options to support a wide range of needs, from the safe reception of visitors to the convenient use of public amenities.

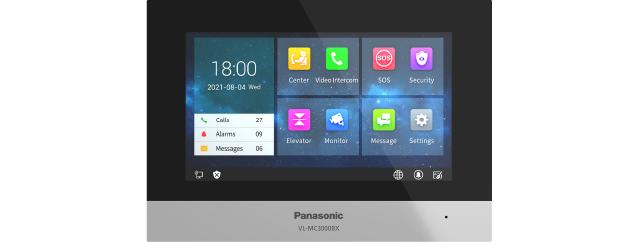

MC3000 series

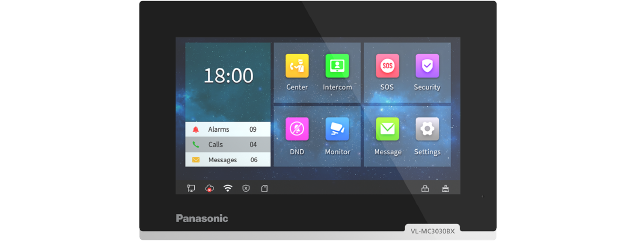

MC3030 series
Model |
VL-MC3000BX |
VL-MC3030BX/WX |
|---|---|---|
Colour | Black | Black/White |
Display | 7-inch colour (1024 x 600 resolution) | 7-inch colour (1024 x 600 resolution) |
External Material | PMMA + ABS | PMMA + ABS |
Operation Method | Capacitive touch screen | Capacitive touch screen |
Connectivity | Wired | Wired / Wi-Fi |
Storage (MicroSD Card) | - | 32GB (Included) |
Call Log Capacity | Up to 30 entries (Image) | Up to 100 entries (Video) |
Video Recording | - | Supported (with audio) |
Voice Changer | - | Real-time female-to-male voice transformation |
Power Source | Power distributor or Power Supply Unit (Sold Separately) | PoE (IEEE 802.3af) or Power Supply Unit (Sold Separately) |
Dimensions (H x W x D) | Approx. 140mm x 200mm x 15.9mm | Approx. 130mm x 194mm x 15.9mm |
Supported Languages | English, Chinese, Vietnamese, Indonesian | English, Chinese, Vietnamese, Indonesian, Thai |
Model |
VL-VC3500BX |
VL-VC3530BX |
|---|---|---|
Colour | Black | Black |
External Material | Aluminum + Tempered glass | PMMA + ABS |
Camera Pixel | 2.0M pixels | 1.0M pixels |
Viewing Angle | 78°(H) / 58°(V) | 110°(H) / 60°(V) |
Operation Method | Mechanical Keys | Mechanical Keys |
Connectivity | Wired | Wired |
E-lock Support | Yes | - |
IP / IK Protection | IP54 / IK04 | IP30 / - |
Power Source | Power distributor (VL-PC3800BX) or Power supply unit (Sold separately) | PoE (IEEE 802.3af) or Power Supply Unit (Sold Separately) |
Installation Method | Flush Mount | Flush Mount |
Dimensions (H x W x D) | Approx. 168mm x 93mm x 32mm | Approx. 150mm x 90mm x 12.5mm |
Model |
VL-VC3900BX |
VL-VC3930BX |
VL-VC3931BX |
|---|---|---|---|
Colour | Black | Black | Silver |
Display | 5.5-inch colour (480 x 272 resolution) | 7-inch (600 x 1024 resolution) | 7-inch (600 x 1024 resolution) |
External Material | Aluminum + Tempered glass | Aluminum + Tempered glass | Aluminum + Tempered glass + ABS |
Operation Method | Capacitive Touch Keypad | Capacitive Touch Screen | Capacitive Touch Screen |
Camera Pixel | 2.0M pixels | Dual Camera, 2.0M pixels (Colour) + IR Camera | Dual Camera, 2.0M pixels (Colour) + IR Camera |
Viewing Angle | 76°(H) / 50°(V) | 93.8°(H) / 50.4°(V) | 82.6°(H) / 44.6(V) |
Connectivity | Wired | Wired | Wired |
E-lock Support | Yes | Yes | Yes |
Unlock Methods | Password, Remote, QR Code | Password, Remote, QR Code, Face ID, Mifare card | Password, Remote, QR Code, Face ID, Mifare card |
Face Recognition Capacity | - | 20K | 20K |
IC Card Capacity | - | 50K | 50K |
Motion Detection | - | Supported | Supported |
IP / IK Protection | IP54 / IK07 | IP65 / IK07 | IP65 / IK07 |
Power Source | Power distributor (VL-PC3800BX) or Power supply unit (Sold separately) | POE Splitter or Power supply unit (Sold separately) | POE Splitter or Power supply unit (Sold separately) |
Installation Method | Flush Mount | Surface Mount | Flush Mount |
Dimensions (H x W x D) | Approx. 386mm x 166mm x 52mm | Approx. 246mm x 120mm x 29mm | Approx. 378mm x 162mm x 35.5mm |
Model |
VL-GC3700BX |
|---|---|
Colour | Silver |
Display | 10.1-inch (1280 x 800 resolution) |
External Material | Aluminum + Tempered glass |
Operation Method | Capacitive Touch Screen |
Camera Pixel | 1.3M pixels |
Viewing Angle | 73° (H) / 45° (V) |
Connectivity | Wired |
SOS/Duress Function | Receives SOS or alarm information |
Emergency Alarm | Sends public emergency alarms to Room Monitors |
Video Switching | Switch between internal and IP CCTV cameras |
Call Forwarding | Forward calls to another Guard Station |
Power Source | Power distributor (VL-PC3800BX) or Power supply unit (Sold separately) |
Installation Method | Desktop / Flush Mount |
Dimensions (H x W x D) | Approx. 210mm x 336mm x 34mm |
Model |
VL-PC3800BX
|
VL-PC3400BXB/C/D/E
|
VL-AC3431BX
|
VL-AC3430WX
|
|---|---|---|---|---|
Colour | Dark Grey | Grey | Black + Green | White |
External Material | ABS | Metal | Plastic | Plastic |
Power Input | 18 to 27VDC | 220-240V AC, 50/60 Hz | - | PoE (IEEE 802.3af) |
Power Output | - | 27V DC, 2.2A | - | 12VDC (5521 plug) |
Interfaces | RJ45, | - | 5521 Jack to Terminal | RJ45 (Input/Output) |
Installation Method | DIN-Rail Mounting | Surface Mount | - | - |
Dimensions (H x W x D) | Approx. 95mm x 200mm x 30mm | Approx. 124mm x 169mm x 61mm | Approx. 13mm x 37mm x 14mm | Approx. 20mm x 180mm x 18mm |
