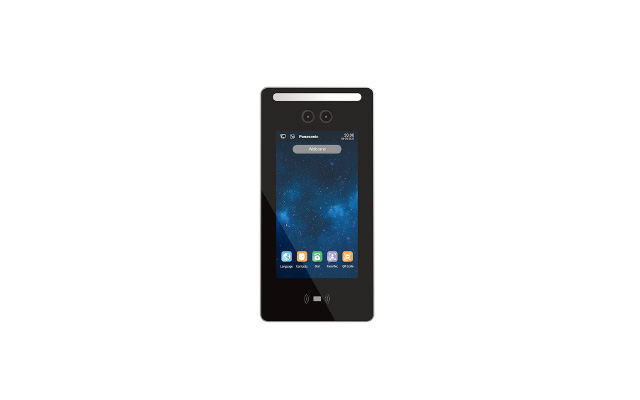

Panasonic IP Video Intercom System
Lobby Station VL-VC3930BX
1. Basic information
- Dimension: Approx. 246mm x 120mm x 29mm
- Color: Black
- External material: AL + Tempered glass
- Operation: Capacitive Touch Screen
- Installation: Surface mount
2. Features
- 7-inch colour display with capacitive touch screen
- Video intercom: Built-in 2M pixel camera + IR camera (for face ID) with microphone
- E-lock unlocking function:
- Supports password unlock
- Supports remote unlock from Mobile Apps or Intercom Devices
- Supports facial recognition unlock
- Supports Mifare card unlock
- Supports QR code unlock
- Temporary QR and password unlock: Can generate from Mobile App for visitors
- Built-in Mifare card reader: House owner can scan the resident card at Lobby Station to open the door
- Facial recognition with built-in colour camera + IR camera
- Motion Detection: Lobby Station will light up when human is detected
- Call center: Call to the Guard Station
- Leave message: Visitors can leave voice message
- Surveillance: Lobby Station video live-stream viewable on Room Monitors, Guard Stations and Mobile Apps
- Elevator access control: Call elevator & Floor Access Control (with 3rd party elevator controller)
- Device Removal Alarm: When device is removed, alarm will be sounded, and alert will be sent
- Customized Screen: Able to customize screen saver image
- Ringtone Configuration: Can set the ringtones for outgoing calls
- Web configuration: Engineer can set parameters on webpage
- Connectable to external device: Electric Lock, Door State Sensor, Lock or Fire Release Button, IP elevator controller and access controller through Wiegand output.
3．Specifications
|
System Parameters |
|
|---|---|
|
Operation system |
Linux |
|
Flash |
8GB |
|
RAM |
1GB |
|
Display Parameters |
|
|---|---|
|
Size |
7-inch wide colour display |
|
Operation Method |
Capacitive Touch Screen |
|
Resolution |
600 x 1024 |
|
Video Parameters |
|
|---|---|
|
Video Compression |
H.264 |
|
Video Pixel |
VGA, 720P |
|
Camera Pixel |
2.0M pixels CMOS sensor |
|
Minimum Illuminance Required |
0.01lx (within approx. 50cm from the camera lens) |
|
Camera Quantity |
1 Colour Camera + 1 IR Camera |
|
HDR |
Supported |
|
Viewing Angle |
93.8°(H) / 50.4°(V) |
|
Lighting Method |
White coloured LED lights |
|
Audio Parameters |
|
|---|---|
|
Audio Compression |
G.711 |
|
Speaker |
8Ω / 0.5W |
|
Microphone |
-56±2dB |
|
Face Recognition |
|
|---|---|
|
Face Capacity |
20K |
|
IC Card |
|
|---|---|
|
Card Capacity |
50K |
|
Frequency |
13.56MHz (ISO/IEC 14443 Type A (MIFARE)) |
|
Network Parameters |
|
|---|---|
|
Wiring |
UTP (Cat 5e or higher) |
|
Protocol |
IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP |
|
Device Interfaces |
|
|---|---|
|
Network Interface |
RJ45, 10BASE-T/100BASE-TX |
|
Power Out Port |
— |
|
RS485 |
Reserved |
|
Relay Output |
1 |
|
Fire Detect Port |
1 |
|
Lock Release |
1 |
|
Door Status Port |
1 |
|
Wiegand Port |
1 |
|
General |
|
|---|---|
|
Power Source |
POE Splitter or |
|
Operating Voltage |
12 to 27VDC |
|
Current Rating |
DC 12V, 625mA; DC 27V, 310mA |
|
Power Consumption |
Standby: 3.5W, Operating: 7.5W |
|
Installation Method |
Surface mount |
|
Colour |
Black |
|
Dimensions (H x W x D) |
Approx. 246mm x 120mm x 29mm |
|
Operating Temperature |
-30°C to +60°C |
|
Storage Temperature |
-40°C to +70°C |
|
Operating Humidity |
Up to 90% (non-condensing) |
|
IP rating (Ingress Protection) |
IP65 |
|
IK rating (Impact Protection) |
IK07 |
|
Talking Method |
Hands-free |
|
Display Language |
English, Chinese, Vietnamese, Indonesian and Thai |
|
Motion Detect |
Supported |
|
External Material |
AL + Tempered glass |
|
Weight |
Without package: 890g |
