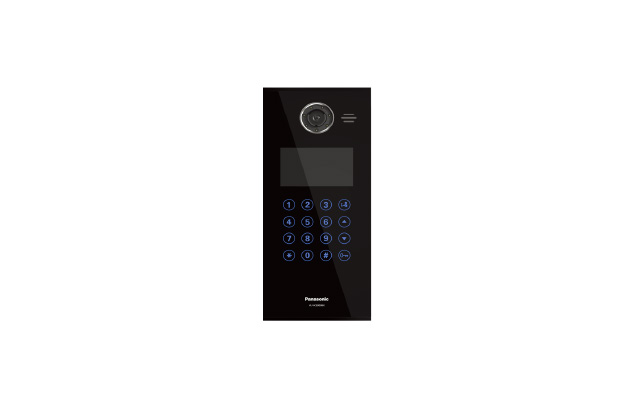

Panasonic IP Video Intercom System Lobby Station VL-VC3900BX

Panasonic IP Video Intercom System
Lobby Station VL-VC3900BX

1. Basic information

· Dimension: Approx. 386mm x 166mm x 52mm

· Color: Black

· External material: AL + Tempered glass

· Operation: Capacitive Touch Keypad

· Installation: Flush mount

2. Features

· 5.5-inch colour display with capacitive touch keypad

· Video intercom: Built-in 2M pixel camera with microphone

· E-lock unlocking function:

- Supports password unlock
- Supports remote unlock from Mobile Apps or Intercom Devices
- Supports QR code unlock
- Temporary QR and password unlock: Can generate from Mobile App for visitors

· Call center: Call to the Guard Station

· Leave message: Visitors can leave voice message.

· Surveillance: Lobby Station video live-stream viewable on Room Monitors, Guard Stations and Mobile Apps

· Elevator access control: Call elevator & Floor Access Control (with 3rd party elevator controller

· Device Removal Alarm: When device is removed, alarm will be sounded, and alert will be sent

· Customized Screen: Able to customize screen saver image

· Ringtone Configuration: Can set the ringtones for outgoing calls

· Web configuration: Engineer can set parameters on webpage

· Connectable to external device: Electric Lock, Door State Sensor, Lock or Fire Release Button and IP elevator controller.

3．Specifications

Panasonic IP Video Intercom System Lobby Station VL-VC3900BX

System Parameters
Operation system	Linux
Flash	16MB
RAM	64MB
Display Parameters
Size	5.5-inch wide colour display
Operation Method	Capacitive Touch Keypad
Resolution	480 x 272
Video Parameters
Video Compression	H.264
Video Pixel	VGA, 720P
Camera Pixel	2.0M pixels CMOS sensor 1/2.7-inch CMOS sensor 3.6mm EFL
Minimum Illuminance Required	0.01lx (within approx. 50cm from the camera lens)
Camera Quantity	Single Camera
HDR	Not Support
Viewing Angle	76°(H) / 50°(V)
Lighting Method	White coloured LED lights
Audio Parameters
Audio Compression	G.711
Speaker	8Ω / 0.5W
Microphone	-56±2dB
Face Recognition
Face Capacity	—
IC Card
Card Capacity	—
Frequency	—
Network Parameters
Wiring	UTP (Cat 5e or higher)
Protocol	IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Device Interfaces
Network Interface	RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X)
Power Out Port	12V, 500mA max
RS485	Reserved
Relay Output	1
Fire Detect Port	1
Lock Release	1
Door Status Port	1
Wiegand Port	—
General
Power Source	Power distributor (VL-PC3800BX) or Power supply unit (Sold separately)
Operating Voltage	12 to 27VDC
Current Rating	DC 12V, 1350mA; DC 27V, 600mA
Power Consumption	Standby: 2.5W, Operating: 3.5W
Installation Method	Flush mount
Colour	Black
Dimensions (H x W x D) (Excluding protruding sections)	Approx. 386mm x 166mm x 52mm
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +70°C
Operating Humidity	Up to 90% (non-condensing)
IP rating (Ingress Protection)	IP54
IK rating (Impact Protection)	IK07
Talking Method	Hands-free
Display Language	English, Chinese, Vietnamese and Indonesian
Motion Detect	Not Supported
External Material	AL + Tempered glass
Weight	Without package: 1600g With package: 3125g
