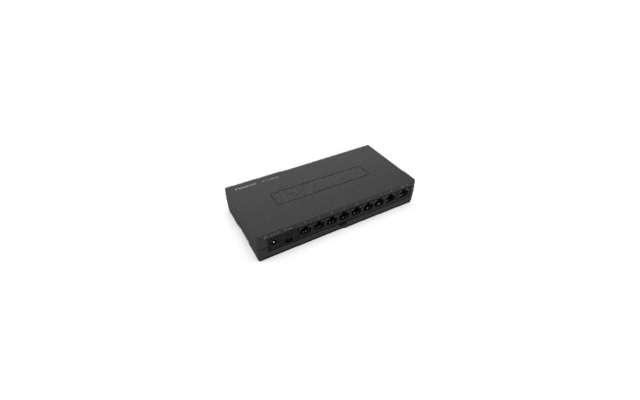

Panasonic IP Video Intercom System
Power Distributor VL-PC3800BX
Network Parameters | |
|---|---|
Wiring | UTP (Cat 5e or higher) |
Device Interfaces | |
Network Interface | RJ45, 10BASE-T/100BASE-TX (Auto MDI/MDI-X) |
General | |
Power Source | Power supply unit (Sold separately) |
Operating Voltage | 18 to 27VDC |
Current Rating | DC 12V, 670mA; DC 27V, 300mA |
Power Consumption | Standby: 0.5W |
Installation Method | DIN-Rail Mounting |
Colour | Dark Grey |
Dimensions (H x W x D) | Approx. 95mm x 200mm x 30mm |
Operating Temperature | -25°C to +70°C |
Storage Temperature | -40°C to +70°C |
Operating Humidity | Up to 90% (non-condensing) |
IP rating (Ingress Protection) | IP30 |
IK rating (Impact Protection) | — |
External Material | ABS |
Weight | Without package: 250g |
