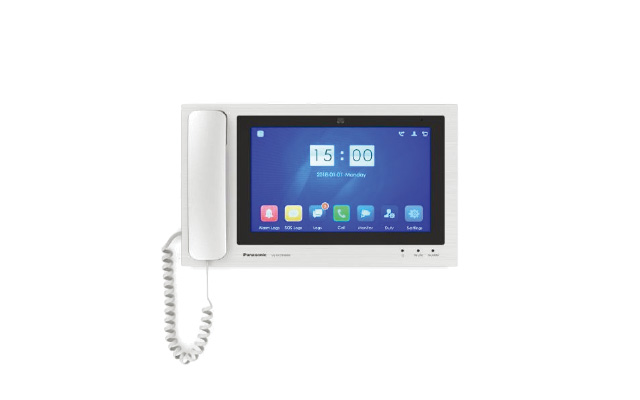

Panasonic IP Video Intercom System Guard Station VL-GC3700BX

· Dimension: Approx. 210mm x 336mm x 34mm

· Colour: Silver colour

· External material: AL + Tempered glass

· Operation: Capacitive touch screen

· Installation: Desktop or Flush mount

· 10.1-inch colour display with capacitive touch screen

· Video intercom: Video & Audio communication

· Remote unlock: Unlock e-lock connected to Outdoor Stations and open door remotely

· SOS/Duress: Receives SOS or other alarm information from Room Monitors

· Emergency Alarm: Sent public emergency alarm to Room Monitors within the same network

· Intercom log: Supports logging of call history

· Image snapshot: Image snapshot of incoming calls from Outdoor Stations

· Surveillance: Monitor authorized Outdoor Stations and IP CCTV cameras

· Video switching: Security personnel can switch live video stream between internal camera and IP CCTV camera to Room Monitors and Mobile Apps

· Call forwarding: When security personnel is engaged, the call can be forwarded to another Guard Station

· Ringtone Configuration: Can set the ringtones for incoming and outgoing calls

· Web configuration: Engineer can set parameters on webpage

System Parameters
Operation system	Linux
Flash	256MB
RAM	1GB
Display Parameters
Size	10.1-inch wide colour display
Operation Method	Capacitive Touch Screen
Resolution	1280 x 800
Video Parameters
Video Compression	H.264
Video Pixel	VGA, 720P
Camera Pixel	1.3M pixels CMOS sensor 1/4-inch CMOS sensor 2.8mm EFL
Camera Quantity	Single Camera
HDR	—
Viewing Angle	73°(H) / 45°(V)
Lighting Method	—
Audio Parameters
Audio Compression	G.711
Speaker	8Ω / 0.5W
Microphone	-54 ± 2dB
Network Parameters
Wiring	UTP (Cat 5e or higher)
Protocol	IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Capacity
Linked IP Camera	24
Text Messages	--
Voice Messages	100
Intercom Logs	100
Alarm Logs	100
Recording	--
General
Power Source	Power distributor (VL-PC3800BX) or Power supply unit (Sold separately)
Operating Voltage	12 to 27VDC
Current Rating	DC 12V, 670mA; DC 27V, 300mA
Power Consumption	Standby: 3.0W, Operating: 8.0W
Installation Method	Desktop / Flush mount
Colour	Silver colour
Dimensions (H x W x D) (Excluding protruding sections)	Approx. 210mm x 336mm x 34mm
Operating Temperature	-10°C to +55°C
Storage Temperature	-40°C to +70°C
Operating Humidity	Up to 90% (non-condensing)
IP rating (Ingress Protection)	IP30
IK rating (Impact Protection)	—
Talking Method	Hands/Hands-free
Display Language	English, Chinese, Vietnamese, Indonesian and Thai
External Material	AL + Tempered glass
Weight	Without package: 2000g With package: 3000g
